LZ008350 Arm/dipper Cylinder Seal Repair Kit fits CNH CX460 CX470B
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
LZ008350 Arm/dipper Cylinder Seal Repair Kit fits CNH CX460 CX470B
Description: LZ008350 seal kit for arm/dipper cylinder compatible for excavator CNH.
| Product name | LZ008350 Arm/dipper Cylinder Seal Repair Kit fits CNH CX460 CX470B |
| Brand | SUNCAR |
| OEM NO. | LZ008350 |
| Compatible models | CNH CX460 CX470B |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Feature |
Higher-toughness/Wear resistance/High&low temperature resistence |
| Function | Prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power. |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Relative brand | Hitachi,Komatsu,SUNCARSUNCARSUNCARSUNCARVOLVO, C-A-T, Kobelco,Sumitomo,Doosan,Daewoo,Hyundai and more. |
| Supply ability | 550 sets per week |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| AppliC-A-Ted equipment | Crawler excavator |
| Original place | Guangdong province,China |
| Loading port | Huangpu port,China |
| Avaliability | In stock |
|
CertifiC-A-Tion |
ISO9001 |
| Payment ways |
Western Union,T/T, Paypal,Bank transfer,Alipay |
| Delivery details | 3-7 days after payment received(Public Holiday Excluded) |
| Equipment type | Loaders, track loaders, slide pins, uni loaders, wheel loaders and more. |
| MOQ | Accept trial order |
| Type | Arm/dipper cylinder seal kit |
| AppliC-A-Tion | CNH Cylinder;Construction machinery spare parts resell store |
|
Standard or nonstandard |
Standard |
| Noted | Items are sold by part number only. Picture is for illustration purposes and the part or parts may be different in color or quantity. |

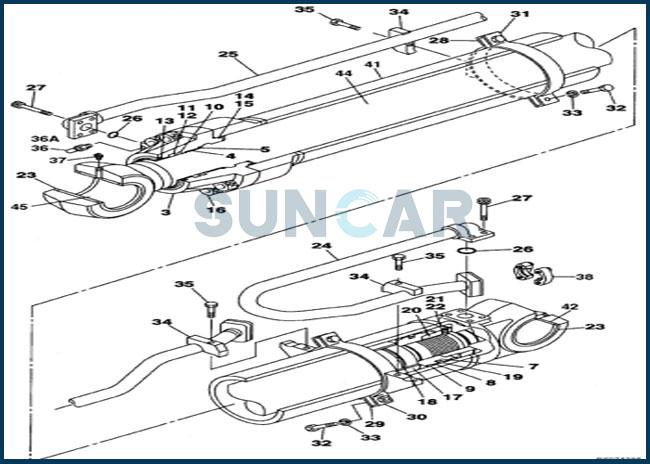

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| . . | KTV10710 | [1] | HYDRAULIC CYLINDER |
| . . | KTV12731 | [1] | HYDRAULIC CYLINDER |
| 3 | LU002220 | [1] | CYLINDER END CAP |
| 4 | LB00460 | [1] | BUSHING |
| 5 | LA00622 | [1] | RING |
| 7 | LJ00988 | [1] | JACK PISTON |
| 8 | LE012480 | [2] | SCRAPER RING |
| 9 | LE00623 | [2] | SEALING STRIP |
| 10 | LE012420 | [1] | RING |
| 11 | LE015220 | [1] | SEALING RING |
| 12 | LE00616 | [1] | BACK-UP RING |
| 13 | LE015230 | [1] | WIPER SEAL |
| 14 | 154877A1 | [1] | O-RING |
| 15 | LE00619 | [1] | BACK-UP RING |
| 16 | 108R030W100N | [8] | BOLT |
| 17 | LE00986 | [1] | BACK-UP RING |
| 18 | LE00620 | [1] | SEAL |
| 18 | LE018360 | [1] | SEAL |
| 19 | LE00621 | [1] | RING |
| 20 | LA00910 | [1] | SPECIAL NUT |
| 21 | LA00617 | [1] | SCREW,Hex Skt |
| 22 | LB00459 | [1] | BALL |
| 23 | LE00948 | [4] | SEAL |
| 24 | LR01136 | [1] | HYD TUBE |
| 25 | LR015640 | [1] | HYD TUBE |
| 26 | 154579A1 | [2] | O-RING |
| 27 | LA00751 | [8] | BOLT,Hex Skt Hd |
| 28 | LD001590 | [1] | MOUNTING CLIP |
| 28 | LD001710 | [1] | CLAMP BRACKET |
| 29 | LD00093 | [1] | CLAMP BRACKET |
| 30 | LD00094 | [1] | CLAMP BRACKET |
| 31 | LD00095 | [1] | CLAMP BRACKET |
| 32 | 828-14050 | [4] | BOLT |
| 33 | 892-16014 | [7] | LOCK WASHER |
| 34 | LS003200 | [3] | HALF-FLANGE |
| 35 | LA00616 | [3] | BOLT |
| 36 | LJ00624 | [1] | BLEEDER |
| 36A. | 154467A1 | [1] | O-RING |
| 37 | 153912A1 | [1] | LUBE NIPPLE |
| 38 | LK005150 | [2] | HALF-FLANGE |
| . . | LR00896 | [1] | HYD CYL SLEEVE |
| 41 | NSS | [1] | NOT SOLD SEPARAT |
| 42 | KTV1125 | [1] | SELF LUB RING |
| . . | LZ008360 | [1] | PISTON ROD |
| . . | LB00948 | [1] | PISTON ROD |
| 44 | NSS | [1] | NOT SOLD SEPARAT |
| 45 | KTV1125 | [1] | SELF LUB RING |
| . . | LZ008350 | [1] | SEAL KIT |
