PX01V00069R300 Boom Cylinder Seal Repair Kit for CNH Excavator CX36B
PX01V00069R300 Boom Cylinder Seal Repair Kit for CNH Excavator CX36B
Description: PX01V00069R300 Boom cylinder seals kits.
| Product name | PX01V00069R300 Boom Cylinder Seal Repair Kit for CNH Excavator CX36B |
| Brand | SUNCAR |
| OEM NO. | PX01V00069R300 |
| Compatible models | CNH CX36B |
| Feature |
Higher-toughness/Wear resistance/High&low temperature resistence |
| Function | Prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power. |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Supply ability | 550 sets per week |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| Original place | Guangdong province,China |
| Loading port | Huangpu port,China |
| Avaliability | In stock |
|
CertifiC-A-Tion |
ISO9001 |
| Payment ways |
Western Union,T/T, Paypal,Bank transfer,Alipay |
| Delivery details | 3-7 days after payment received(Public Holiday Excluded) |
| MOQ | Accept trial order |
| Type | Boom cylinder seal kit |
| Relative brand | C-A-T;HYUNDAI;KOMATSU;SUNCARSUNCARSUNCARSUNCARVOLVO;DOOSAN;JOHN DEERE;KOBELCO etc. |
| AppliC-A-Tion | CNH Cylinder;Construction machinery spare parts resell store |
|
Standard or nonstandard |
Standard |
| Noted | Items are sold by part number only. Picture is for illustration purposes and the part or parts may be different in color or quantity. |
Cylinder Seal Repair Kit:
Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder.
The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the
hydraulic system, to maintain its power.
Boom Cylinder seal kit is, as the name suggests, fitted into the boom cylinder.
There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
Arm cylinder is the top one, and it's usually be called as top cylinder;
The bucket cylinder is the one that connects and controls the bucket.
Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger
excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some
particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.

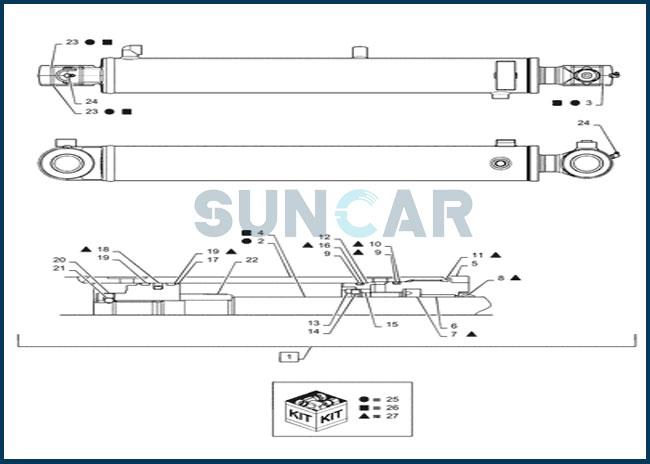

Relative Parts on Group:
| Pos. | Part No | Qty | Parts name |
| 1 | PX01V00069F1 | [1] | HYDRAULIC CYLINDER |
| 2 | NSS | [1] | NOT SOLD SEPARAT |
| 3 | PX01V00043S002 | [2] | BUSHING |
| 4 | NSS | [1] | NOT SOLD SEPARAT |
| 5 | PR01V00033S004 | [1] | CYLINDER HEAD |
| 6 | PX01V00043S019 | [1] | BUSHING |
| 7 | 2438U345S15 | [1] | RING |
| 8 | PH01V00011S006 | [1] | GASKET |
| 9 | ZD12G08000 | [2] | O-RING |
| 10 | PX01V00030S008 | [1] | BACK-UP RING |
| 11 | ZD12G08500 | [1] | O-RING |
| 12 | PX01V00069S011 | [1] | HOLDER |
| 13 | PH01V00014S029 | [1] | SPACER |
| 14 | PH01V00014S011 | [1] | SEAL |
| 15 | PX01V00069S014 | [1] | COLLAR |
| 16 | ZD75G08000 | [1] | BACK-UP RING |
| 17 | PR01V00033S011 | [1] | PISTON |
| 18 | YR01V00003S014 | [1] | SEAL |
| 19 | PR01V00033S013 | [2] | RING |
| 20 | 2438U1057S16 | [1] | SET SCREW |
| 21 | 2436U946S11 | [1] | BALL |
| 22 | PX01V00069S021 | [1] | RING |
| 23 | PR01V00002S027 | [4] | SEAL |
| 24 | PR01V00027S023 | [2] | LUBE NIPPLE |
| 25 | PX01V00069R100 | [1] | REPAIR KIT |
| 26 | PX01V00069R200 | [1] | REPAIR KIT |
| 27 | PX01V00069R300 | [1] | REPAIR KIT |
