PS01V00004R300 Swing Cylinder Seal Repair Kit fits CNH CX55B
PS01V00004R300 Swing Cylinder Seal Repair Kit fits CNH CX55B
Description: PS01V00003R300 swing cylinder seal kit.
| Product name | PS01V00004R300 Swing Cylinder Seal Repair Kit fits CNH CX55B |
| Brand | SUNCAR |
| OEM NO. | PS01V00004R300 |
| Compatible models | CNH CX55B |
| Feature |
Higher-toughness/Wear resistance/High&low temperature resistence |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Function | Prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power. |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Supply ability | 550 sets per week |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| Original place | Guangdong province,China |
| Loading port | Huangpu port,China |
| Avaliability | In stock |
|
CertifiC-A-Tion |
ISO9001 |
| Payment ways |
Western Union,T/T, Paypal,Bank transfer,Alipay |
| Delivery details | 3-7 days after payment received(Public Holiday Excluded) |
| MOQ | Negotiable |
| Type | Swing cylinder seal kit |
| Relative brand | C-A-T;HYUNDAI;KOMATSU;SUNCARSUNCARSUNCARSUNCARVOLVO;DOOSAN;JOHN DEERE;KOBELCO etc. |
| AppliC-A-Tion | CNH Cylinder;Construction machinery spare parts resell store |
|
Standard or nonstandard |
Standard |
| Noted | Items are sold by part number only. Picture is for illustration purposes and the part or parts may be different in color or quantity. |
Our Services:
1. We offer customize services.
2. Competitive price and short lead time.
3. The more quantity you order, the more favorable price we can offer.
4. We have a professional team to provide you with professional services.
5. When quoting, parts will be given weight, specifiC-A-Tion, price, etc.
6. Accept trial order and sample order.
7. All parts can be checked by part number and ordered by part number.
8. Wooden CNHs, cartons, etc can be provided to protect the safe packing of the goods.

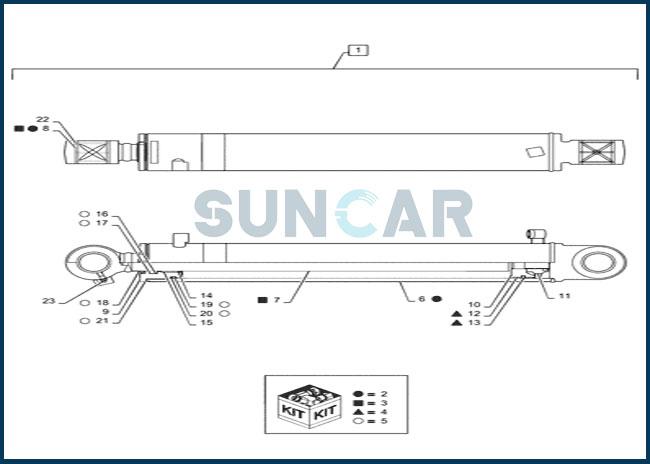

Relative Parts on Group:
| Pos. | Part No | Qty | Parts name |
| 1 | PS01V00004F1 | [1] | HYDRAULIC CYLINDER |
| 2 | PS01V00004R100 | [1] | KIT |
| 3 | PS01V00004R200 | [1] | KIT |
| 4 | PS01V00004R300 | [1] | KIT |
| 5 | PS01V00004R400 | [1] | KIT |
| 6 | NSS | [1] | NOT SOLD SEPARAT |
| 7 | NSS | [1] | NOT SOLD SEPARAT |
| 8 | PH01V00031S003 | [2] | BUSHING |
| 9 | PH01V00031S004 | [1] | CYLINDER HEAD |
| 10 | PS01V00004S005 | [1] | PISTON |
| 11 | PH01V00031S006 | [1] | NUT |
| 12 | PH01V00027S010 | [2] | RING |
| 13 | PH01V00027S011 | [1] | RING |
| 14 | PH01V00027S013 | [1] | RING |
| 15 | PH01V00031S010 | [1] | BUSHING |
| 16 | PH01V00027S015 | [1] | CIRCLIP |
| 17 | PH01V00027S016 | [1] | RING |
| 18 | PH01V00037S023 | [1] | RING |
| 19 | ZD12P08000 | [1] | O-RING |
| 20 | ZD85P08000 | [1] | BACK-UP RING |
| 21 | ZD11G09000 | [1] | O-RING |
| 22 | PH01V00027S021 | [4] | RING |
| 23 | YT01V00035S018 | [1] | FITTING |
