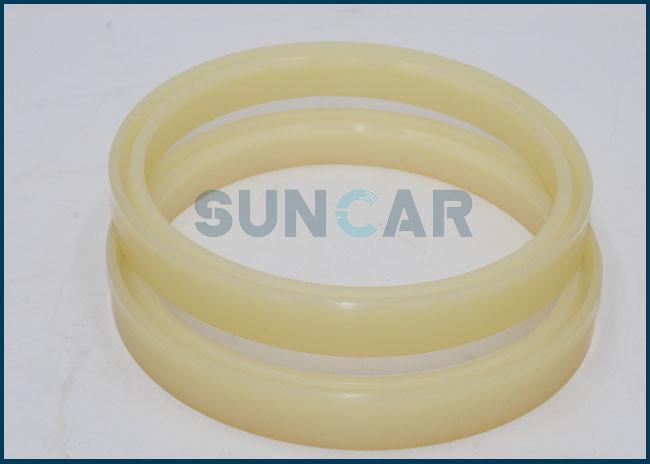

7Y-4670 7Y4670 170-9864 1709864 FU1126F0 IDI Piston Rod Seals
7Y-4670 7Y4670 170-9864 1709864 FU1126F0 IDI Piston Rod Seals
Description: IDI
Piston rod seals are typically single-acting seals, which means that fluid pressure acts from inside
the cylinder on one seal side only. Pressures acting on the rod side of the piston can be in excess of
400 bar (5 800 psi), pressure peaks can be even higher. The pressure acting on the rod seal increases
contact forces between the rod seal and rod surfaces.
| Product name | 7Y-4670 7Y4670 170-9864 1709864 FU1126F0 IDI Piston Rod Seals |
| Brand | SUNCAR |
| Part number | 7Y-4670 7Y4670 |
| Alternative number | 170-9864 1709864 |
| Cross number | FU1126F0 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Feature |
Higher-toughness/Wear resistance/High&low temperature resistence |
| Function | Prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power. |
| Material | PTFE |
| Compatible models | Excavator 320 L 320B 320N 322B 322B LN 325 325 L 325 LN 325B L 325C FM 325D FM 325D FM LL 330 330 FM L 330 L 330B 330B L 330C FM 330C L 345B II 345B L Wheeled Excavator M325B C-A-T |
| Supply ability | 550 sets per week |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| AppliC-A-Ted equipment | Excavator |
| Original place | Guangdong province,China |
| Loading port | Huangpu port,China |
| Avaliability | In stock |
|
CertifiC-A-Tion |
ISO9001 |
| Payment ways |
Western Union,T/T, Paypal,Bank transfer,Alipay |
| Delivery details | 3-7 days after payment received(Public Holiday Excluded) |
| MOQ | Accept trial order |
| Type |
Piston rod seals |
| AppliC-A-Tion | Excavator C-A-T |
|
Standard or nonstandard |
Standard |
Our Hydraulic Seals Products Line:
| Hydraulic seal | Piston seal |
| Rod seal | |
| Rod Buffer seal | |
| Wiper seal | |
| Wear rings | |
| Rotary seal | |
| Oil seal | |
| O-Ring ,O- ring kits | |
| Gasket seal | Gearbox seal ring |
| Gearbox gasket | |
| Gasket seal | |
| Rubber diaphragm | |
| Excavator cuoplings | |
| Valve pusher | |
| Cylinder seal kit | SUNCARSUNCARSUNCARSUNCARVOLVO;HITACHI;JCB;C-A-T;KOMATSU;;SANY;Kobelco |
| Hydraulic kit | Pump seal kit;regulator seal kit;gear pump seal kit;control valve seal kit; |
| Motor seal kit;pilot valve seal kit;center joint seal kit | |
| Hammer seal kit | |
| Transmission kits | |
| Floating seal | |

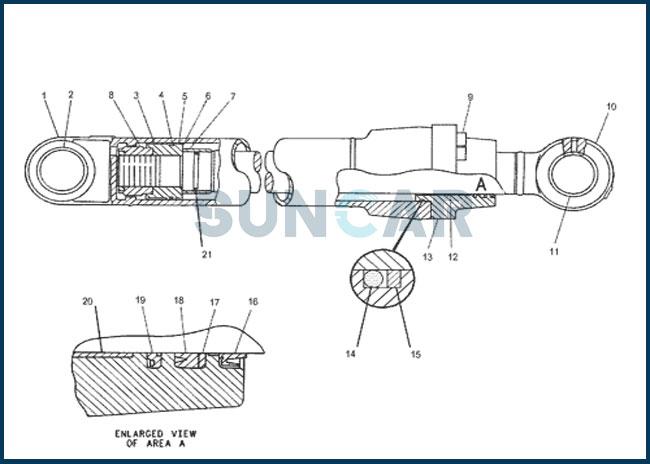

Relative Parts on Group:
| Pos. | Part No | Qty | Parts name |
| 1 | 4I-0723 | [1] | CYLINDER AS |
| 2 | 4I-0862 | [1] | BUSHING |
| 3 | 7Y-4697 J | [1] | RING |
| 4 | 9X-3601 J | [1] | SEAL AS |
| 5 | 096-1581 J | [1] | RING |
| 6 | 7I-7180 | [1] | PISTON |
| 7 | 6I-6798 | [1] | STOP |
| 8 | 7Y-4695 M | [1] | LOCKNUT (M80X2-THD) |
| 9 | 7Y-5215 M | [8] | BOLT-SOCKET HEAD (M24X3X90-MM) |
| 10 | 7Y-4914 | [1] | ROD AS |
| 11 | 7Y-2397 | [1] | BUSHING |
| 12 | 7Y-4672 | [1] | RING-RETAINING |
| 13 | 7Y-4660 | [1] | HEAD |
| 14 | 095-1633 J | [1] | SEAL-O-RING |
| 15 | 7Y-4673 J | [1] | RING-BACKUP |
| 16 | 7Y-4667 J | [1] | SEAL-LIP TYPE |
| 17 | 7Y-4669 J | [1] | RING-BACKUP |
| 18 | 7Y-4670 J | [1] | SEAL-U-CUP |
| 19 | 7Y-4671 J | [1] | SEAL-BUFFER |
| 20 | 093-1828 | [1] | BUSHING |
| 21 | 5I-8516 J | [1] | RING-SEAL |
