China YN15V00037S139 D Ring High Quality For Motor KOBELCO SK210LC-8 for sale

YN15V00037S139 D Ring High Quality For Motor KOBELCO SK210LC-8

Price Negotiable

Price: Negotiable

MOQ: Accept trial order

Delivery Time: 3-7 Days After Payment Received(Public Holiday Excluded)

Brand: SUNCAR

Product Description

YN15V00037S139 D Ring High Quality For Motor KOBELCO SK210LC-8

Description: This seal ring is a tyoe of D ring YN15V00037S139 for KOBELCO

Product name	YN15V00037S139 D Ring High Quality For Motor KOBELCO SK210LC-8
Brand	SUNCAR
Part number	YN15V00037S139
Compatible brand	KOBELCO
Market	North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide
Feature	Sealing oil.
Function	Prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
Material	Steer
Relative brand	DEERE,Hitachi,Komatsu,SUNCARSUNCARSUNCARSUNCARVOLVO, C-A-T, Kobelco,Sumitomo,Doosan,Daewoo,Hyundai and more.
Supply ability	550 sets per week
Transport mode	By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)
AppliC-A-Ted equipment	Excavator KOMATSU
Original place	Guangdong province,China
Loading port	Huangpu port,China
Avaliability	In stock
CertifiC-A-Tion	ISO9001
Payment ways	Western Union,T/T, Paypal,Bank transfer,Alipay
Delivery details	3-7 days after payment received(Public Holiday Excluded)
MOQ	Accept trial order
Type	Cylinder seal ring
AppliC-A-Tion	Excavators, loaders, graders, dump trucks, forklifts, bulldozers, scrapers, mining trucks, cranes, aerial vehicles, garbage transfer vehicle, sliding cars, agricultural machinery, logging equipment, etc.
Highlight	We are serious to have a great business relationship with you and we will await your response with details

We can provide different sizes of steel rings and different types of packaging according to your requirements.

Relative D Ring:

XKAY-00231	4092712
XKAY-00232	D-ring 215*3.5
D-RING-F19	YN1 5V00037S135
D-RING-F22	YN15V00037S139
D-环-F22	4150684
D-RING-F27	4150683
D-RING-F35	4232767
D-RING-F45	4179343
4252401	4181548
4269474

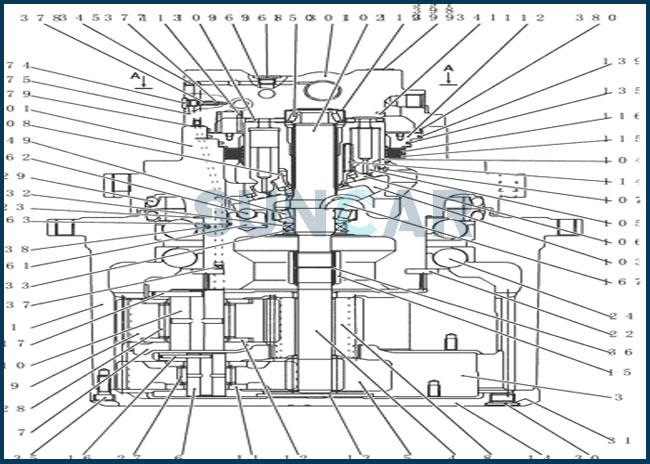

Relative Parts on Group:

Pos.	Part No	Qty	Parts name
. .	YN15V00037F1	[1]	HYDRAULIC MOTOR
. .	YN15V00037F2	[1]	HYDRAULIC MOTOR
. .	YN15V00037F2R	[1]	REMAN-HYD MOTOR
. .	YN15V00037F2C	[1]	CORE-MOTOR HYDRAULIC
1	YN15V00037S001	[1]	HUB
3	YN15V00037S003	[1]	FLANGE
4	YN15V00037S004	[1]	GEAR
5	YN15V00037S005	[3]	GEAR
6	YN15V00037S006	[3]	PIN
7	YN15V00037S007	[1]	GEAR
8	YN15V00037S008	[1]	GEAR
9	YN15V00037S009	[3]	GEAR
10	YN15V00037S010	[3]	PIN
11	YN15V00037S011	[6]	WASHER
12	YN15V00037S012	[6]	WASHER
13	YN15V00037S013	[1]	PLATE
14	YN15V00037S014	[1]	COVER
15	YN15V00037S015	[1]	COUPLING
16	YN15V00037S016	[3]	PIN
17	YN15V00037S017	[3]	PIN
22	YN15V00037S022	[2]	LOCK WASHER
23	YN15V00037S023	[1]	SHIM
24	YN15V00037S024	[2]	BALL BEARING
27	YN15V00037S027	[3]	ROLLER BEARING
28	YN15V00037S028	[3]	ROLLER BEARING
29	YN15V00037S029	[1]	SEAL
30	2441U995S121	[3]	PLUG
31	ZD12P01800	[3]	O-RING
35	ZS23C10035	[18]	SCREW,Hex Socket Head, M10 x 35mm
36	ZR26X03200	[1]	SNAP RING
101	YN15V00037S101	[1]	MANDREL
102	YN15V00037S102	[1]	SHAFT
103	NSS	[1]	NOT SOLD SEPARAT
104	YN15V00037S104	[1]	CYLINDER
105	NSS	[9]	NOT SOLD SEPARAT
106	NSS	[9]	NOT SOLD SEPARAT
107	YN15V00037S107	[1]	PLATE
. .	YN15V00037S098	[1]	PLATE
108	YN15V00037S108	[1]	BALL
. .	YN15V00037S099	[1]	BALL
109	YN15V00037S109	[1]	PLATE
112	YN15V00037S112	[1]	PISTON
113	YN15V00037S113	[8]	SPRING
114	YN15V00037S114	[9]	SPRING
115	YN15V00037S115	[3]	PLATE
116	YN15V00037S116	[4]	PLATE
119	YN15V00037S119	[1]	SHIM
132	YN15V00009S027	[1]	OIL SEAL
133	YN15V00009S019	[1]	RING
135	YN15V00037S135	[1]	RING
137	2436U279S3	[1]	PLUG
138	2436U1749S17	[1]	PLUG
139	YN15V00037S139	[1]	RING
149	YN15V00037S149	[1]	ROLLER BEARING
150	YN15V00037S150	[1]	ROLLER BEARING
161	NSS	[1]	NOT SOLD SEPARAT
162	YN15V00037S162	[1]	BALL
163	NSS	[1]	NOT SOLD SEPARAT
167	NSS	[2]	NOT SOLD SEPARAT
200	YN22V00036F1	[2]	VALVE
301	YN15V00037S301	[1]	FLANGE
323	NSS	[1]	NOT SOLD SEPARAT
324	YN15V00037S324	[2]	PLUG
325	YN15V00037S325	[2]	SEAT
326	NSS	[2]	NOT SOLD SEPARAT
327	NSS	[2]	NOT SOLD SEPARAT
328	NSS	[2]	NOT SOLD SEPARAT
329	YN15V00037S329	[2]	O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro
330	YN15V00037S330	[2]	SPRING
331	NSS	[2]	NOT SOLD SEPARAT
341	YN15V00017S033	[1]	PIN
343	ZS23C16040	[8]	CAPSCREW,Hex Socket Head, M16 x 40mm
345	2436U1427S25	[15]	PLUG
363	YN15V00037S363	[1]	SPOOL
364	2436R874S3	[1]	FLEXIBLE JOINT
365	2436R874S6	[1]	PIN
366	2436R874S7	[1]	SPRING
367	2436R874S5	[1]	SPRING SEAT
368	2436U1317S13	[2]	PLUG
369	ZD12P01100	[2]	O-RING
370	LC15V00023S062	[1]	PLUG
371	ZD12P01400	[2]	O-RING
372	LC15V00023S067	[2]	RESTRICTOR
373	LC15V00023S068	[2]	SPRING
374	YN15V00017S038	[5]	PLUG
375	ZD12P00800	[6]	O-RING,1.9mm Thk x 7.8mm ID, 90 Duro
376	GN15V00010S024	[3]	RESTRICTOR
377	YN15V00017S017	[3]	CHECK VALVE
378	YN15V00017S026	[3]	SPRING
379	ZD12P01600	[1]	O-RING
380	YN15V00037S380	[1]	O-RING
397	2483U254S19	[1]	Name Plate
398	YN15V00037S398	[4]	Rivet
399	YN15V00037S399	[1]	Name Plate
. .	YN15V00037R400	[1]	PISTON
. .	YN15V00037R410	[1]	PISTON
. .	YN15V00037R420	[1]	PLATE
. .	YN15V00037R430	[1]	VALVE
. .	YN15V00037R440	[1]	VALVE
. .	YN15V00037R450	[1]	SEAL KIT
. .	YN15V00037R460	[1]	REPAIR KIT
