418-62-05000 4186205000 Lift Cylinder Seal Repair Kit for WA250-5 WA250-6
418-62-05000 4186205000 Lift Cylinder Seal Repair Kit for WA250-5 WA250-6
Description: 418-62-05000 4186205000 lift cylinder service kit ,compatible for WA250-5 WA250-6.
| Product name | 418-62-05000 4186205000 Lift Cylinder Seal Repair Kit for WA250-5 WA250-6 |
| Brand | SUNCAR |
| Fit brand | KOMATSU |
| OEM number | 418-62-05000 4186205000 |
| AppliC-A-Ted models | KOMATSU WA250-5 WA250-6 |
| Fit Brand | KOMATSU |
| MOQ | Accept trial order |
| Temperature | -40°C ~ 250 °C. |
| Material | PU |
| Material | VMQ |
| Material | ACM |
| Material | NBR |
| Material | Rubber |
| Material | PTFE |
| Material | HNBR |
| Function | Dust proof, Shaft seal,high and low temperature resistance |
| Consist of | Dust seal,back-up ring,wear ring,buffer ring,O-ring |
| Medium | Hydraulic oil, anti-fire fluid, water, gas etc |
| Transport mode | By Air, by Sea, by Express ( FedEx , UPS,DHL,TNT etc.), your forwarder |
| CertifiC-A-Tion | ISO9001 |
| Market | Those in need |
|
Availability |
In stock |
| AppliC-A-Tion |
KOMATSU Wheel loader. |
| Color | Standard color |
| Style |
Komatsu cylinder seal kit |
| Notes | Items are sold by part number only. Picture is for illustration purposes and the part or parts may be different in color or quantity. |
About Seal Kit:
Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder.
The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of
the hydraulic system, to maintain its power.
Boom Cylinder seal kit is, as the name suggests, fitted into the boom cylinder.
There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
Arm cylinder is the top one, and it's usually be called as top cylinder;
The bucket cylinder is the one that connects and controls the bucket.
Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small
excavator under 10-tun; the bigger excavator's two pieces boom cylinders. But there is an exception too when the
driver will remove one piece for a special purpose, say at some particular working place, it is convenient to work
by one cylinder. Soft remind: all refit job should be operated by an experienced technician.

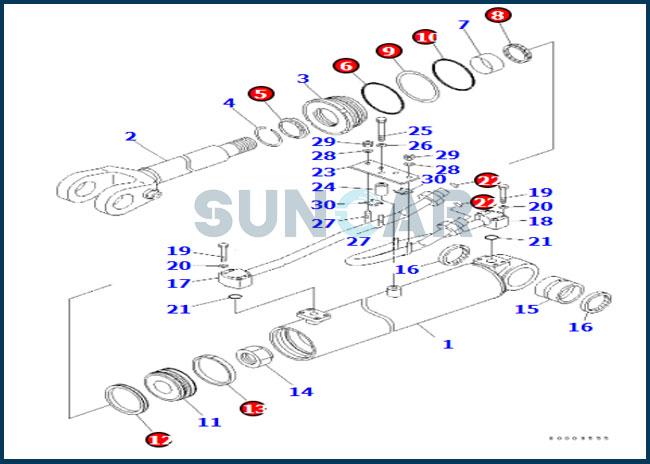

Relative Parts on Group:
| Nos. | Part number | Name | Qty |
| 1 | 418-63-32150 | • CYLINDER | 1 |
| 2 | 418-63-32140 | • ROD | 1 |
| 3 | 418-63-32120 | • HEAD,CYLINDER | 1 |
| 4 | 07179-12084 | • RING,SNAP | 1 |
| 5 | 144-63-95170 | • SEAL,DUST (KIT) | 1 |
| 6 | 07000-12130 | • O-RING (KIT) | 1 |
| 7 | 707-52-10700 | • BUSHING | 1 |
| 8 | 707-51-70030 | • PACKING,ROD (KIT) | 1 |
| 9 | 07146-02126 | • RING,BACK-UP (KIT) | 1 |
| 10 | 07000-12125 | • O-RING (KIT) | 1 |
| 11 | 707-36-13240 | • PISTON | 1 |
| 12 | 707-44-13180 | • RING (KIT) | 1 |
| 13 | 07156-01315 | • RING,WEAR (KIT) | 1 |
| 14 | 07165-15252 | NUT,NYLON | 1 |
| 15 | 418-63-32130 | BUSHING | 1 |
| 16 | 418-09-11110 | SEAL (KIT) | 2 |
| 17 | 418-63-32180 | TUBE | 1 |
| 18 | 418-63-32190 | TUBE | 1 |
| 19 | 01010-81060 | BOLT | 8 |
| 20 | 01643-51032 | WASHER | 8 |
| 21 | 07000-13035 | O-RING | 2 |
| 22 | 02896-11018 | O-RING (KIT) | 2 |
| 23 | 418-63-32260 | PLATE | 1 |
| 24 | 418-63-32250 | SPACER | 1 |
| 25 | 01010-81270 | BOLT | 1 |
| 26 | 01643-31232 | WASHER | 1 |
| 27 | 07283-22738 | CLIP | 2 |
| 28 | 01643-31032 | WASHER | 4 |
| 29 | 01597-01009 | NUT | 4 |
| 30 | 07283-52737 | SEAT | 2 |
| ==================== | |||
| SERVICE KIT | |||
| K | 418-62-05000 | SERVICE KIT,LIFT CYLINDER |
