XKCC-00097 XKCC00097 Dozer Blade Cylinder Seal Kit For HW140 R140W-9
XKCC-00097 XKCC00097 Dozer Blade Cylinder Seal Kit for HW140 R140W-9

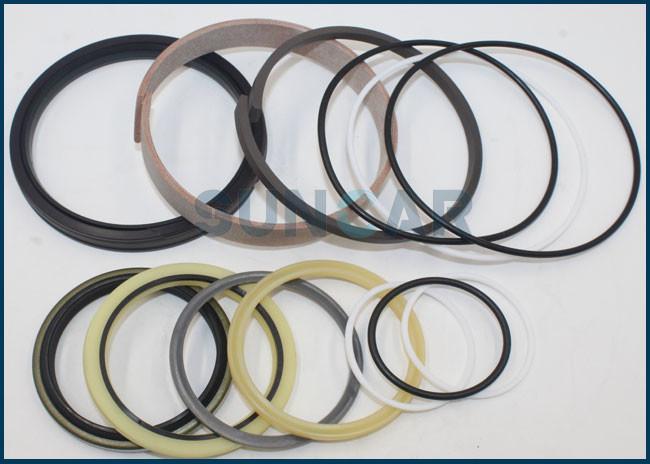

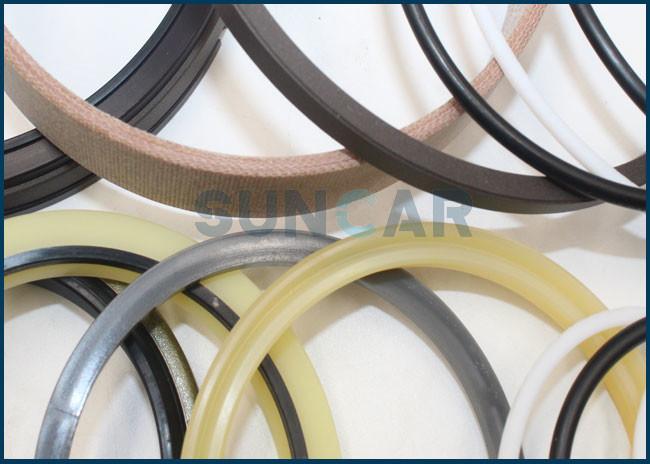

Description: This is dozer balde cylinder seal kit for HYUNDAI machine.
| Product name | XKCC-00097 XKCC00097 Dozer Blade Cylinder Seal Kit for HW140 R140W-9 |
| Brand name | SUNCAR |
| Cylinder part number |
XKCC-00097 XKCC00097 |
| MOQ | Accept trial order |
| Feuture |
Excellent durability and flexibility in using. |
| Payment | Paypal,T/T, Western Union, ,Bank Transfer |
| Paking details | PP bag inside,carton box outside. |
| Loading Port | Huangpu port,China |
| Shopping mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
CertifiC-A-Tion |
ISO9001 |
| Consist of | Dust seal,O-ring,piston rod,wear ring;back-up ring,piston ring |
|
Availability |
In stock |
| Fits equipment | HYUNDAI excavator |
AppliC-A-Ted Models:
| HW140 | R140W-9S | R170W-9S |
| R140W-9 | R160W-9A | R180W-9A |
| R140W-9A | R170W-9 | R180W-9S |
How To Place Order:
1. Inquiry.
2. The sales made an inquiry to the sales manager.
3. Reply.
4. Business negotiation.
5. Make a deal.
6. Make payment.
7. Receice payment.
8. Warehouse department checking and packing the products..
9. Delivery(Your forwarder or we find forwarder by expresss shipping).
10. You receiced the products.
11. After-sale follow up service.
12. Time to reorder.

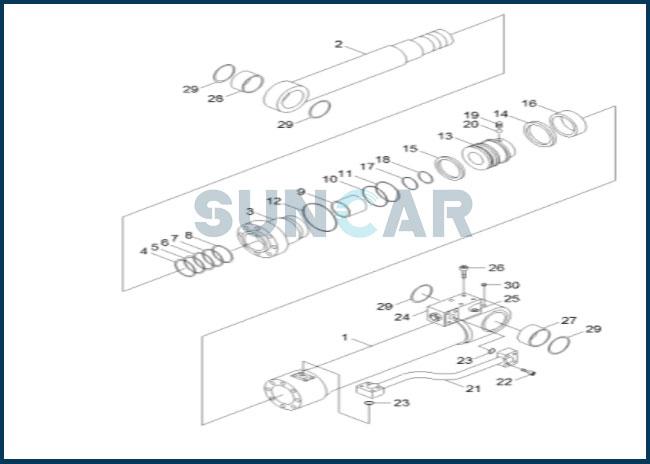

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| *. | 31Q4-70211 | [1] | OUTRIGGER CYL-LH |
| *. | 31Q4-70221 | [1] | OUTRIGGER CYL-RH |
| 1 | XKCC-00075 | [1] | TUBE ASSY |
| 2 | XKCC-00076 | [1] | ROD ASSY |
| 3 | XKCC-01207 | [1] | GLAND |
| K4. | XKCC-00639 | [1] | WIPER-DUST |
| 5 | XKCC-00081 | [1] | RING-RETAINING |
| K6. | XKCC-00640 | [1] | SEAL-ROD |
| K7. | XKCC-00083 | [1] | RING-BACK UP |
| K8. | XKCC-00641 | [1] | RING-BUFFER |
| K9. | XKCC-00085 | [1] | BUSHING-DU |
| K10. | XKCC-00086 | [1] | O-RING |
| K11. | XKCC-00087 | [1] | RING-BACK UP |
| K12. | XKCC-00088 | [1] | O-RING |
| 13 | XKCC-01208 | [1] | PISTON |
| K14. | XKCC-01203 | [1] | SEAL-PISTON |
| K15. | XKCC-00091 | [1] | RING-DUST |
| K16. | XKCC-00858 | [1] | RING-WEAR |
| K17. | XKCC-00057 | [1] | O-RING |
| K18. | XKCC-00058 | [2] | RING-BACK UP |
| 19 | XKCC-00059 | [1] | BALL-STEEL |
| 20 | XKCC-00060 | [1] | SCREW-SET |
| 21 | XKCC-00093 | [1] | PIPE ASSY-LH |
| 21 | H021-35020 | [1] | PIPE ASSY-RH |
| 22 | XKCC-00062 | [8] | BOLT-SOCKET |
| K23. | XKCC-00063 | [2] | O-RING |
| 24 | XKCC-01099 | [1] | CHECK VLV-DOUBLE,LH |
| 24 | XKCC-01101 | [1] | CHECK VLV-DOUBLE,RH |
| K25. | XKCC-00065 | [1] | O-RING |
| 26 | XKCC-00066 | [4] | BOLT-SOCKET |
| 27 | 61Q6-05630 | [1] | BUSHING-PIN |
| 28 | 61Q6-05550 | [1] | BUSHING-PIN |
| K29. | XKCC-00096 | [4] | SEAL-DUST |
| 30 | XKCC-00619 | [1] | PLUG-SOCKET |
| K. | XKCC-00097 | [1] | SEAL KIT |
