ZGAQ-03222 ZGAQ03222 Shaft Seal Combine Oil Seal For HYUNDAI HW210 R210W-9 Front Axle Casing
ZGAQ-03222 ZGAQ03222 Shaft Seal Combine Oil Seal for HYUNDAI HW210 R210W-9 Front Axle Casing

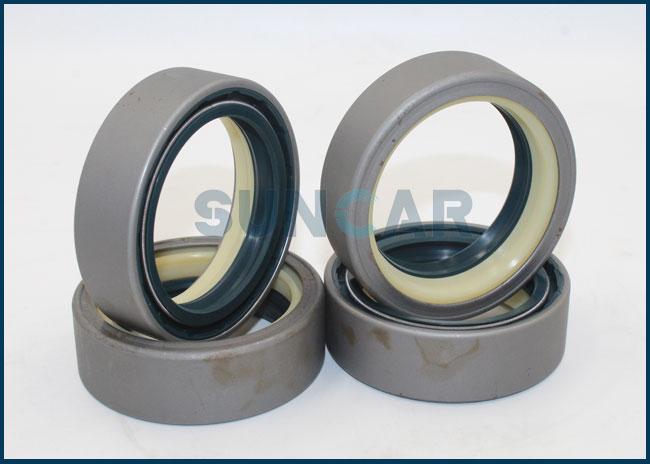

Description:
This is a kind of shaft seal for HYUNDAI front axle casing and front axle joint housing.
| Product name | ZGAQ-03222 ZGAQ03222 Shaft Seal Combine Oil Seal for HYUNDAI HW210 R210W-9 Front Axle Casing |
| Brand name | SUNCAR |
| Cylinder part number |
ZGAQ-03222 ZGAQ03222 |
| Type | Combine oil seal |
| Temp. | NBR(-40~120°C) |
| MOQ | Accept trial order |
| Feuture |
Excellent durability and flexibility in using. |
| Payment | Paypal,T/T, Western Union, ,Bank Transfer |
| Paking details | PP bag inside,carton box outside. |
| Loading Port | Huangpu port,China |
| Shopping mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
CertifiC-A-Tion |
ISO9001 |
| Consist of | Wiper-dust,ring-retaining,seal-rod,ring-back Up,ring-buffer,o-ring,ring-back Up,seal-piston,ring-dust,ring-wear,seal-dust |
|
Availability |
In stock |
| Fits equipment | HYUNDAI |
AppliC-A-Ted Models:
| HW210 | R160W-9A | R170W-7 ; R170W-7A |
| R170W-9 | R170W-9S | R180W-9A |
| R210W-9 | R210W-9A | R210W-9AMH |
| R210W-9S | R210W-9MH | R180W-9S |
How To Place Order:
1. Inquiry.
2. The sales made an inquiry to the sales manager.
3. Reply.
4. Business negotiation.
5. Make a deal.
6. Make payment.
7. Receice payment.
8. Warehouse department checking and packing the products.
9. Delivery(Your forwarder or we find forwarder by expresss shipping).
10. You receiced the products.
11. After-sale follow up service.
12. Time to reorder.
Oil Seal Features:
1). Excellent durability and flexibility of use.
2). The specially designed rope enhances durability and length stability.
3). Excellent heat resistance, oil resistance and abrasion resistance.
4). The display is stable during high-speed rotation.
5). Due to the excellent special frame, heat resistance, oil, fatigue, aging and friction.
6). High power, fast speed, long service life, low distortion and less space.

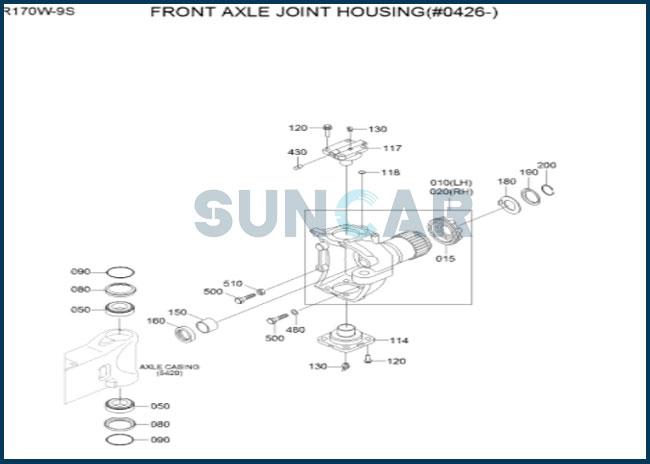

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| 10 | ZGAQ-03587 | [1] | JOINT HOUSING-LH |
| 15 | ZGAQ-02198 | [1] | NUT-SLOTTED |
| 20 | ZGAQ-03588 | [1] | JOINT HOUSING-RH |
| 15 | ZGAQ-02198 | [1] | NUT-SLOTTED |
| 50 | ZGAQ-04469 | [4] | BEARING-ROLLER |
| 80 | ZGAQ-03793 | [4] | CAP-SEALING |
| 90 | ZGAQ-03794 | [4] | O-RING |
| 114 | ZGAQ-03589 | [2] | PIN-BEARING |
| 117 | ZGAQ-03590 | [2] | PIN-BEARING |
| 118 | ZGAQ-01254 | [2] | O-RING |
| 120 | ZGAQ-02260 | [16] | SCREW-HEX |
| 130 | ZGAQ-02261 | [4] | NIPPLE-LUBRIC |
| 150 | ZGAQ-02235 | [2] | BUSHING |
| 160 | ZGAQ-03222 | [2] | SEAL-SHAFT |
| 180 | ZGAQ-02263 | [2] | WASHER-THRUST |
| 190 | ZGAQ-02264 | [2] | WASHER-THRUST |
| 200 | ZGAQ-02265 | [2] | RING-RETAINER |
