707-99-68470 7079968470 Excavator Arm Cylinder Service Kit For PC800-8E0 KOMATSU
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
707-99-68470 7079968470 Excavator Arm Cylinder Service Kit for PC800-8E0 KOMATSU
Description: This is a kind of shaft seal for HYUNDAI front axle casing and front axle joint housing.
| Product name | 707-99-68470 7079968470 Excavator Arm Cylinder Service Kit for PC800-8E0 KOMATSU |
| Brand name | SUNCAR |
| Cylinder part number |
707-99-68470 ; 7079968470 |
| Type | Excavator cylinder seal kit |
| Temp. | NBR(-40~120°C) |
| MOQ | Accept trial order |
| Feuture |
Excellent durability and flexibility in using. |
| Payment | Paypal,T/T, Western Union, ,Bank Transfer |
| Paking details | PP bag inside,carton box outside. |
| Loading Port | Huangpu port,China |
| Shopping mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
CertifiC-A-Tion |
ISO9001 |
| Consist of |
Dust seal;Packing rod;Buffer seal;Dust seal;O ring;Back up ring;Wear ring; Piston ring;O ring. |
|
Availability |
In stock |
| Fits equipment | KOMATSU |
AppliC-A-Ted Models:
| PC800SE-8E0 | PC850-8R1 | PC850SE-8R1 | PC850-8R |
| PC800-8E0 | PC850-8E0 | PC800SE-8R1 | PC850SE-8 |
| PC800LC-8E0 | PC850SE-8E0 | PC800LC-8R1 | PC850SE-8R |

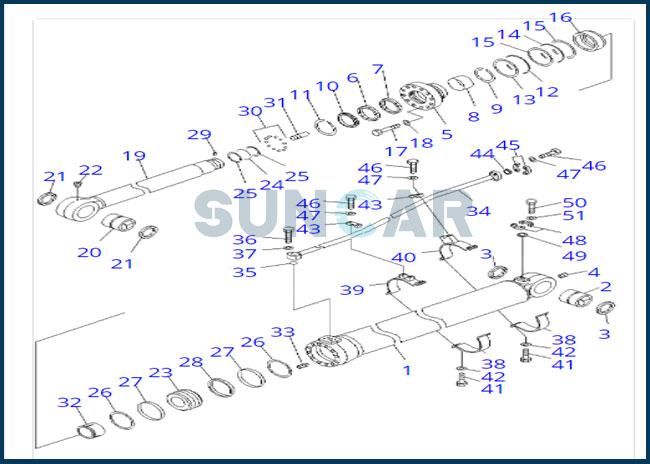

Relative Parts on Group:
| Pos. | Part No | Qty | Parts name |
| G-1. | 707-01-XP241 | [1] | CYLINDER GROUP,L.H. (FINAL COATING) |
| G-2. | 707-01-XP251 | [1] | CYLINDER GROUP,R.H. (FINAL COATING) |
| 707-01-0CC40 | [1] | CYLINDER ASS'Y | |
| 1. | 707-13-18980 | [1] | CYLINDER |
| 2. | 707-76-11130 | [1] | BUSHING |
| 3. | 07145-00110 | [2] | SEAL,DUST (KIT) |
| 4. | 07043-00108 | [1] | PLUG |
| 5. | 707-27-18930 | [1] | HEAD,CYLINDER |
| 6. | 707-51-12030 | [1] | PACKING,ROD (KIT) |
| 7. | 707-51-12650 | [1] | RING,BUFFER (KIT) |
| 8. | 707-52-90981 | [1] | BUSHING |
| 9. | 07179-13126 | [1] | RING,SNAP |
| 10. | 707-56-12740 | [1] | SEAL,DUST (KIT) |
| 11. | 07179-13136 | [1] | RING,SNAP |
| 12. | 07000-15175 | [1] | O-RING (KIT) |
| 13. | 707-35-91840 | [1] | RING,BACK-UP (KIT) |
| 16. | 707-71-32940 | [1] | COLLAR |
| 17. | 01011-82400 | [12] | BOLT |
| 18. | 707-88-75410 | [12] | WASHER |
| 19. | 707-58-12331 | [1] | ROD,PISTON |
| 23. | 707-36-18520 | [1] | PISTON |
| 24. | 07000-B5110 | [1] | O-RING (KIT) |
| 25. | 07001-05110 | [2] | RING,BACK-UP (KIT) |
| 26. | 707-44-18920 | [2] | RING |
| 27. | 707-39-18510 | [2] | RING,WEAR (KIT) |
| 28. | 707-44-18250 | [1] | RING,PISTON (KIT) |
| 29. | 707-71-91230 | [1] | CAP |
| 30. | 04260-00952 | [11] | BALL |
| 31. | 707-71-70330 | [1] | PLUNGER |
| 32. | 707-71-61330 | [1] | PLUNGER |
| 33. | 01310-01225 | [1] | SCREW |
| 34 | 707-86-13480 | [1] | TUBE,L.H. |
| 34 | 707-86-13490 | [1] | TUBE,R.H. |
| 35 | 07000-13035 | [1] | O-RING (KIT) |
| 36 | 07372-21060 | [4] | BOLT |
| 37 | 01643-51032 | [4] | WASHER |
| 38 | 707-88-26620 | [2] | BAND |
| 39 | 707-88-50900 | [1] | BRACKET |
| 40 | 707-88-50890 | [1] | BRACKET |
| 41 | 07372-21250 | [8] | BOLT |
| 42 | 01643-51232 | [8] | WASHER |
| 43 | 707-88-10150 | [2] | CLAMP |
| 44 | 707-88-33050 | [1] | CAP |
| 45 | 07371-51260 | [2] | FLANGE |
| 46 | 01010-81245 | [8] | BOLT |
| 47 | 01643-31232 | [8] | WASHER |
| 48 | 07371-31049 | [1] | FLANGE |
| 49 | 707-88-33040 | [1] | CAP |
| 50 | 07372-21035 | [4] | BOLT |
| 51 | 01643-31032 | [4] | WASHER |
| 707-99-68470 | [2] | SERVICE KIT |
