PSPD55788F Doosan Oil Seal For Main Pump SOLAR 300LC-V SOLAR 300LL
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 days after payment received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
PSPD55788F Doosan Oil Seal for Main Pump SOLAR 300LC-V SOLAR 300LL
Description: Oil seal for DOOSAN Excavator.We have other same brand seal kit,if you need,pls contact us.
Products Details:
| Product name | PSPD55788F Doosan Oil Seal for Main Pump SOLAR 300LC-V SOLAR 300LL |
| Brand | SUNCAR |
| Type | Oil seal. |
| Part number | PSPD55788F |
| Loading port | Huangpu port,China |
| Use in | Excavator; Doosan: Main pump K3V180DT |
| Payment | TT, Paypal , Western Union , Bank transfer |
| Original place | Made in China. |
| Material | NBR |
| Feature | 1. Good oil resistance |
| Feature | 2. Abrasion resistance |
| Temperature | -40 degree to + 125 degree |
| Feature | 3. Good acid resistance |
| MOQ | Accept trial order |
Compatible Models:
| SOLAR 300LC-V | SOLAR 300LL |
| SOLAR 330-III | SOLAR 400LC-III |
| SOLAR 400LC-V | SOLAR 450-III |

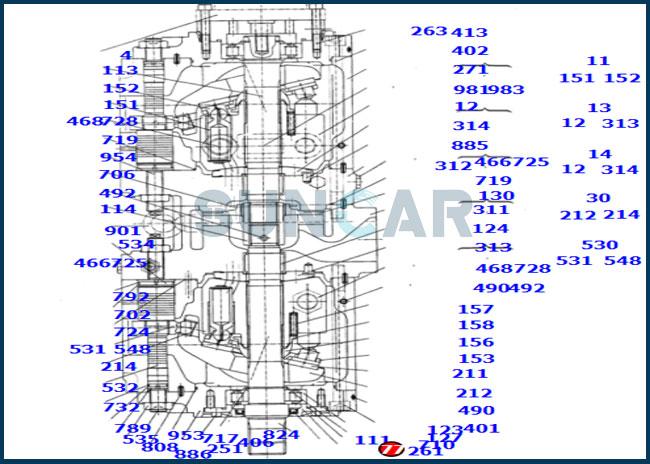

Parts on Group:
| Nos. | Part number | Name | Qty |
| 2401-9263 | MAIN PUMP | 1 | |
| 11 | 3853802466 | PISTON ASS'Y | 2 |
| 151 | 38B00-151 | . PISTON | 18 |
| 152 | 38B00-152 | . SHOE | 18 |
| 530 | 2953801988 | TILTING PIN ASS'Y | 2 |
| 531 | 2943800502 | . PIN;TILTING | 1 |
| 548 | 2953802202 | . PIN;FEED BACK | 1 |
| 14 | 2953802227 | CYLINDER ASS'Y(L.H) | 1 |
| 12 | 2953802067 | . CYLINDER BLOCK | 1 |
| 314 | 2933801023 | . PLATE;VALVE(L) | 1 |
| 13 | 2953802226 | CYLINDER ASS'Y(R.H) | 1 |
| 12 | 2953802067 | . CYLINDER BLOCK | 1 |
| 313 | 2933801022 | . PLATE;VALVE(R) | 1 |
| 30 | 2953801991 | SWASH PLATE ASS'Y | 2 |
| 212 | 2923800908 | . PLATE;SWASH | 2 |
| 214 | P1R222616 | . BUSH;TILTING | 2 |
| 111 | 2933801244 | SHAFT;DRIVE(F) | 1 |
| 113 | 2924250-0008 | SHAFT;DRIVE(R) | 1 |
| 114 | 2943800613 | COUPLING;SPLINE | 1 |
| 123 | PNUP309ET | BEARING;ROLLER | 2 |
| 124 | PRNA6932R | BEARING;NEEDLE | 2 |
| 127 | 2903370-0018 | SPACER;BEARING | 3 |
| 130 | 2933800926 | BOOSTER | 1 |
| 153 | 2943800488 | PLATE;SET | 2 |
| 156 | 2953801840 | BUSH;SPHERICAL | 2 |
| 157 | 2953802061 | SPRING;CYLINDER | 18 |
| 158 | 2953802062 | SPACER | 2 |
| 211 | 371A00AA-124 | PLATE;SHOE | 2 |
| 251 | 2923800906 | SUPPORT | 2 |
| 261 | 2943800518 | COVER;SEAL | 1 |
| 271 | 2923801619 | CASING;PUMP | 2 |
| 311 | 2923801932 | COVER;VALVE(F) | 1 |
| 312 | 2923801934 | COVER;VALVE(R) | 1 |
| 401 | 2953801868 | BOLT;SOCKET | 4 |
| 402 | 2953802438 | BOLT;SOCKET | 4 |
| 406 | OSBM820 | BOLT;SOCKET | 4 |
| 466 | OVP14 | PLUG | 4 |
| 468 | OVP34 | PLUG | 4 |
| 490 | PBP116-2403 | PLUG | 32 |
| 492 | VZ50101400 | PLUG | 5 |
| 532 | 2943800503 | PISTON;SERVO | 2 |
| 534 | 2953801865 | STOPPER(L) | 2 |
| 535 | 2953801864 | STOPPER(S) | 2 |
| 702 | OORBG40W | O-RING | 2 |
| 706 | OORBG60 | O-RING(1BG-60) | 1 |
| 710 | OORBG105 | O-RING(1BG-105) | 1 |
| 717 | PCPP170 | O-RING | 2 |
| 719 | PCPP165 | O-RING | 3 |
| 724 | OORBP8 | O-RING(1BP-8) | 15 |
| 725 | OORBP11 | O-RING(1BP-11) | 10 |
| 728 | OORBP24 | O-RING(1BP-24) | 4 |
| 732 | OORBP21W | O-RING | 2 |
| 774 | PSPD55788F | SEAL;OIL | 1 |
| 789 | PT2SP21 | RING;BACK-UP | 2 |
| 792 | PT2SG40 | RING;BACK-UP | 2 |
| 808 | ORNM20 | NUT | 4 |
| 824 | OSR45 | RING;SNAP | 2 |
| 885 | PJR1014 | PIN;VALVE PLATE | 2 |
| 886 | OSPV614 | PIN;SPRING | 5 |
| 901 | OEBM12 | BOLT;EYE | 2 |
| 953 | PSSSM2035 | SCREW;SET | 2 |
| 954 | 2933300-0017 | SCREW;SET | 2 |
| * | 2401-9165KT | SEAL KIT;BODY+REG. | 1 |
