707-98-37670 7079837670 Boom Cylinder Service Kit For Komatsu PC120 PC120SC PC128US PC128UU PC130 PC150LGP PW128UU PW130
707-98-37670 7079837670 Boom Cylinder Service Kit For Komatsu PC120 PC120SC PC128US PC128UU PC130 PC150LGP PW128UU PW130
Description: Boom cylinder seal kit
Products Details:
| Product name | 707-98-37670 7079837670 Boom Cylinder Service Kit |
| Brand | SUNCAR |
| Type | Oil seal. |
| Part number | 707-98-37670 ; 7079837670 |
| Type | Boom cylinder seal kit |
| Loading port | Huangpu port,China |
| Use in | Excavator; |
| Payment | TT, Paypal , Western Union , Bank transfer |
| Original place | Made in China. |
| Material | NBR |
| Feature | 1. Good oil resistance |
| Feature | 2. Abrasion resistance |
| Temperature | -40 degree to + 125 degree |
| Feature | 3. Good acid resistance |
| MOQ | Accept trial order |
Our product can service in the bulldozer and excavator C-A-T, KOMATSU, HITACHI, SANY, HYUNDAI,
DOOSAN, DEAWOO, LIUGONG,KATO, SUMITOMO,SUNCARSUNCARSUNCARSUNCARVOLVO and KOBELCO.
Pls contact us for further details and the reply will be sent asap.
How To Place Order:
1. Inquiry.
2. The sales made an inquiry to the sales manager.
3. Reply.
4. Business negotiation.
5. Make a deal.
6. Make payment.
7. Receice payment.
8. Warehouse department checking and packing the products.
9. Delivery(Your forwarder or we find forwarder by expresss shipping).
10. You receiced the products.
11. After-sale follow up service.
12. Time to reorder.
AppliC-A-Ted Models:
| PC120-6 | PC120-6E | PC120-6H |
| PC120-6J | PC120-6S | PC120-6Z |
| PC120-6E0 | PC120-6Z | PC120LC-6E0 |
| PC120SC-6 | PC120LC-6 | PC128US-1 |
| PC128UU-2 | PC130-6E | PC130-6G |
| PC130-6K | PC150LGP-6K | PW128UU-1 |

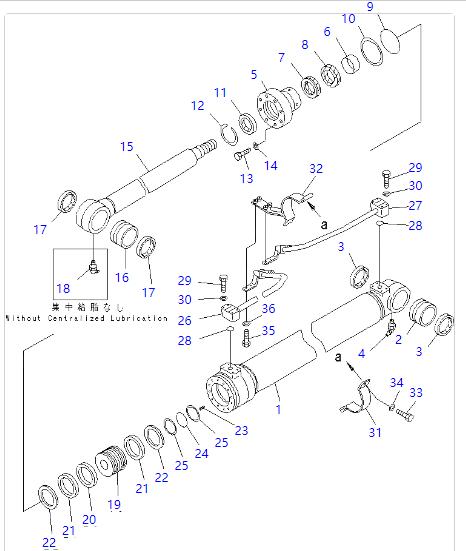

Parts on Group:
| Pos. | Part No | Qty | Parts name |
| G1. | 203-63-X9020 | [1] | CYLINDER GROUP,(L.H.) |
| G1. | 203-63-X2701 | [1] | CYLINDER GROUP,(L.H.) |
| G2. | 203-63-X9030 | [1] | CYLINDER GROUP,(R.H.) |
| G2. | 203-63-X2711 | [1] | CYLINDER GROUP,(R.H.) |
| 203-63-02701 | [2] | CYLINDER ASSY,BOOM | |
| 1. | 203-63-55541 | [1] | CYLINDER |
| 2. | 707-76-70230 | [1] | BUSHING |
| 3. | 07145-00070 | [2] | SEAL,DUST (KIT) |
| 4. | 07020-00675 | [1] | FITTING,GREASE |
| 5. | 707-27-10971 | [1] | HEAD,CYLINDER |
| 6. | 707-52-90470 | [1] | BUSHING |
| 7. | 707-51-70030 | [1] | PACKING,ROD (KIT) |
| 8. | 707-51-70630 | [1] | RING,BUFFER (KIT) |
| 9. | 07000-15095 | [1] | O-RING (KIT) |
| 10. | 707-35-91060 | [1] | RING,BACK-UP (KIT) |
| 11. | 144-63-95170 | [1] | SEAL,DUST (KIT) |
| 12. | 07179-12084 | [1] | RING,SNAP |
| 13. | 01010-81465 | [12] | BOLT |
| 14. | 705-17-04980 | [12] | WASHER |
| 15. | 203-63-55521 | [1] | ROD |
| 19. | 707-36-10571 | [1] | PISTON |
| 20. | 707-44-10280 | [1] | RING,PISTON (KIT) |
| 21. | 707-39-10520 | [2] | RING,WEAR (KIT) |
| 22. | 707-44-10911 | [2] | RING |
| 23. | 01310-01216 | [1] | SCREW |
| 24. | 707-34-60030 | [1] | O-RING (KIT) |
| 25. | 707-35-90730 | [2] | RING,BACK-UP (KIT) |
| 26 | 203-63-55571 | [1] | TUBE,L.H. |
| 26 | 203-63-55671 | [1] | TUBE,R.H. |
| 27 | 202-63-54380 | [1] | TUBE,L.H. |
| 27 | 202-63-54480 | [1] | TUBE,R.H. |
| 28 | 07000-13025 | [2] | O-RING (KIT) |
| 29 | 01010-80850 | [8] | BOLT |
| 30 | 01643-50823 | [8] | WASHER |
| 31 | 707-88-96971 | [1] | BAND |
| 32 | 707-88-95491 | [1] | BRACKET |
| 33 | 01010-81035 | [2] | BOLT |
| 34 | 01643-51032 | [2] | WASHER |
| 35 | 01010-81030 | [4] | BOLT OEM |
| 36 | 01643-31032 | [4] | WASHER |
| 707-98-37670 | [2] | SERVICE KIT |
