423-22-22461 423-22-22460 Oil Seal For KOMATSU HM250 HM300 GH320 WA350 WA380 WA400
423-22-22461 423-22-22460 Oil Seal for KOMATSU HM250 HM300 GH320 WA350 WA380 WA400

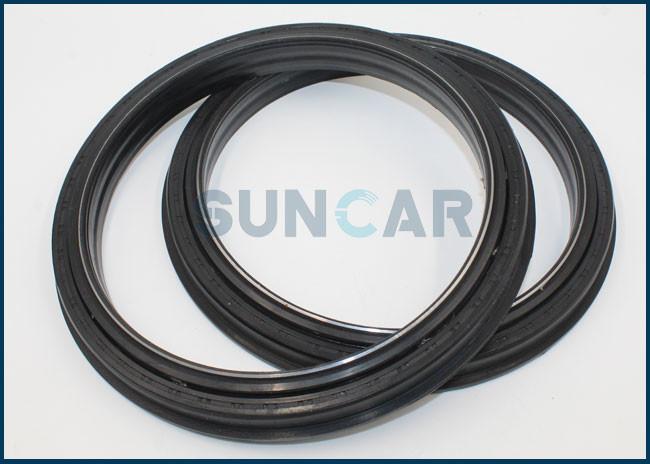

Description: 423-22-22461 Rear Axle Drive oil seal for wheel loader,cross number is 423-22-22460.
| Product name | 423-22-22461 423-22-22460 Oil Seal for KOMATSU HM250 HM300 GH320 WA350 WA380 WA400 |
| Brand | SUNCAR |
| Fit brand | KOMATSU |
| Product number | 423-22-22461 |
| Cross number | 423-22-22460 |
| Fit Brand | KOMATSU |
| MOQ | Accept trial order |
| Compatible equipment | Dump trucks; |
| Temperature | -40°C ~ 250 °C. |
| Material | PU |
| Material | VMQ |
| Material | ACM |
| Material | NBR |
| Material | Rubber |
| Material | PTFE |
| Material | HNBR |
| Function | Dust proof, Shaft seal,high and low temperature resistance |
| Consist of | Dust seal,back-up ring,wear ring,buffer ring,O-ring |
| Medium | Hydraulic oil, anti-fire fluid, water, gas etc |
| Transport mode | By Air, by Sea, by Express ( FedEx , UPS,DHL,TNT etc.), your forwarder |
| CertifiC-A-Tion | ISO9001 |
| Market | Those in need |
|
Availability |
In stock |
| AppliC-A-Tion |
KOMATSU excavators;Consturction machinery repair store;Resell store |
| Color | Standard color |
| Style |
Komatsu oil seal |
| Relative type |
TC TB TCV TCN TCK VC DB DC DCY TC4Y MG WT SC SB DC DB WT WTT MOX MOD MOY TC4 TB4 KC KB TCJ VAJ |
AppliC-A-Ted Models:
| HM250-2 ; | WA380-6 ; | WA430-6 ; | HM300-2 ; |
| WA380-7 ; | WA380Z-6 | WA380-3 | GD755-3 |
| GH320-3 | HM300-2 | WA350-3A | WA380-5 |
| WA380-6 | WA380-3 | WA380-5 | KOMATSU |
How To Place Order:
1. Inquiry.
2. The sales made an inquiry to the sales manager.
3. Reply.
4. Business negotiation.
5. Make a deal.
6. Make payment.
7. Receice payment.
8. Warehouse department checking and packing the products.
9. Delivery(Your forwarder or we find forwarder by expresss shipping).
10. You receiced the products.
11. After-sale follow up service.
12. Time to reorder.
Material Detail:
| Pos. | Part No | Qty | Parts name |
| 56D-22-20002 | [1] | Axle Assembly,Rear | |
| 56D-22-22001 | [1] | Final Drive Assembly | |
| 56D-22-22000 | [1] | Final Drive Assembly | |
| 56D-22-15001 | [2] | Final Drive Assembly | |
| 56D-22-15000 | [2] | Final Drive Assembly | |
| 1 | 56D-22-12440 | [1] | Gear |
| 2 | 56D-22-12430 | [1] | Spacer |
| 3 | 56D-22-12412 | [1] | Shaft |
| 4 | 04064-05520 | [1] | Ring, Snap |
| 5 | 56D-22-12531 | [3] | Gear |
| 6 | 423-22-12811 | [6] | Bearing |
| 7 | 56D-22-12611 | [1] | Carrier |
| 8 | 56D-22-12511 | [3] | Shaft |
| 9 | 07000-13034 | [3] | O-ring |
| 10 | 419-22-12570 | [3] | Pin |
| 11 | 07044-13620 | [1] | Plug |
| 12 | 07002-13634 | [1] | O-ring |
| 13 | 01010-61440 | [23] | Bolt |
| 14 | 01643-31445 | [23] | Washer, Flat |
| 15 | 07000-15335 | [1] | O-ring |
| 16 | 286-22-12630 | [1] | Button |
| 17 | 56D-22-12631 | [1] | Retainer |
| 18 | 56D-22-22340 | [1] | Bearing |
| 19 | 56D-22-12211 | [1] | Retainer |
| 20 | 01010-61250 | [12] | Bolt |
| 21 | 423-22-12260 | [1] | Shim, T=0.05mm |
| 21 | 423-22-12250 | [4] | Shim, T=0.2mm |
| 21 | 423-22-12240 | [4] | Shim, T=0.3mm |
| 21 | 423-22-12230 | [3] | Shim, T=1.0mm |
| 22 | 07040-11409 | [1] | Plug |
| 23 | 07002-11423 | [1] | O-ring |
| 24 | 56D-22-13212 | [1] | Tube |
| 25 | 56D-22-12680 | [1] | Protector |
| 26 | 07000-15140 | [1] | O-ring |
| 27 | 56D-22-12542 | [1] | Gear, Ring |
| 28 | 56D-22-22350 | [1] | Bearing |
| 29 | 56D-22-12340 | [1] | Hub |
| 30 | 423-22-12561 | [6] | Plate |
| 31 | 01010-60820 | [12] | Bolt |
| 32 | 01643-30823 | [12] | Washer |
| 33 | 56D-22-12712 | [1] | Hub |
| 34 | 423-22-22461 | [1] | Seal |
