CA2003343 200-3343 2003343 Main Pump Seal Repair Kit Fits C-A-T E325C
CA2003343 200-3343 2003343 Main Pump Seal Repair Kit fits C-A-T E325C

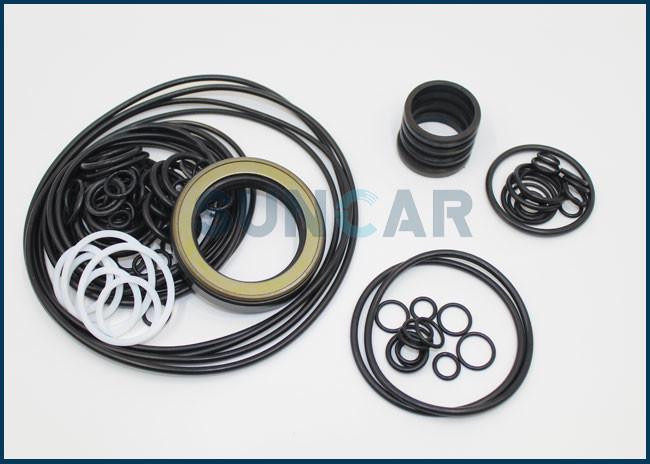

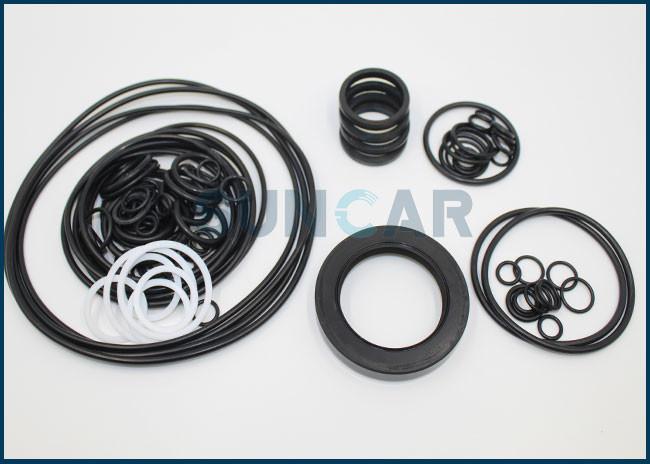

Description: This is set of seal repair kit for main pump.
| Product name | CA2003343 200-3343 2003343 Main Pump Seal Repair Kit fits C-A-T E325C |
| Part number | CA2003343 200-3343 2003343 |
| Brand name | SUNCAR |
| MOQ | Accept trial order |
| Type | Hydraulic pump seal kit |
| Material |
NBR |
| Original place | Made in Taiwan |
| Features | Wear-resistant and extrusion-resistant, providing excellent resistance to compression deformation of seals |
| Medium | Hydraulic oils, mineral hydraulic oils, water and water / glycol emulsion. |
| Condition | 100 % new,brandnew |
| Feature |
High temperature, low temperature, high pressure, low pressure, |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Working temperature | High temperature resistant |
| Size specifiC-A-Tion | Standard size |
| AppliC-A-Tion |
Excavator ; C-A-T Machine . |
| Stock | In rich stock |
| Style |
Hydraulic seal kit |
Our Seal Kit Line:
1. Boom cylinder seal kit
2. Arm cylinder seal kit
3. Bucket cylinder seal kit
4. Blade cylinder seal kit
5. Hydraulic seal kit/Main pump seal kit
6. Regulator seal kit
7. Swing motor seal kit
8. Travel motor seal kit
9. Center joint seal kit
10. Control valve seal kit
11. Track adjuster seal kit
12. Piolve valve seal kit/PPC valve seal kit
13. Foot valve seal kit/PPC travel
14. Pilot pump seal kit
15. Hammer seal kit/Hydraulic breaker seal kit
16. Crankshaft front oil seal
17. Crankshaft rear oil seal
18. Blade lift cylinder kit
19. Blade tilt cylinder kit
20. Blade steering cylinder kit
Parts on Group:
| Pos. | Part No | Qty | Parts name |
| 1 | 4I-1022 | [2] | ORIFICE |
| 2 | 7Y-4215 | [2] | SPACER |
| 3 | 096-3983 | [1] | RING-RETAINING |
| 4 | 096-4389 | [18] | SPRING |
| 5 | 129-7853 | [2] | PLATE |
| 6 | 129-7854 | [1] | CNH |
| 7 | 129-7855 | [1] | GASKET |
| 8 | 129-7857 | [1] | GASKET |
| 9 | 129-7863 | [1] | COVER |
| 10 | 129-7921 | [2] | RING-RETAINING |
| 11 | 129-7925 | [1] | SEAL-LIP TYPE |
| 12 | 129-7927 | [2] | BEARING |
| 13 | 129-7979 | [4] | DOWEL |
| 14 | 150-5782 | [2] | COVER |
| 15 | 173-3427 | [2] | GUIDE-BALL |
| 16 | 177-2470 | [1] | COVER |
| 17 | 177-2471 | [1] | COVER |
| 18 | 177-8740 | [1] | SEAL-O-RING |
| 19 | 179-9763 | [1] | FLANGE |
| 20 | 188-4210 | [2] | PISTON AS |
| 21 | 150-5785 | [4] | DOWEL |
| 22 | 194-8325 | [2] | SET-BEARING |
| 23 | 194-8371 | [1] | BARREL AS (DRIVE) |
| 24 | 194-8374 | [1] | BARREL AS (DRIVEN) |
| 25 | 200-3325 | [1] | SHAFT-DRIVEN |
| 26 | 200-3333 | [1] | HEAD-PUMP |
| 27 | 200-3334 | [1] | COVER |
| 28 | 200-3406 J | [1] | PUMP GP-GEAR |
| 3G-5083 | [1] | SEAL-LIP TYPE | |
| 9T-0836 | [1] | RING-RETAINING | |
| 29 | 200-3413 | [1] | COUPLING |
| 30 | 200-3417 | [1] | SHAFT-DRIVE |
| 31 | 209-5889 Y | [1] | ACTUATOR GP-PUMP (DRIVE) |
| 32 | 209-5890 Y | [1] | ACTUATOR GP-PUMP (DRIVEN) |
| 33 | 194-8397 | [2] | SWASHPLATE AS |
| (EACH INCLUDES) | |||
| 150-5785 | [1] | DOWEL | |
| 173-3428 | [1] | BUSHING | |
| 192-0573 | [2] | PIN-DOWEL | |
| 34 | 177-2583 | [4] | BEARING |
| 35 | 9S-4185 | [2] | PLUG (3/4-16-THD) |
| 36 | 173-3371 | [1] | BODY |
| 37 | 160-4409 | [2] | ORIFICE |
| 38 | 094-1875 | [6] | DOWEL |
| 39 | 094-1882 | [16] | PLUG |
| 40 | 095-0946 | [2] | RING-RETAINING |
| 41 | 095-7419 | [4] | SCREW-DRIVE |
| 42 | 096-3944 | [1] | SEAL-O-RING |
| 43 | 189-9763 | [8] | SEAL-O-RING |
| 44 | 190-4896 | [2] | PLUG |
| 45 | 193-1736 | [4] | SEAL-O-RING |
| 46 | 3K-0360 | [2] | SEAL-O-RING |
| 47 | 7M-8485 | [2] | SEAL-O-RING |
| 48 | 7X-2557 M | [1] | BOLT (M16X2X140-MM) |
| 49 | 8J-4645 | [2] | PLUG (STRAIGHT THREAD O-RING) |
| 50 | 8T-3338 | [2] | SEAL-O-RING |
| 51 | 8T-4136 M | [20] | BOLT (M10X1.5X25-MM) |
| 52 | 8T-4139 M | [10] | BOLT (M12X1.75X30-MM) |
| 53 | 8T-4140 M | [4] | BOLT (M16X2X60-MM) |
| 54 | 8T-4175 M | [2] | BOLT (M16X2X90-MM) |
| 55 | 8T-4176 M | [2] | BOLT (M12X1.75X90-MM) |
| 56 | 8T-4192 M | [10] | BOLT (M12X1.75X25-MM) |
| 57 | 8T-4196 M | [2] | BOLT (M10X1.5X35-MM) |
| AVAILABLE REPAIR KIT(S): | |||
| 204-2792 J | [1] | KIT-SEAL (GEAR PUMP) | |
| J | KIT MARKED J AVAILABLE FOR PART MARKED J | ||
| M | METRIC PART | ||
| Y | SEPARATE ILLUSTRATION |
