707-99-68780 7079968780 Arm Cylinder Service Kit For PC400LC-8 PC400-8
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
707-99-68780 7079968780 Arm Cylinder Service Kit for PC400LC-8 PC400-8
Description:
Arm cylinder seal kit
Advantages:
Longer duration,higher quality.
More reliable performance.
Lower maintenance cost.
Enhancing the international quality.
Exceeding value with the local price.
| Name | 707-99-68780 7079968780 Arm Cylinder Service Kit for PC400LC-8 PC400-8 |
| Type | Arm cylinder seal kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| The appliC-A-Tion and performance | It is rod seal used for cylinder of high-low speed reciproC-A-Ting motion and high-pressure system. The size is stable. It won't effected by temperature, low friction and good corrosion resistance. It can work whether if exist lubriC-A-Tion. The installation is very convenience. It is accord with GB/T 15242.1-94 and GB/T 15242.3-94. |
| Features | Pressure & Oil Resistant |
| Material | 40% bronze filled PTFE / NBR |
AppliC-A-Ted Models:
| PC600LC-7 | PC450LCHD-8 | PC450LC-7K |
| PC490LC-10 | PC450LC-8 | PC450LC-7 |
| PC450-7K | PC450-8 | PC450-7K |
| PC400LC-7E0 | PC400LC-7 | PC400LC-8 |
| PC400-8 | PC240NLC-8K | PC240LC-8K |
| PC550LC-8 | PC450LC-8R | PC450LC-8 |
| PC450-8R | PC450-8 | PC400-8R |
| PC450LC-8 | PC450LC-7K-E0 | PC450LC-8K |

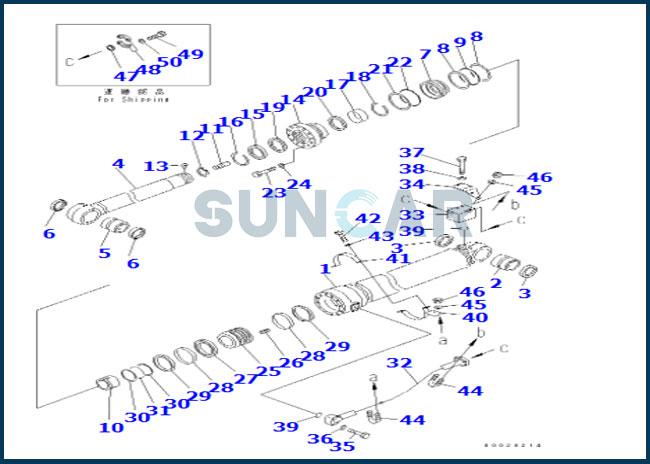

Parts on Groups:
| Nos. | Part No | Qty | Parts name |
| K01. | NFEB1601 | [-1] | Service Kit |
| 205-970-5560 | [1] | O-ring | |
| K02. | 208-32-05080 | [-1] | Shoe Bolt and Nut Kit |
| 208-32-51210 | [30] | Bolt | |
| 208-32-71220 | [30] | Nut | |
| K03. | 208-32-05110 | [-1] | Shoe Bolt and Nut Kit |
| 208-32-51231 | [30] | Bolt | |
| K04. | 208-32-05130 | [-1] | Shoe Bolt and Nut Kit |
| 208-32-51260 | [368] | Bolt | |
| K05. | 707-99-67871 | [-1] | Service Kit, Hydraulic Cylinder |
| 07000-13035 | [2] | O-ring | |
| 07000-15100 | [1] | O-ring | |
| 07000-15150 | [2] | O-ring | |
| 07001-05100 | [2] | Ring, Back-up | |
| 07002-63034 | [1] | O-ring | |
| 07145-00100 | [2] | Seal, Dust | |
| 07145-00110 | [2] | Seal, Dust | |
| 707-35-91640 | [3] | Ring, Back-up | |
| 707-39-16120 | [2] | Ring, Wear | |
| 707-44-16180 | [1] | Ring, Piston | |
| 707-51-11030 | [1] | Packing, Rod | |
| 707-51-11640 | [1] | Ring, Buffer | |
| 707-56-11740 | [1] | Seal, Dust | |
| K06. | 707-99-67091 | [-1] | Service Kit, Hydraulic Cylinder |
| K07. | 707-99-67870 | [-1] | Service Kit, Hydraulic Cylinder |
| K08. | 707-99-68780 | [-1] | Service Kit, Hydraulic Cylinder |
| 07000-15110 | [1] | O-ring | |
| 07000-15175 | [2] | O-ring | |
| 07001-05110 | [2] | Ring, Back-up | |
| 707-35-91840 | [3] | Ring, Back-up | |
| 707-39-18510 | [2] | Ring, Wear | |
| 707-44-18280 | [1] | Ring, Piston | |
| 707-51-12030 | [1] | Packing, Rod | |
| 707-51-12640 | [1] | Ring, Buffer | |
| 707-56-12740 | [1] | Seal, Dust | |
| K09. | 707-99-69710 | [-1] | Service Kit, Hydraulic Cylinder |
| 07000-15120 | [1] | O-ring | |
| 07001-05120 | [2] | Ring, Back-up | |
| 707-51-13030 | [1] | Packing, Rod | |
| 707-51-13640 | [1] | Ring, Buffer | |
| 707-56-13740 | [1] | Seal, Dust | |
| K10. | 707-99-72240 | [-1] | Service Kit, Bucket Cylinder |
| 208-70-73530 | [2] | Seal, Dust | |
| K11. | 707-99-50650 | [-1] | Service Kit, Arm Cylinder |
| 07000-13030 | [1] | O-ring | |
| 07000-15085 | [1] | O-ring | |
| 07000-15130 | [1] | O-ring | |
| 07001-05130 | [1] | Ring, Back-up | |
| 07145-00080 | [2] | Seal, Dust | |
| 707-35-90960 | [2] | Ring, Back-up | |
| 707-39-13530 | [2] | Ring, Wear | |
| 707-44-13280 | [1] | Ring, Piston | |
| 707-51-95030 | [1] | Packing, Rod | |
| 707-51-95640 | [1] | Ring, Buffer | |
| 707-56-95740 | [1] | Seal, Dust | |
| K12. | 707-99-75910 | [-1] | Service Kit, Bucket Cylinder |
| 07000-B5110 | [1] | O-ring | |
| 195-63-93170 | [1] | Seal, Dust | |
| 707-44-18250 | [1] | Ring, Piston | |
| 707-51-12650 | [1] | Ring, Buffer | |
| K13. | 707-99-47800 | [-1] | Service Kit, Cylinder |
| 07000-15080 | [1] | O-ring | |
| 707-35-90940 | [2] | Ring, Back-up | |
| 707-35-91320 | [1] | Ring, Back-up | |
| 707-39-13150 | [2] | Ring, Wear | |
| 707-44-13180 | [1] | Ring, Piston | |
| 707-51-90030 | [1] | Packing, Rod | |
| 707-51-90640 | [1] | Ring, Buffer | |
| 707-56-90740 | [1] | Seal, Dust |
