20T-63-02060 20T6302060 Boom Cylinder Service Kit Fits KOMATSU PC40-6
20T-63-02060 20T6302060 Boom Cylinder Service Kit fits KOMATSU PC40-6
Description: Boom cylinder seal kit
| Name | 20T-63-02060 20T6302060 Boom Cylinder Service Kit fits KOMATSU PC40-6 |
| Type | Boom cylinder seal kit |
| Pressure | 0~60MPa |
| Compatible model | PC40-6 Excavator KOMATSU |
| Part number | 20T-63-02060 ; 20T6302060 |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| The appliC-A-Tion and performance | It is rod seal used for cylinder of high-low speed reciproC-A-Ting motion and high-pressure system. The size is stable. It won't effected by temperature, low friction and good corrosion resistance. It can work whether if exist lubriC-A-Tion. The installation is very convenience. It is accord with GB/T 15242.1-94 and GB/T 15242.3-94. |
| Features | Pressure & Oil Resistant |
| Material | 40% bronze filled PTFE / NBR |
Our Seal Kit Line:
1. Boom cylinder seal kit
2. Arm cylinder seal kit
3. Bucket cylinder seal kit
4. Blade cylinder seal kit
5. Hydraulic seal kit/Main pump seal kit
6. Regulator seal kit
7. Swing motor seal kit
8. Travel motor seal kit
9. Center joint seal kit
10. Control valve seal kit
11. Track adjuster seal kit
12. Piolve valve seal kit/PPC valve seal kit
13. Foot valve seal kit/PPC travel
14. Pilot pump seal kit
15. Hammer seal kit/Hydraulic breaker seal kit
16. Crankshaft front oil seal
17. Crankshaft rear oil seal
18. Blade lift cylinder kit
19. Blade tilt cylinder kit
20. Blade steering cylinder kit
Hydraulic cylinder seal kits: Seals matched to specific appliC-A-Tions for durability and long wear life.

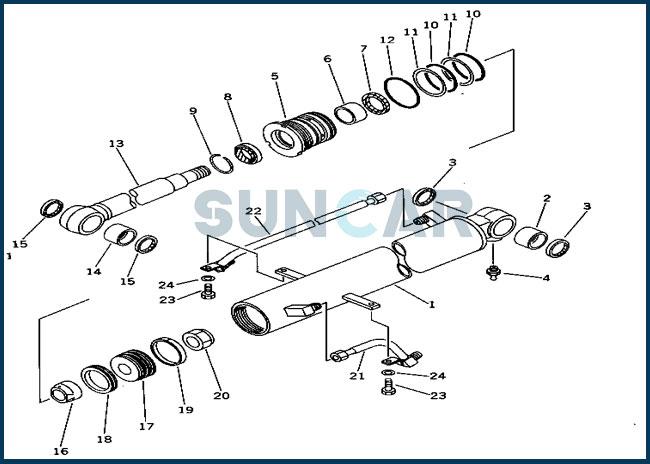

Parts on Groups:
| Nos | Part number | Name | Qty |
| G-1 | 20T-63-X2060 | BOOM CYLINDER GROUP | 1 |
| ==================== | |||
| 20T-63-02060 | CYLINDER ASS'Y,(FOR CANOPY) | 1 | |
| 1 | 20T-63-56940 | • CYLINDER | 1 |
| 2 | 07144-10505 | • BUSHING | 1 |
| 3 | 07145-00050 | • SEAL,DUST | 2 |
| 4 | 07020-00000 | • FITTING,GREASE | 1 |
| 5 | 707-29-90380 | • HEAD,CYLINDER | 1 |
| 6 | 07177-05530 | • BUSHING | 1 |
| 7 | 707-51-55211 | • PACKING,ROD | 1 |
| 8 | 707-56-55510 | • SEAL,DUST | 1 |
| 9 | 07179-12069 | • RING,SNAP | 1 |
| 10 | 07000-12085 | • O-RING | 2 |
| 11 | 07146-02086 | • RING,BACK-UP | 2 |
| 12 | 07000-02090 | • O-RING | 1 |
| 13 | 20T-63-56920 | • ROD,PISTON | 1 |
| 14 | 07143-10505 | • BUSHING | 1 |
| 15 | 07145-00050 | • SEAL,DUST | 2 |
| 16 | 707-71-60670 | • PLUNGER | 1 |
| 17 | 707-36-90260 | • PISTON | 1 |
| 18 | 707-44-90180 | • RING,PISTON | 1 |
| 19 | 07156-00912 | • RING,WEAR | 1 |
| 20 | 07165-13638 | • NUT | 1 |
| 21 | 20T-63-56871 | TUBE | 1 |
| 22 | 20T-63-56881 | TUBE | 1 |
| 23 | 01010-31025 | BOLT | 2 |
| 24 | 01643-31032 | WASHER | 2 |
| ==================== |
