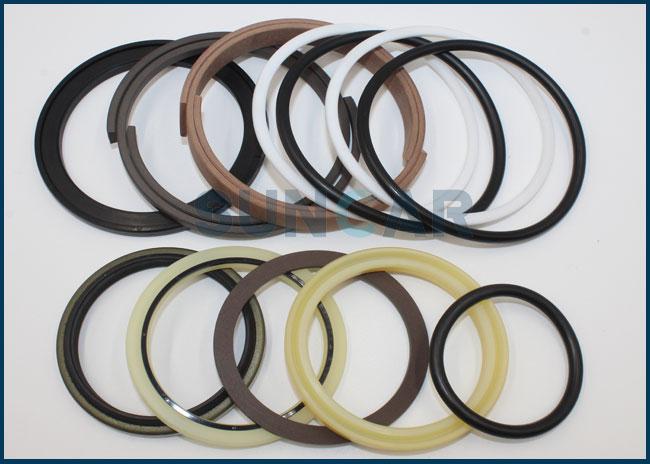

VOE 14589155 VOE14589155 Boom Cylinder Seal Kit for SUNCARSUNCARVOLVO EC135B EC140B
VOE 14589155 VOE14589155 Boom Cylinder Seal Kit for SUNCARSUNCARSUNCARSUNCARVOLVO EC135B EC140B
Description: This is SUNCARSUNCARSUNCARSUNCARVOLVO excavator seal kit for bucket cylinder and dipper cylinder.
| Product name | VOE 14589155 VOE14589155 Boom Cylinder Seal Kit for SUNCARSUNCARSUNCARSUNCARVOLVO EC135B EC140B |
| Brand | SUNCAR |
| Meterial | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Type | Boom cylinder seal kit. |
| Part number |
VOE 14589155 ; VOE14589155 |
| Compatible model | EC135B ; EC140B ; ECR88D ; EC140B SUNCARSUNCARSUNCARSUNCARVOLVO |
| Feature | Durability,Hard-wearing,Higher-toughness |
| Function | Sealing piston |
| MOQ | Accept trial order |
| Payment terms | Bank transfer, T/T, Western Union, Paypal |
| Temperature | -45~+100°C(According to material) |
| Loading Port | Huangpu port,China |
| Compatible brand | Excavator SUNCARSUNCARSUNCARSUNCARVOLVO |
| Shipping mode | By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| After-sale service | Online support |
| Condition | 100 % new |
| Quality | Stable quality, OEM Standard, Genuine / Aftermarket |
Our Advantages:
Our company specialist in spare parts for excavator such brand as: C-A-T, KATO, KOMATSU, HITACHI, SUNCARSUNCARSUNCARSUNCARVOLVO, DOOSAN,
HYUNDAI,KOBELCO, SUMITOMO, SANY, LIUGONG, XUGONG Etc.
And our main products such as: Hydraulic seal,cylinder seal kit,hydraulic kit,hercules kit,transmission kit,face seal,hydraulic
pump seal kit,regulator seal kit,gear pump sea kit,control valve kit,,motor seal kit,pilot valve kit,center joint,piston seals,rod
seals,rod buffer seals,wiper seals,wear rings,rotary seal,oil seal,gasket seal,o-ring and so on.
Advantages:
- Simple,reliabledesign.
- High sealingeffect against dirt,dust,water and abrasive media from the outsideand against oil and grease from the inside.
- Cost-effective.
- Long service life.
- Self-centering tocompensate for shaft eccentricity or misalignment.
- Maintenance-free.

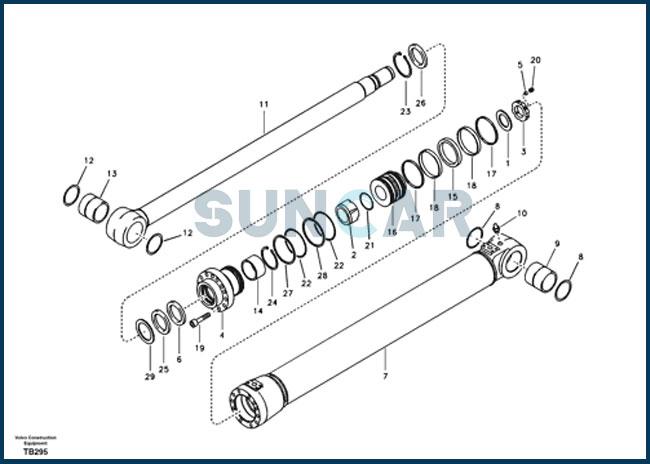

Relative Parts on Group:
| Pos. | Part No | Qty | Parts name |
| VOE14513832 | [2] | Cylinder | |
| 1 | SA9216-04510 | [1] | Lock washer |
| 2 | VOE14501457 | [1] | Cushion |
| 3 | SA1146-06910 | [1] | Lock nut |
| 4 | [1] | Head | |
| 5 | SA1146-06870 | [1] | Pad |
| 6 | SA1146-08170 | [1] | Seal |
| 7 | [1] | Tube | |
| 8 | VOE14503887 | [2] | Seal |
| 9 | VOE14512450 | [1] | Bushing |
| 10 | SA9481-11003 | [1] | Nipple |
| 11 | VOE14514417 | [1] | Piston rod |
| 12 | VOE14503887 | [2] | Seal |
| 13 | VOE14512451 | [1] | Bushing |
| 14 | SA9612-07040 | [1] | Bearing |
| 15 | VOE14512067 | [1] | Seal |
| 16 | [1] | Piston | |
| 17 | SA9568-01050 | [2] | Seal |
| 18 | SA9565-11050 | [2] | Wear ring |
| 19 | VOE13949445 | [12] | Screw |
| 20 | VOE13963059 | [1] | Set screw |
| 21 | VOE990631 | [1] | O-ring |
| 22 | VOE990641 | [2] | O-ring |
| 23 | SA9556-07000 | [1] | Retaining ring |
| 24 | SA9557-06000 | [1] | Retaining ring |
| 25 | SA9563-20701 | [1] | Seal |
| 26 | SA9564-20700 | [1] | Seal |
| 27 | VOE14880826 | [1] | Back-up ring |
| 28 | SA9566-30950 | [1] | Back-up ring |
| 29 | SA9567-20701 | [1] | Back-up ring |
| 100 | VOE14589155 | [1] | Sealing kit |
