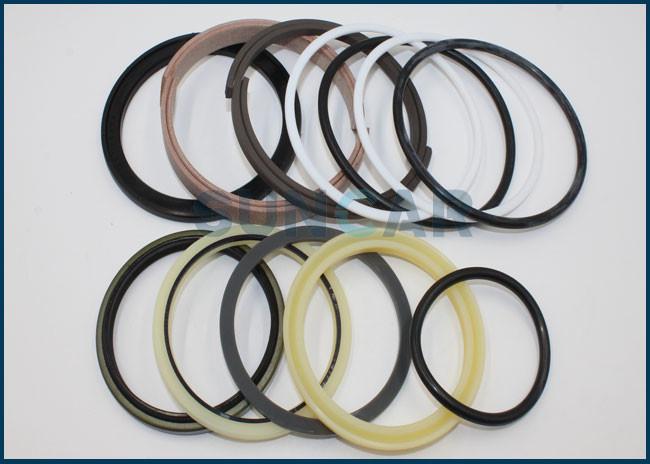

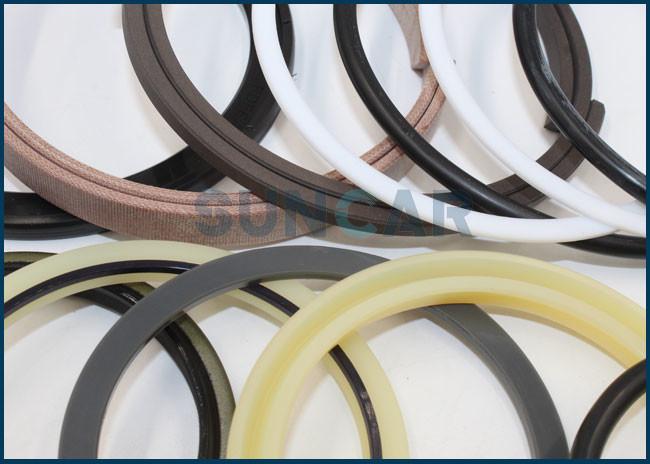

VOE14632918 VOE 14632918 Dipper Arm Cylinder Service Kit For EC180D EC160E
VOE14632918 VOE 14632918 Dipper Arm Cylinder Service Kit for EC180D EC160E
Description:
Hydraulic cylinder seals are used on hydraulic cylinders to prevent hydraulic fluid from leaking and help keep dirt and other contaminants from entering the cylinders. Piston seals prevent fluid from leaving the chamber, which can reduce cylinder effectiveness. Dual rod and piston seals prevent fluid leakage on the rod.
| Product name | VOE14632918 VOE 14632918 Dipper Arm Cylinder Service Kit for EC180D EC160E |
| Brand | SUNCAR |
| Meterial | IDI + HBTS |
| OEM number | VOE14632918 ; VOE 14632918 |
| Feature | Durability,Hard-wearing,Higher-toughness |
| Function | Sealing piston |
| MOQ | Accept trial order. |
| Payment terms | Paypal,T/T, Western Union, Bank transfer. |
| Loading Port | Huangpu port,China |
| Compatible brand | Excavator SUNCARSUNCARSUNCARSUNCARVOLVO |
| Shipping mode | By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| After-sale Service | Online support |
| Con | 100 % new |
| Quality | Stable quality, OEM Standard, Genuine / Aftermarket |
Order Process:
1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term).
2. Quoting our competitive price for you.
3. Place an order after approving the quotation or products.
4. We will send Proforma Invoice or sales confirmation.
5. You prepay by T/T or L/C or Western Union or ESCROW through bank.
6. We will starting to produce after we get your kind payment.
7. Packing.
8. Shipping the goods to your(our)forwarder.
9. Sending all doc for your custom clearance.
10. Time to reorder.

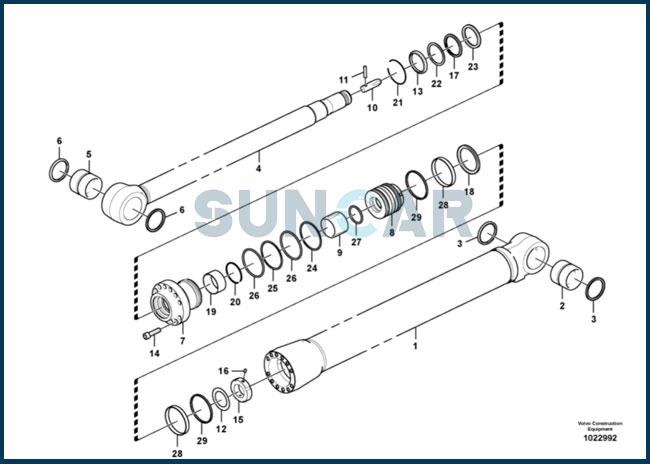

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| VOE14617784 | [1] | Dipper arm cylinder | |
| 1 | VOE14618140 | [1] | Tube |
| 2 | VOE14517943 | [1] | Bushing |
| 3 | VOE14560205 | [2] | Seal |
| 4 | VOE14618125 | [1] | Rod |
| 5 | VOE14517943 | [1] | Bushing |
| 6 | VOE14560205 | [2] | Seal |
| 7 | VOE14625055 | [1] | Head |
| 8 | VOE14557408 | [1] | Piston |
| 9 | VOE14514950 | [1] | Cushion |
| 10 | VOE14518299 | [1] | Cushion |
| 11 | VOE14629351 | [1] | Pin |
| 12 | SA9216-06520 | [1] | Lock washer |
| 13 | SA9564-20850 | [1] | Seal |
| 14 | VOE13949445 | [12] | Screw |
| 15 | VOE14539299 | [1] | Lock nut |
| 16 | VOE14535763 | [1] | Screw |
| 17 | VOE14502458 | [1] | Seal |
| 18 | VOE14512070 | [1] | Seal |
| 19 | SA9612-08040 | [1] | Bearing |
| 20 | SA9557-07500 | [1] | Retaining ring |
| 21 | SA9556-08500 | [1] | Retaining ring |
| 22 | SA9567-20851 | [1] | Back-up ring |
| 23 | SA9563-20850 | [1] | Seal |
| 24 | SA9566-11100 | [1] | Back-up ring |
| 25 | SA9566-31100 | [1] | Back-up ring |
| 26 | VOE990645 | [2] | O-ring |
| 27 | VOE983538 | [1] | O-ring |
| 28 | SA9565-11200 | [2] | Wear ring |
| 29 | SA9568-01200 | [2] | Seal |
| 100 | VOE14632918 | [1] | Sealing kit |
