CA1540766 154-0766 1540766 Arm Cylinder Seal Repair Kit For C-A-T Excavator E325B E325BL

Name: CA1540766 154-0766 1540766 Arm Cylinder Seal Repair Kit For C-A-T Excavator E325B E325BL
Brand: GUANGZHOU SUNCAR SEALS CO.,LTD.

Price Negotiable

Price: Negotiable

MOQ: Accept trial order

Delivery Time: 3-7 Days After Payment Received(Public Holiday Excluded)

Brand: SUNCAR

Product Description

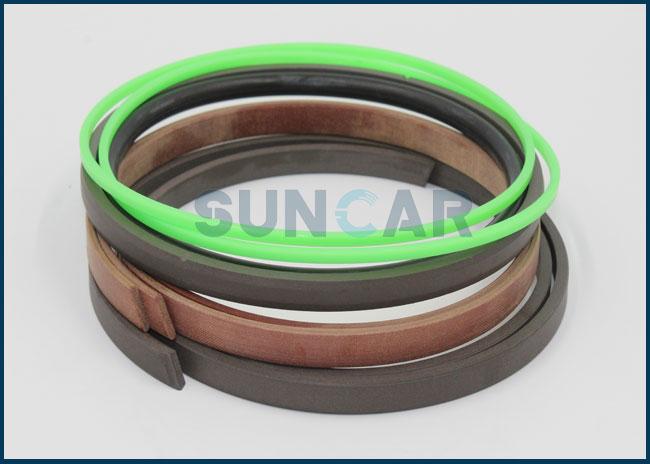

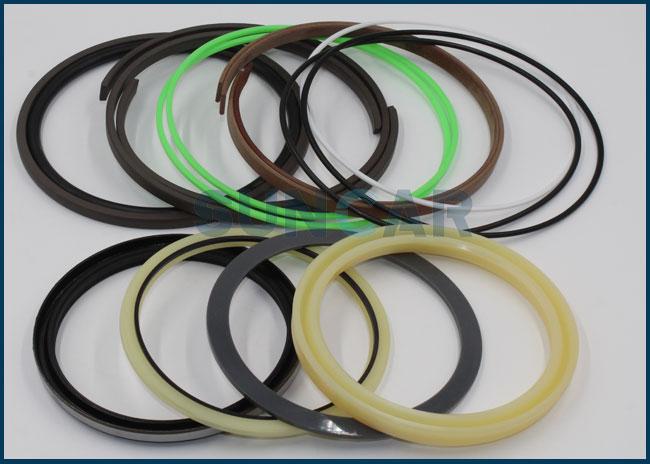

CA1540766 154-0766 1540766 Arm Cylinder Seal Repair Kit for C-A-T E325B E325BL

Description:

This is seal ring for Transmission or gear box Excavators C-A-T.

Product name	CA1540766 154-0766 1540766 Arm Cylinder Seal Repair Kit for C-A-T E325B E325BL
Part number	CA1540766 ; 154-0766 ; 1540766
Brand name	SUNCAR
MOQ	Accept trial order
Material	NBR
Features	Wear-resistant and extrusion-resistant, providing excellent resistance to compression deformation of seals
Medium	Hydraulic oils, mineral hydraulic oils, water and water / glycol emulsion.
Condition	100 % new,brandnew
Feature	High temperature, low temperature, high pressure, low pressure, friction resistance
Transport mode	Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.)
CertifiC-A-Tion	ISO9001
Market	North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide
Working temperature	High temperature resistant
Size specifiC-A-Tion	Standard size
AppliC-A-Tion	Excavator C-A-T; Cylinder.
Stock	In rich stock
Style	Hydraulic cylinder seal kit.

How To Place Order:

1. Inquiry.

2. The sales made an inquiry to the sales manager.

3. Reply.

4. Business negotiation.

5. Make a deal.

6. Make payment.

7. Receice payment

8. Warehouse department checking and packing the products

9. Delivery(Your forwarder or we find forwarder by expresss shipping).

10. You receiced the products.

11. After-sale follow up service.

12. Time to reorder.

Relative Seal Kit Part Numbers:

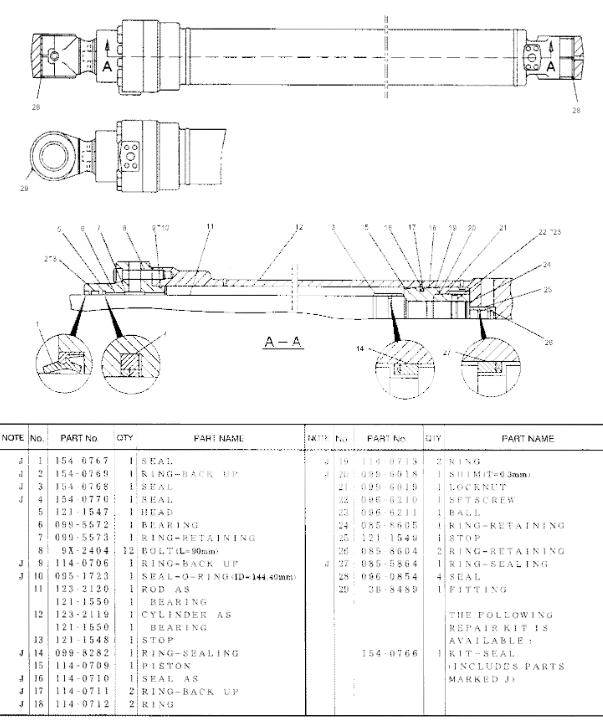

Parts on Group:

Pos.	Part No	Qty	Parts name
1	154-0767 J	[1]	SEAL
2	154-0769 J	[1]	RING-BACK UP
3	154-0768 J	[1]	SEAL
4	154-0770 J	[1]	SEAL
5	121-1547	[1]	HEAD
6	099-5572	[1]	BEARING
7	099-5573	[1]	RING-RETAINING
8	9X-2404	[12]	BOLT (L=90mm)
9	114-0706 J	[1]	RING-BACK UP
10	095-1723 J	[1]	SEAL-O-RING (ID=144.40mm)
11	123-2120	[1]	ROD AS
	121-1550	[1]	BEARING
12	123-2119	[1]	CYLINDER AS
	121-1550	[1]	BEARING
13	121-1548	[1]	STOP
14	099-8282 J	[1]	RING-SEALING
15	114-0709	[1]	PISTON
16	114-0710 J	[1]	SEAL AS
17	114-0711 J	[2]	RING-BACK UP
18	114-0712 J	[2]	RING
19	114-0713 J	[2]	RING
20	099-6018 J	[1]	SHIM (T=0.3mm)
21	099-6019	[1]	LOCKNUT
22	096-6210	[1]	SETSCREW
23	096-6211	[1]	BALL
24	085-8605	[1]	RING-RETAINING
25	121-1549	[1]	STOP
26	085-8604	[2]	RING-RETAINING
27	085-5864 J	[1]	RING-SEALING
28	096-0854	[4]	SEAL
29	3B-8489	[1]	FITTING
			THE FOLLOWING REPAIR KIT IS AVAILABLE:
	154-0766	[1]	KIT-SEAL
			(INCLUDES PARTS MARKED J)
