4391321 Boom Cylinder Service Kit For HITACHI EX750-5 EX800H-5
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

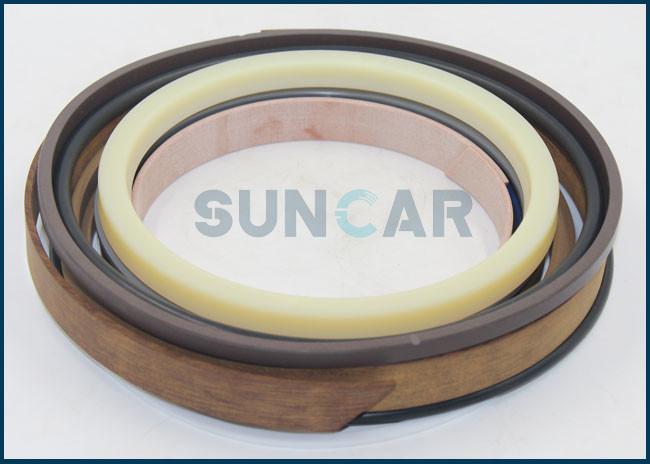

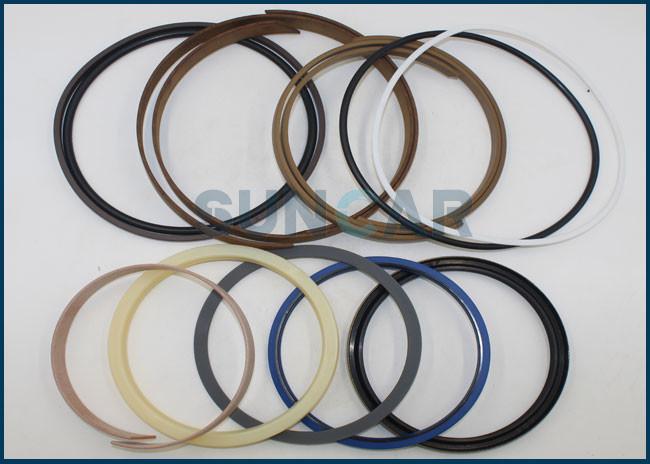

4391321 Boom Cylinder Service Kit for HITACHI EX750-5 EX800H-5
Description: This is boom cylinder seal kit compatible for HITACHI UH083.
| Product name | 4391321 Boom Cylinder Service Kit for HITACHI EX750-5 EX800H-5 |
| Part number | 4391321 |
| Brand name | SUNCAR |
| MOQ | Accept trial order |
| Material |
NBR |
| Features | Wear-resistant and extrusion-resistant, providing excellent resistance to compression deformation of seals |
| Medium | Hydraulic oils, mineral hydraulic oils, water and water / glycol emulsion. |
| Condition | 100 % new,brandnew |
| Feature |
High temperature, low temperature, high pressure, low pressure, |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| Fit models | Excavator HITACHI |
| CertifiC-A-Tion | ISO9001 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Working temperature | High temperature resistant |
| Size specifiC-A-Tion | Standard size |
| AppliC-A-Tion |
HITACHI Machine |
| Stock | In rich stock |
| Style |
Hydraulic boom cylinder seal kit. |
Relative HITACHI Part Numbers:
| 4402383 | 4149077 | 4033544KT |
| 4402384 | 4153203 | 4033545KT |
| 4402387 | 4153205 | 4033546KT |
| 4402388 | 4153207 | 4103693 |
| 4411618 | 4153213 | 4103769 |
| 4415585 | 4153209 | 4103792 |
| 4417399 | 4153211 | 436057 |
| 4418617 | 4266731 | 4286459 |
| 4422494 | 4286463 | 4286739 |
| 4437964 | 4286770 | 4286780 |
| 4437965 | 4304311 | 4364913 |
| 4438672 | 4306444 | 4364914 |
| 4438681 | 4306445 | 4364915 |
| 4441346 | 4306446 | 4364917 |
| 4441347 | 4306765 | 4369718 |
| 4442368 | 4306766 | 4369762 |
| 4448392 | 4391705 | 4369763 |
| 4448393 | 4601911 | 4649049 |
| 4448394 | 4601912 | 4649050 |
| 4448395 | 4601913 | 4649051 |
| 4448398 | 4601914 | 4649053 |
| 4448400 | 4601915 | 4649745 |
| 4461720 | 4617889 | 4649751 |
| 4465493 | 4618229 | 4649752 |
| 4465644 | 4652905 | 4650419 |

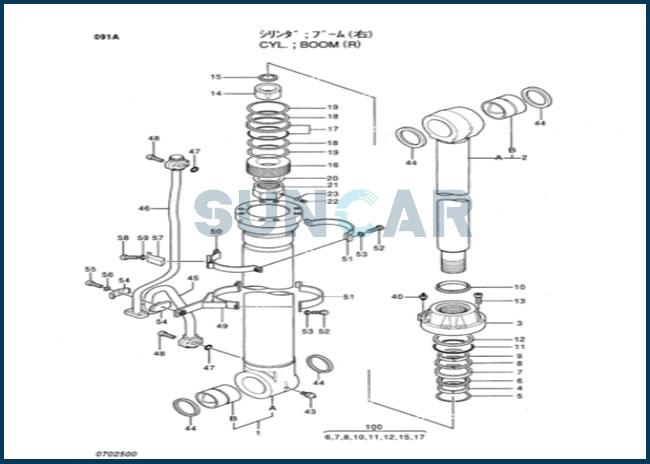

Parts on Group:
| Pos. | Part No | Qty | Parts name |
| 4331075 | [1] | CYL.;BOOM | |
| 1-44. | 4391320 | [1] | CYL.(PIPELESS) |
| 1 | 4391318 | [1] | TUBE;CYL. |
| 1A. | +++++++ | [1] | TUBE;CYL. |
| 1B. | 702501 | [1] | BUSHING |
| 2 | 4391319 | [1] | ROD;PISTON |
| 2A. | +++++++ | [1] | ROD;PISTON |
| 2B. | 444801 | [1] | BUSHING |
| 3 | 645004 | [1] | HEAD;CYL. |
| 4 | 379806 | [1] | BUSHING |
| 5 | 191415 | [1] | RING;RETAINING |
| 6 | 417405 | [1] | RING |
| 7 | 4094949 | [1] | PACKING;U-RING |
| 8 | 242505 | [1] | RING;BACK-UP |
| 9 | 417406 | [1] | RING;SLIDE |
| 10 | 242506 | [1] | RING;WIPER |
| 10 | 4438196 | [1] | RING;WIPER |
| 11 | A811190 | [1] | O-RING |
| 12 | 257007 | [1] | RING;BACK-UP |
| 13 | 4104472 | [8] | BOLT;SOCKET |
| 14 | 702502 | [1] | BRG.;CUSHION |
| 15 | 645006 | [1] | SEAL;CUSHION |
| 16 | 702503 | [1] | PISTON |
| 17 | 257010 | [1] | RING;SEAL ASSY |
| 18 | 645008 | [2] | RING;SLIDE |
| 19 | 4199817 | [2] | RING;SLIDE |
| 20 | 379813 | [1] | SHIM |
| 21 | 379814 | [1] | NUT |
| 22 | 379815 | [1] | SCREW;SET |
| 23 | 109124 | [1] | BALL |
| 40 | 643016 | [1] | BLEEDER;AIR |
| 43 | 380010 | [1] | FITTING |
| 44 | 4251767 | [4] | RING;WIPER |
| 45 | 492603 | [1] | PIPE |
| 46 | 444803 | [1] | PIPE |
| 47 | 955612 | [2] | O-RING |
| 48 | 171719 | [8] | BOLT;SOCKET |
| 49 | 379703 | [1] | BAND |
| 50 | 379819 | [1] | BAND |
| 51 | 379820 | [2] | BAND |
| 52 | 408815 | [4] | BOLT |
| 53 | 325913 | [4] | WASHER |
| 54 | 379821 | [2] | CLAMP;PIPE |
| 55 | 417614 | [1] | BOLT |
| 56 | 168014 | [1] | WASHER;SPRING |
| 57 | 353016 | [1] | CLAMP;PIPE |
| 58 | 254312 | [1] | BOLT |
| 59 | A590914 | [1] | WASHER;SPRING |
| 61 | 379823 | [2] | PLUG |
| 62 | 985098 | [2] | O-RING |
| 100 | 4391321 | [1] | KIT;SEAL |
| 100 | 4438684 | [1] | KIT;SEAL |
