31Y1-20450 31Y120450 Boom Cylinder Seal Repair Kit For HYUNDAI R160LC-7 R170W-7 R170W-7A R180LC-7
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

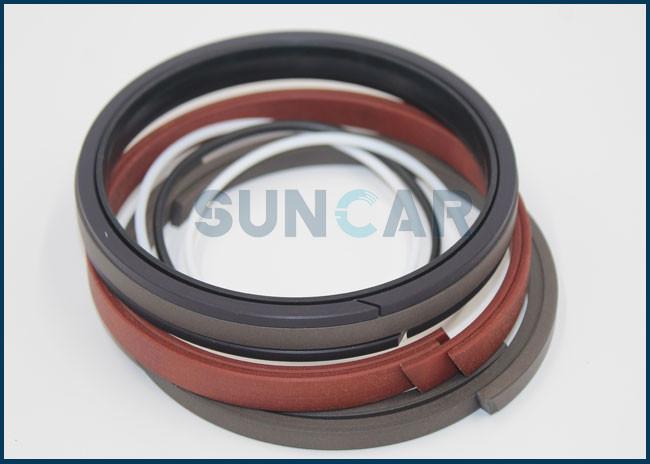

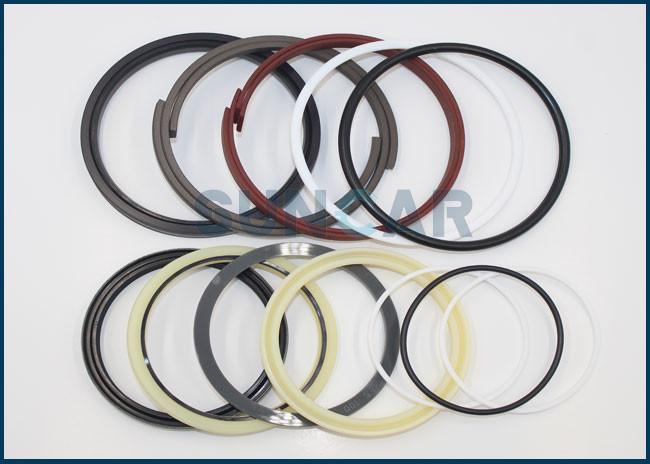

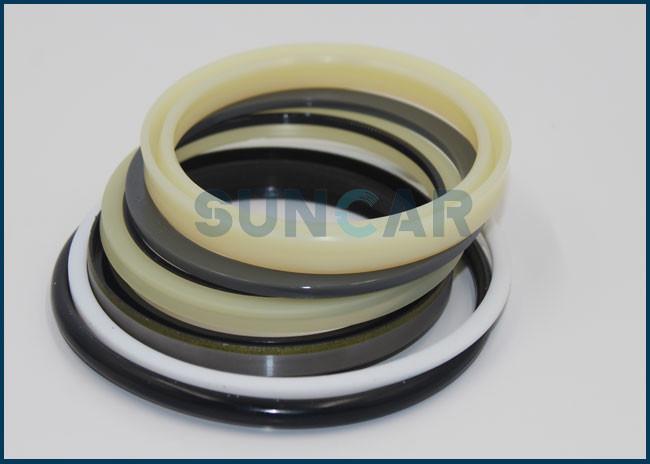

31Y1-20450 31Y120450 Boom Cylinder Seal Repair Kit for HYUNDAI R160LC-7 R170W-7 R170W-7A R180LC-7
Description: This is a set of seal kit for SUNCARSUNCARSUNCARSUNCARVOLVO.
| Product name | 31Y1-20450 31Y120450 Boom Cylinder Seal Repair Kit for HYUNDAI R160LC-7 R170W-7 R170W-7A R180LC-7 |
| Brand | SUNCAR |
| Meterial | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Type | Hydraulic cylinder seal kit |
| Part number |
31Y1-20450 ; 31Y120450 |
| Feature | Durability,Hard-wearing,Higher-toughness |
| Compatible model |
HYUNDAI R160LC-7 R160LC-7A R170W-7 R170W-7A R180LC-7 R180LC-7A |
| Function | Sealing piston |
| MOQ | Accept trial order |
| Payment terms | Bank transfer, T/T, Western Union, Paypal |
| Temperature | -45~+100°C(According to material) |
| Loading Port | Huangpu port,China |
| Compatible brand | Excavator HYUNDAI |
| Shipping mode | By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| After-sale service | Online support |
| Condition | 100 % new |
| Quality | Stable quality, OEM Standard, Genuine / Aftermarket |
Parts on Group:
| Pos. | Part No | Qty | Parts name |
| *. | 31N5-50131 | [1] | CYLINDER ASS'Y |
| *-1. | 31Y1-20200 | [1] | ARM CYL SUB ASSY |
| 1 | 31Y1-20210 | [1] | TUBE ASSY |
| 2 | 31Y1-23200 | [1] | ROD ASSY |
| N2-3. | @ | [1] | SPEAR-CUSHION |
| N2-4. | @ | [1] | RING-STOP |
| 3 | 31Y1-15800 | [1] | GLAND |
| 4 | S732-085030 | [1] | BUSHING-DU |
| 5 | Y191-092000 | [1] | RING-SNAP |
| K6. | Y220-085011 | [1] | SEAL-ROD |
| K7. | Y180-085020 | [1] | RING-BACK UP |
| K8. | Y240-085013 | [1] | RING-BUFFER |
| K9. | Y110-085011 | [1] | WIPER-DUST |
| 10 | Y190-099000 | [1] | RING-SNAP |
| K11. | S631-110004 | [1] | O-RING |
| K12. | S641-110003 | [1] | RING-BACK UP |
| 13 | 31YC-23020 | [1] | RING-CUSHION |
| 14 | 31Y1-04290 | [1] | PISTON |
| K15. | S632-075004 | [1] | O-RING |
| K16. | S642-075003 | [2] | RING-BACK UP |
| K17. | Y420-120000 | [1] | SEAL-PISTON |
| K18. | Y310-120203 | [2] | RING-WEAR |
| K19. | Y440-120000 | [2] | RING-DUST |
| 23 | 31YC-61060 | [1] | NUT-LOCK |
| 24 | S109-160804 | [12] | BOLT-SOCKET |
| 31 | 31YC-11081 | [2] | BUSHING-PIN |
| 32 | Y000-070200 | [4] | SEAL-DUST |
| 25 | 31Y1-04300 | [1] | BAND ASSY-R |
| 25-1. | 31Y1-04310 | [1] | BAND SUB ASS'Y |
| 25-2. | 31YC-31080 | [1] | BAND |
| 25-3. | S071-022730 | [1] | U-BOLT |
| 25-4. | S011-100352 | [2] | BOLT-HEX |
| 25-5. | S201-101002 | [2] | NUT-HEXAGON HEAD |
| 25-6. | S411-100002 | [4] | WASHER-SPRING |
| 26 | 31Y1-22720 | [1] | BAND ASSY-B |
| 26-1. | 31Y1-04330 | [1] | BAND SUB ASS'Y |
| 26-2. | 31Y1-22730 | [1] | BAND SUB ASS'Y |
| 26-3. | 31YC-31080 | [1] | BAND |
| 26-4. | 31YC-32030 | [1] | BAND |
| 26-5. | S071-022730 | [2] | U-BOLT |
| 26-6. | S011-100352 | [2] | BOLT-HEX |
| 26-7. | S201-101002 | [2] | NUT-HEXAGON HEAD |
| 26-8. | S411-100002 | [6] | WASHER-SPRING |
| 27 | 31Y1-20441 | [1] | PIPE ASSY-R |
| 28 | 31Y1-20371 | [1] | PIPE ASSY-B |
| K29. | Y171-019004 | [2] | O-RING |
| 30 | S107-100454 | [8] | BOLT-SOCKET HEAD |
| K. | 31Y1-20450 | [1] | SEAL KIT |
| N. | @ | [AR] | NOT INDIVIDUALLY SUPPLIED |
