31Y1-28790 31Y128790 Arm Cylinder Seal Repair Kit For HW210 HX220L R220NLC-9A R235LCR-9
Price:
Negotiable
MOQ:
10 Sets；Accept trail order.
Delivery Time:
3-7 days after payment received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

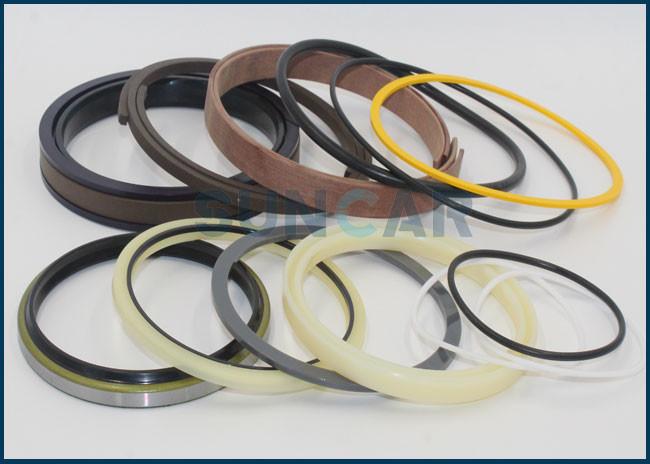

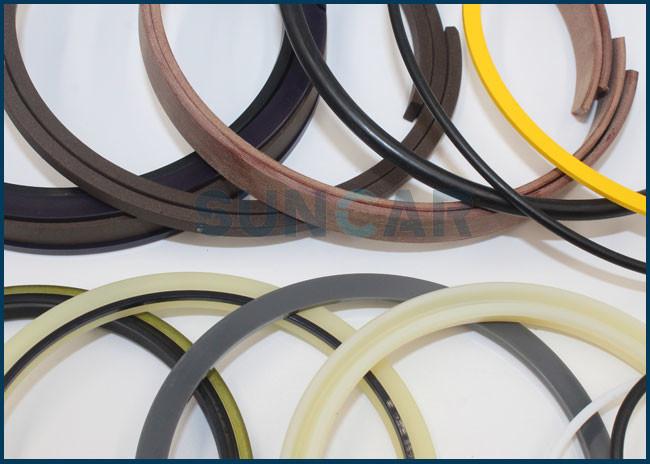

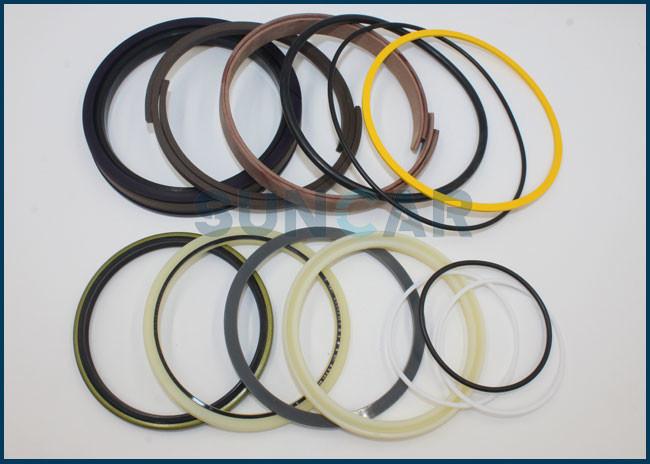

31Y1-28790 31Y128790 Arm Cylinder Seal Repair Kit for HW210 HX220L R220NLC-9A R235LCR-9
Description: Arm cylinder seal kit.
|
Product name |
31Y1-28790 31Y128790 Arm Cylinder Seal Repair Kit for HW210 HX220L R220NLC-9A R235LCR-9 |
|
Brand name |
SUNCAR |
| Part number | 31Y1-28790 ; 31Y128790 |
| Compatible brand | HYUNDAI |
|
Shipping mode |
By air, by sea, by express |
| Relative brand | Komatsu, Hitachi, Sumitomo, Doosan, Daewoo, Hyundai, C-A-Terpillar, SUNCARSUNCARSUNCARSUNCARVOLVO, Kato, Samsung, Liebherr, Mitsubishi, etc. |
| Express | FedEx , UPS,DHL,TNT etc. |
| Fit equipment | Excavator |
|
Stock |
Have enough stock for selling |
| Temperature | -35 ~ 220 ℃ |
| Payment |
Western Union, L/C, T/T, Money Gram, D/A, D/P,Paypal,Bank Transfer |
|
Feature |
Oil-resistant, heat-resistant, durable |
| Sale market | The people in need |
| Function | Control walking and play buffer role when buffering |
| Supply ability | 550 sets per week |
| Packing | Nuetral packaging or HYUNDAI packaging |
| Style | Hydraulic cylinder seal kit. |
| Type | Bucket cylinder seal kit. |
AppliC-A-Ted Models:
| HW210 | HX220L | HX220NL |
| HX235L | R210LC-9 | R210LC-9BC |
| R210LC-9BH | R210NLC-9 | R210W-9 |
| R210W-9A | R210W-9AMH | R210W-9MH |
| R210W-9S | R220LC-9A | R220NLC-9A |
| R235LCR-9 | R235LCR-9A | R220LC-9S |
Parts on Group:
| Pos. | Part No | Qty | Parts name |
| *. | 31K6-50130 | [1] | ARM CYLINDER ASSY |
| *-1. | 31Y1-45430 | [1] | ARM CYL SUB ASSY |
| 1 | 31Y1-28640GG | [1] | TUBE ASSY |
| 2 | 31Y1-28700 | [1] | ROD ASSY |
| 3 | 31Y1-28741 | [1] | GLAND |
| 4 | S732-100040 | [1] | BUSHING-DD2 |
| 5 | Y191-107000 | [1] | RING-SNAP |
| K6. | Y220-100013 | [1] | SEAL-ROD |
| K7. | Y180-100020 | [1] | RING-BACK UP |
| K8. | Y240-100012 | [1] | RING-BUFFER |
| K9. | Y110-100011 | [1] | WIPER-DUST |
| 10 | Y190-114000 | [1] | RING-SNAP |
| K11. | S631-130004 | [1] | O-RING |
| K12. | 31YC-CP130 | [1] | RING-BACK UP |
| 13 | 31YC-28030 | [1] | RING-CUSHION |
| 14 | 31Y1-28771 | [1] | PISTON |
| K15. | Y420-140000 | [1] | SEAL-PISTON |
| K16. | Y310-140103 | [2] | RING-WEAR |
| K17. | Y440-140202 | [2] | RING-DUST |
| K18. | S632-075004 | [1] | O-RING |
| K19. | S642-075003 | [2] | RING-BACK UP |
| 20 | 31YC-68050 | [1] | NUT-LOCK |
| 21 | S114-100164 | [1] | SCREW-SET |
| K22. | S632-140004 | [1] | O-RING |
| 23 | S109-180904 | [14] | BOLT-SOCKET |
| 24 | 61KH-73030 | [2] | BUSHING-PIN |
| 25 | Y020-080000 | [4] | SEAL-DUST,DLI,KPU |
| 26 | 31YC-2A070 | [1] | VALVE-CHECK |
| 27 | 31YC-99071 | [1] | SPRING-COIL |
| K28. | S631-014004 | [1] | O-RING |
| 29 | P220-110103 | [1] | PLUG-HEX |
| 30 | 31Y1-29171GG | [1] | BAND ASSY-R |
| 30-1. | 31Y1-29180 | [1] | BAND SUB ASSY |
| 30-2. | 31Y1-29190 | [1] | BAND SUB ASSY |
| 30-3. | S015-120456 | [2] | BOLT-HEX |
| 30-4. | S411-120006 | [2] | WASHER-SPRING |
| 30-5. | S070-053446 | [1] | U-BOLT |
| 30-6. | S205-101006 | [2] | NUT-HEX |
| 30-7. | S411-100006 | [2] | WASHER-SPRING |
| 31 | 31Y1-29201GG | [1] | BAND ASSY-B |
| 31-1. | 31Y1-29210 | [1] | BAND SUB ASSY |
| 31-2. | 31Y1-29190 | [1] | BAND SUB ASSY |
| 31-3. | S015-120456 | [2] | BOLT-HEX |
| 31-4. | S411-120006 | [2] | WASHER-SPRING |
| 31-5. | S070-053446 | [1] | U-BOLT |
| 31-6. | S205-101006 | [2] | NUT-HEX |
| 31-7. | S411-100006 | [2] | WASHER-SPRING |
| 32 | 31Y1-29221GG | [1] | PIPE ASSY-R |
| K33. | Y171-024004 | [1] | O-RING |
| 34 | S107-120556 | [4] | BOLT-SOCKET |
| K. | 31Y1-28790 | [1] | SEAL KIT |
| K. | 31Y1-06731 | [1] | SEAL KIT |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
