31Y1-28960 31Y128960 Boom Cylinder Seal Repair Kit For HYUNDAI R220LC-9A R220LC-9S
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 days after payment received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

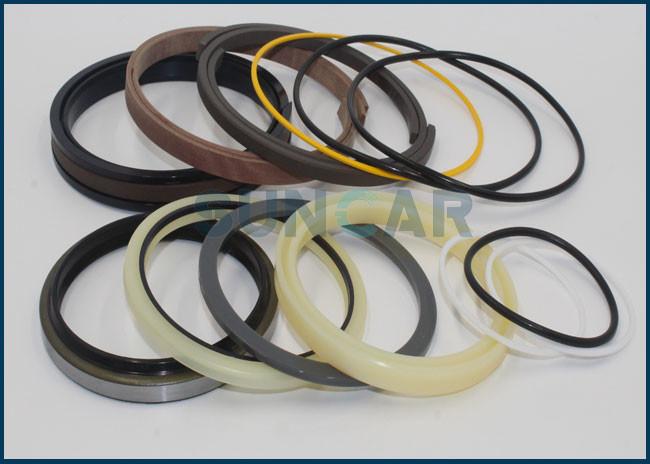

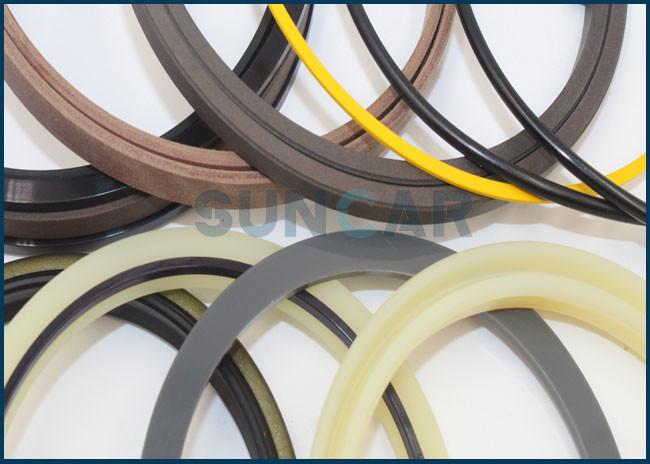

31Y1-28960 31Y128960 Boom Cylinder Seal Repair Kit for HYUNDAI R220LC-9A R220LC-9S
Description: Boom cylinder seal kit.
|
Product name |
31Y1-28960 31Y128960 Boom Cylinder Seal Repair Kit for HYUNDAI R220LC-9A R220LC-9S |
|
Brand name |
SUNCAR |
| Part number | 31Y1-28960 ; 31Y128960 |
| Compatible brand | HYUNDAI |
|
Shipping mode |
By air, by sea, by express |
| Relative brand | Komatsu, Hitachi, Sumitomo, Doosan, Daewoo, Hyundai, C-A-Terpillar, SUNCARSUNCARSUNCARSUNCARVOLVO, Kato, Samsung, Liebherr, Mitsubishi, etc. |
| Express | FedEx , UPS,DHL,TNT etc. |
| Fit equipment | Excavator |
|
Stock |
Have enough stock for selling |
| Temperature | -35 ~ 220 ℃ |
| Payment |
Western Union, L/C, T/T, Money Gram, D/A, D/P,Paypal,Bank Transfer |
|
Feature |
Oil-resistant, heat-resistant, durable |
| Sale market | The people in need |
| Function | Control walking and play buffer role when buffering |
| Supply ability | 550 sets per week |
| Packing | Nuetral packaging or HYUNDAI packaging |
| Style | Hydraulic cylinder seal kit. |
| Type | Boom cylinder seal kit. |
AppliC-A-Ted Models:
| HW210 | HX235L | R210LC-9BH | R210W-9A |
| HX220NL | R210LC-9 | R210NLC-9 | R210W-9AMH |
| HX220L | R210LC-9BC | R210W-9 | R210W-9MH |
| R210W-9S | R220LC-9A | R220NLC-9A | R235LCR-9 |
| R235LCR-9A | R220LC-9S | HYUNDAI |
Parts on Group:
| Pos. | Part No | Qty | Parts name |
| *. | 31K6-53110 | [1] | BOOM CYLINDER ASSY-LH |
| *. | 31K6-53410 | [1] | BOOM CYLINDER ASSY-LH |
| *. | 31K6-53120 | [1] | BOOM CYLINDER ASSY-RH |
| *. | 31K6-53420 | [1] | BOOM CYLINDER ASSY-RH |
| *-1. | 31Y1-45710 | [1] | BOOM CYL SUB ASSY |
| *-1. | 31Y1-45770 | [1] | BOOM CYL SUB ASSY |
| 1 | 31Y1-36190 | [1] | TUBE ASSY |
| 1 | 31Y1-39790 | [1] | TUBE ASSY |
| 2 | 31Y1-28870 | [1] | ROD ASSY |
| 2 | 31Y1-39830 | [1] | ROD ASSY |
| 3 | 31Y1-36230 | [1] | GLAND |
| 4 | S732-085030 | [1] | BUSHING-DD2 |
| 5 | Y191-092000 | [1] | RING-SNAP |
| K6. | Y220-085013 | [1] | SEAL-ROD |
| K7. | Y180-085020 | [1] | RING-BACK UP |
| K8. | Y240-085012 | [1] | RING-BUFFER |
| K9. | Y110-085011 | [1] | WIPER-DUST |
| 10 | Y190-099000 | [1] | RING-SNAP |
| K11. | S632-115004 | [1] | O-RING |
| K12. | S642-115003 | [1] | RING-BACK UP |
| 13 | 31YC-26060 | [1] | RING-CUSHION |
| 14 | 31Y1-28940 | [1] | PISTON |
| K15. | Y420-120002 | [1] | SEAL-PISTON |
| K16. | Y310-120203 | [2] | RING-WEAR |
| K17. | Y440-120000 | [2] | RING-DUST |
| K18. | S632-060004 | [1] | O-RING |
| K19. | S642-060003 | [2] | RING-BACK UP |
| 20 | 31YC-68030 | [1] | NUT-LOCK |
| 21 | S114-080144 | [1] | SCREW-SET |
| K22. | S632-120004 | [1] | O-RING |
| 23 | S109-160754 | [12] | BOLT-SOCKET |
| 24 | 61KH-73010 | [1] | BUSHING-PIN |
| 25 | 61KH-73020 | [1] | BUSHING-PIN |
| 26 | Y020-080000 | [4] | SEAL-DUST,DLI,KPU |
| 27 | 31Y1-36241GG | [1] | BAND ASSY |
| 27-1. | 31Y1-36250 | [1] | BAND SUB ASSY |
| 27-2. | 31YC-31480 | [1] | BAND |
| 27-3. | S070-052736 | [2] | U-BOLT |
| 27-4. | S011-100356 | [2] | BOLT-HEX |
| 27-5. | S205-101006 | [4] | NUT-HEX |
| 27-6. | S411-100006 | [6] | WASHER-SPRING |
| 28 | 31Y1-36261GG | [1] | PIPE ASSY-R,LH |
| 28 | 31Y1-43281GG | [1] | PIPE ASSY-R,LH |
| 28 | 31Y1-36271GG | [1] | PIPE ASSY-R,RH |
| 28 | 31Y1-43291GG | [1] | PIPE ASSY-R,RH |
| 29 | 31Y1-36281GG | [1] | PIPE ASSY-B,LH |
| 29 | 31Y1-36291GG | [1] | PIPE ASSY-B,RH |
| K30. | Y171-019004 | [2] | O-RING |
| 31 | S107-100456 | [8] | BOLT-SOCKET |
| K. | 31Y1-28960 | [1] | SEAL KIT |
| K. | 31Y1-28790 | [1] | SEAL KIT |
| K. | 31Y1-06731 | [1] | SEAL KIT |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
