Travel Motor Seal Kit For 708-8F-00210 Motor Assy Excavators KOMATSU PC210

Price Negotiable
Price: Negotiable
MOQ: Accept trial order
Delivery Time: 3-7 Days After Payment Received(Public Holiday Excluded)
Brand: SUNCAR
Product Description

Travel Motor Seal Kit for 708-8F-00210 Motor Ass'y Excavators KOMATSU PC210




Description: Boom cylinder seal kit.



Product name Travel Motor Seal Kit for 708-8F-00210 Motor Ass'y Excavators KOMATSU PC210
Brand name SUNCAR
OEM number 708-8F-00210
7088F00210
Compatible Model KOMATSU PC210-7K ; PC210LC-7K ; PC210NLC-7K
MOQ Accept trail order
Compatible brand KOMATSU
Supply alility 550 sets per week
Condition 100 % new
Feature High temperature resistance,Sealing oil
Temperature -35~+220°C(According to material)
Payment L/C, Paypal, T/T, Western union, Bank transfer
Hardness 20degree~95degree
Pressure 0~0.05Mpa
Original place Guangdong province,China
AppliC-A-Tion Final drive;Travel motor
Save notifiC-A-Tion Close, dry, avoid the sun
Transport mode Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.)
CertifiC-A-Tion ISO9001
Size Standard size or as per customer request
AppliC-A-Tion Building Material Shops, Machinery Repair Shops, Manufactury plant,Construction works
Make up Back up ring,Bushing,O-Ring,Piston rod,Ball,U-Ring packin etc
Availability In rich stock.
Style Hydraulic, Cylinder seal kit;arm cylinder seal kit.

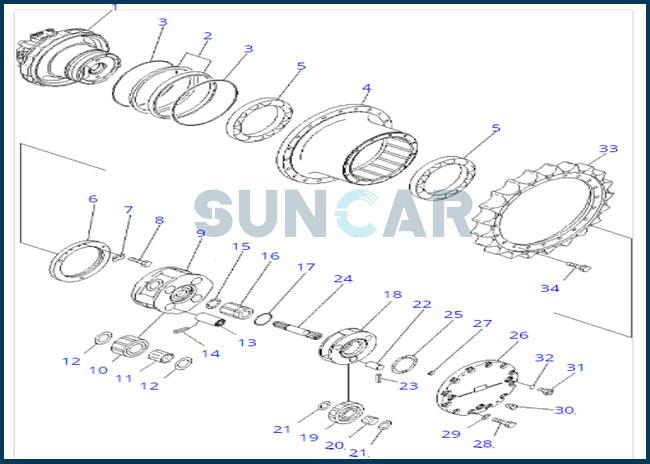

Parts on Group:



Pos. Part No Qty Parts name
  20Y-27-00470 [2] FINAL DRIVE ASS'Y
  20Y-27-00351 [2] FINAL DRIVE ASS'Y
  20Y-27-00350 [2] FINAL DRIVE ASS'Y
1. 708-8F-00211 [1] MOTOR ASS'Y,(SEE FIG.Y1641-01A0)
  708-8F-00210 [1] MOTOR ASS'Y,(SEE FIG.Y1641-01A0)
  150-27-00330 [1] FLOATING SEAL ASS'Y
4. 20Y-27-31120 [1] HUB
5. 20Y-27-31130 [2] BEARING
6. 20Y-27-22261 [1] LOCK
7. 20Y-27-31180 [1] LOCK
8. 01010-81020 [2] BOLT
9. 20Y-27-22170 [1] CARRIER
10. 20Y-27-22140 [4] GEAR
11. 20Y-27-22220 [4] BEARING
12. 20Y-27-21250 [8] WASHER
13. 20Y-27-31160 [4] PIN
14. 20Y-27-21290 [4] PIN
15. 20Y-27-13310 [1] WASHER
16. 20Y-27-22130 [1] GEAR
17. 20Y-27-22240 [1] WASHER
18. 20Y-27-31110 [1] CARRIER
19. 20Y-27-22120 [3] GEAR
20. 20Y-27-22210 [3] BEARING
21. 20Y-27-21240 [6] WASHER
22. 20Y-27-21220 [3] PIN
23. 20Y-27-21280 [3] PIN
24. 20Y-27-31140 [1] SHAFT
25. 20Y-27-21310 [1] WASHER
26 20Y-27-31250 [1] COVER
  20Y-27-31150 [1] COVER
27. 20Y-27-22250 [1] BUTTON
28. 01010-61230 [12] BOLT
29. 01643-31232 [12] WASHER
30. 07049-01012 [2] PLUG
31. 20Y-27-31190 [3] PLUG
32. 07002-12434 [3] O-RING
33. 20Y-27-11582 [1] SPROCKET
34. 20Y-27-11561 [20] BOLT
