2480-1013EK 2480-1013KT Center Joint Seal Kit For SOLAR DH220LC-3 DH280LC-3
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

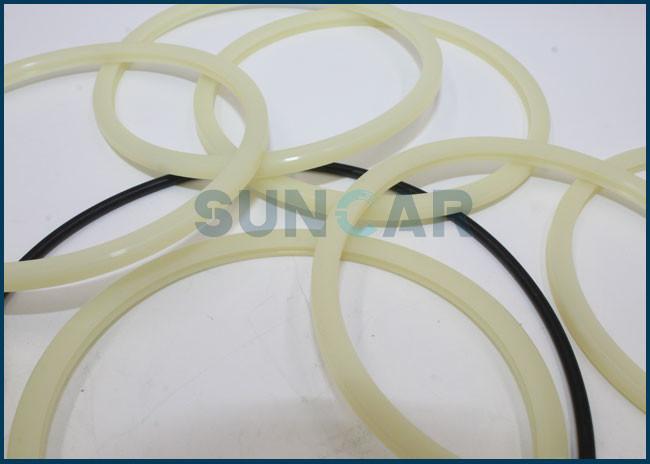

2480-1013EK 2480-1013KT Center Joint Seal Kit for SOLAR DH220LC-3 DH280LC-3
Description: Tilt cylinder seal kit.
| Product name | 2480-1013EK 2480-1013KT Center Joint Seal Kit for SOLAR DH220LC-3 DH280LC-3 |
| Brand name | SUNCAR |
| OEM number | 2480-1013EK ; 2480-1013KT |
| MOQ | Accept trail order |
| Compatible brand | C-A-T |
| Supply alility | 550 sets per week |
| Condition | 100 % new |
| Feature | High temperature resistance,Sealing oil |
| Temperature | -35~+220°C(According to material) |
| Payment | TT,Paypal,Western unoin,Alipay,Bank transfer |
| Hardness | 20degree~95degree |
| Pressure | 0~0.05Mpa |
| Original place | Guangdong province,China |
| AppliC-A-Tion | Swivel Joint/Center Joint |
| Save notifiC-A-Tion | Close, dry, avoid the sun |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| Size | Standard size or as per customer request |
| AppliC-A-Tion | Building Material Shops, Machinery Repair Shops, Manufactury plant,Construction works |
| Make up | Back up ring,Bushing,O-Ring,Piston rod,Ball,U-Ring packin etc |
| Availability | In rich stock. |
| Compatible model | C-A-T E303CR E304CR E305CR |
| Style | Hydraulic seal kit |
Relative Part Numbers:
| 4J-8979 | 5J-8150 | 6J-9733 |
| 4T-0486 | 4T-0488 | 6J-9178 |
| 4J-8980 | 5J-8175 | 4T-6778 |
| 4T-6777 | 4T-6898 | 6J-6917 |
| 1K-6981 | 5J-8200 | 5J-3616 |
| 4J-3515 | 5J-8225 | 6J-6916 |
| 6J-3892 | 5J-8238 | 5J3620 |
| 1K-6982 | 5J-0964 | 6J-6553 |
| 1J-3540 | 5J-8275 | 6J-6915 |
| 2J-1411 | 5J-8300 | 6J-7167 |
| 6J-4169 | 5J-8325 | 6J-6736 |
| 4J-8981 | 5J-8350 | 8J-6070 |
| 8J-6069 | 5J-8375 | 8J-4627 |
| 7J-5673 | 5J-8400 | 3G-8507 |
| 3J-4458 | 6J-1450 | 3G-8506 |
| 3J-4460 | 3G-4627 | 9J-2495 |
| 9X-7333 | 6J-1700 6 | 289-2937 |
| 4J-8982 | 289-2948 | 167-2208 |
| 9X-3569 | 8T-2185 | 4T-5717 |
| 7K-9201 | 341-3191 | 7J-8943 |

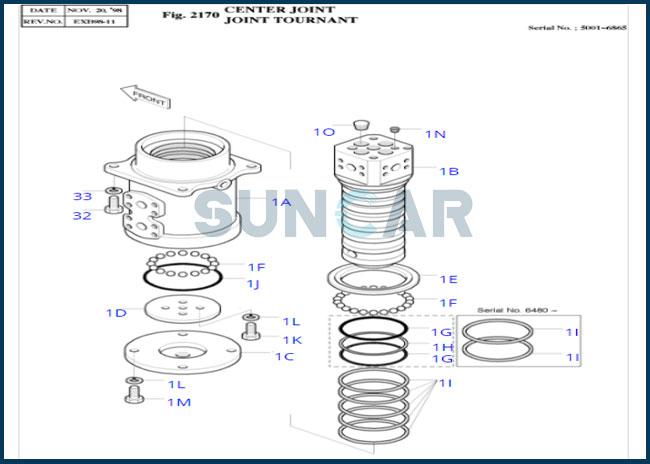

Parts on Group:
| Pos. | Part No | Qty | Parts name |
| 1 | 2480-1013B | [1] | CENTER JOINT ASS'Y |
| 1 | 2480-1013C | [1] | CENTER JOINT ASS'Y |
| 1 | 2480-1013E | [1] | CENTER JOINT ASS'Y |
| 1A. | 2481-1008B | [1] | . BODY |
| 1A. | 2481-1008C | [1] | . BODY |
| 1B. | 2483-1015A | [1] | . SPINDLE |
| 1C. | 2229-1018A | [1] | . COVER |
| 1D. | 2621-1661 | [1] | . PLATE;THRUST |
| 1E. | 2116-1009 | [1] | . PLATE |
| 1F. | S6250261 | [38] | . BALL Komatsu China |
| ["desc: . BILLE"] | |||
| 1G. | 2180-9123 | [2] | . O-RING |
| 1H. | S8061000 | [1] | RING;BACK UP |
| 1I. | 2180-9099 | [5] | SEAL |
| 1J. | S8011250 | [1] | . O-RING |
| 1K. | S0514853 | [4] | . BOLT |
| 1L. | S5102703 | [8] | . WASHER;SPRING |
| 1M. | S0515353 | [4] | . BOLT M12X1.75X35 |
| 1N. | 2181-1116D5 | [4] | . PLUG PT3/4 |
| 1O. | 2181-1116D2 | [1] | . PLUG PT1/4 |
| 32 | S0515253 | [4] | BOLT |
| *. | 2480-1013K | [1] | SEAL KIT |
| *. | 2480-1013EK | [1] | SEAL KIT |
