2401-9082K 24019082K Travel Motor Seal Kit For DH220LC-3 DH220LC-7 DH225LC-7 DH258LC-V DH258LC-7
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

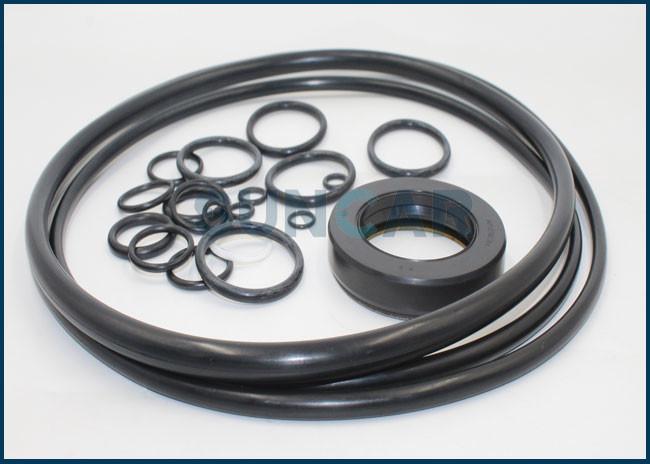

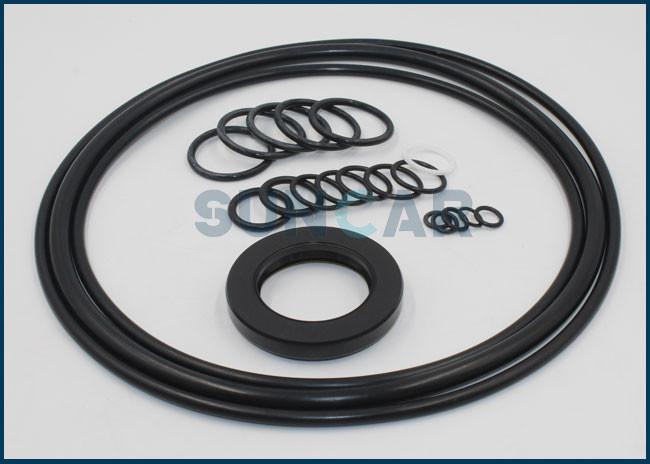

2401-9082K Travel Motor Seal Kit For DH220LC-3 DH220LC-7 DH225LC-7 DH258LC-V DH258LC-7
Description: Center joint seal kit.
| Product name | 2401-9082K Travel Motor Seal Kit For DH220LC-3 DH220LC-7 DH225LC-7 DH258LC-V DH258LC-7 |
| Brand name | SUNCAR |
| OEM number | 2401-9082K 24019082K |
| MOQ | Accept trail order |
| Compatible brand | DOOSAN |
| Supply alility | 550 sets per week |
| Condition | 100 % new |
| Feature | High temperature resistance,Sealing oil |
| Temperature | -35~+220°C(According to material) |
| Payment | TT,Paypal,Western unoin,Alipay,Bank transfer |
| Hardness | 20degree~95degree |
| Pressure | 0~0.05Mpa |
| Original place | Guangdong province,China |
| AppliC-A-Tion | Swivel Joint/Center Joint |
| Save notifiC-A-Tion | Close, dry, avoid the sun |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| Size | Standard size or as per customer request |
| AppliC-A-Tion | Building Material Shops, Machinery Repair Shops, Manufactury plant,Construction works |
| Make up | Back up ring,Bushing,O-Ring,Piston rod,Ball,U-Ring packin etc |
| Availability | In rich stock. |
| Compatible model | DOOSAN DH130LC-V DH150LC-V DH300LC-7 DH330-3 SOLAR S130LC-V S140LC-V S300LC-7 S330-3 |
| Style | Hydraulic seal kit;Center joint seal kit. |
Relative Part Numbers:

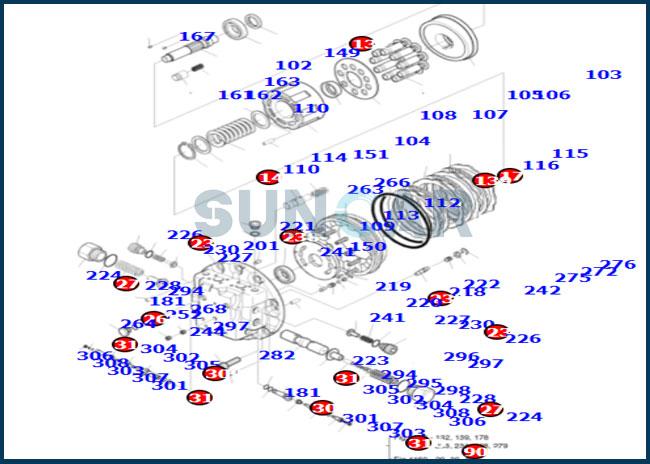

Parts on Group:
| Pos. | Part No | Qty | Parts name |
| -. | K1000681A | [2] | TRAVEL DEVICE |
| RL. | K9001812 | [1] | REAR FLANGE ASS'Y |
| RL1. | K9001813 | [1] | . KIT;REAR FLANGE |
| 201 | - | [1] | .. FLANGE;REAR |
| 223 | 1.424-00062 | [1] | .. SPOOL;MAIN |
| RL2. | 1.416-00026 | [2] | . STOPPER ASS'Y |
| 294 | 1.416-00027 | [1] | .. STOPPER |
| 295 | 1.424-00063 | [1] | .. SPOOL;MAIN |
| 296 | 1.129-00018 | [1] | .. SPRING |
| 297 | 1.114-00542 | [1] | .. WASHER |
| 298 | S6550100 | [1] | .. RING;SNAP |
| 224 | 1.181-00059 | [2] | . PLUG;FOR MAIN |
| 228 | 1.131-00058 | [2] | . SPRING;FOR MAIN |
| 279 | S8000321 | [2] | . O-RING |
| 226 | 1.181-00067 | [2] | . PLUG;CHECK |
| 227 | 1.420-00013 | [2] | . VALVE;CHECK |
| 230 | 1.129-00006 | [2] | . SPRING;CHECK |
| 234 | S8002731 | [2] | . O-RING |
| 221 | 2181-1890D4 | [1] | . PLUG ;RO |
| 238 | S8000181 | [1] | . O-RING |
| 252 | 2181-1116D2 | [4] | . PLUG;PT1/4 |
| 244 | 2181-1116D1 | [1] | . PLUG;PT1/8 |
| 268 | S6250161 | [2] | . BALL;STEEL |
| 242 | 1.420-00014 | [1] | . VALVE;REDUCING |
| 272 | 1.427-00031 | [1] | . SEAT;VALVE REDUCING |
| 276 | 1.115-00141 | [1] | . RING;REDUCING |
| 275 | 1.131-00062 | [1] | . SPRING;REDUCING V/V |
| 218 | 1.427-00029 | [1] | . VALVE;SEAT T-TYPE |
| 219 | 1.420-00009 | [1] | . VALVE;T-TYPE |
| 220 | 1.131-00041 | [1] | . SPRING;T-TYPE |
| 222 | 1.115-00139 | [1] | . RING;T-TYPE |
| 233 | S8000091 | [1] | . O-RING |
| 263 | 422-00031 | [1] | . VALVE;TWO SPEED |
| 264 | K9001047 | [1] | . PLUG |
| 265 | S8000111 | [1] | . O-RING |
| 266 | 1.131-00099 | [1] | . SPRING;TWO SPEED |
| 241 | S5700891 | [2] | . PIN;PARALLEL |
| 282 | S2221471 | [9] | BOLT;SOCKET M16X2.0X40 |
| 297 | 1.415-00005 | [1] | ORIFICE |
| M. | 1.401-00011 | [1] | MOTOR PART |
| M1. | 1.441-00291 | [1] | KIT;CYL'D BLOCK & PISTON |
| 104 | 1.441-00292 | [1] | . BLOCK;CYLINDER |
| 110 | 1.114-00305 | [2] | . WASHER |
| 114 | 1.129-00019 | [1] | . SPRING;FOR CYL'D |
| 145 | S6510700 | [1] | . RING;SNAP |
| M11. | 1.409-00231 | [1] | . PISTON ASS'Y |
| 105 | 1.409-00232 | [9] | .. PISTON |
| 106 | 1.355-00011 | [9] | .. SHOE |
| 151 | 1.109-00135 | [6] | . ROLLER |
| 107 | 1.412-00093 | [1] | . PLATE;RETAINER |
| 108 | 1.148-00016 | [1] | . BALL;THRUST |
| M2. | K9001814 | [1] | PISTON ASS'Y |
| 161 | 1.409-00116 | [1] | . PISTON |
| 162 | 1.355-00012 | [1] | . SHOE |
| 163 | 1.131-00042 | [1] | SPRING |
| 102 | 1.405-00022 | [1] | SHAFT;MAIN |
| 103 | 1.412-00202 | [1] | PLATE;SWASH |
| 109 | 1.412-00203 | [1] | PLATE;TIMING |
| 115 | 1.412-00061 | [3] | PLATE;FRICTION |
| 116 | 1.412-00072 | [4] | PLATE;MATING |
| 112 | 1.409-00115 | [1] | PISTON;PARKING |
| 113 | 1.131-00055 | [9] | SPRING;P/PISTON |
| 132 | 1.180-00631 | [1] | SEAL;OIL |
| 149 | 1.109-00147 | [1] | BEARING;BALL |
| 150 | 1.109-00026 | [1] | BEARING;BALL |
| 139 | S8002101 | [1] | O-RING |
| 178 | S8011951 | [1] | O-RING |
| 181 | S5701242 | [2] | PIN |
| 167 | 1.540-00006 | [2] | PIVOT |
| R-1. | 1.426-00024 | [2] | RELIEF VALVE ASS'Y |
| 301 | 1.429-00037 | [1] | .. SEAT |
| 302 | 1.424-00064 | [1] | .. PLUNGER |
| 303 | 1.424-00065 | [1] | .. ROD |
| 304 | 1.409-00233 | [1] | .. PISTON |
| 305 | 1.441-00295 | [1] | .. BODY |
| 306 | 1.181-00154 | [1] | .. PLUG |
| 307 | 1.129-00020 | [1] | .. SPRING |
| 308 | 1.114-00543 | [1] | .. SHIM |
| 311 | S8060181 | [1] | .. RING;BACKUP |
| 900 | 2401-9082K | [1] | SEAL KIT |
