USH Piston And Piston Rod Seal For Hydraulic Cylinder Integrated Groove Mounting

Price Negotiable

Price: Negotiable

MOQ: Accept trial order

Delivery Time: 3-7 Days After Payment Received(Public Holiday Excluded)

Brand: SUNCAR

Product Description

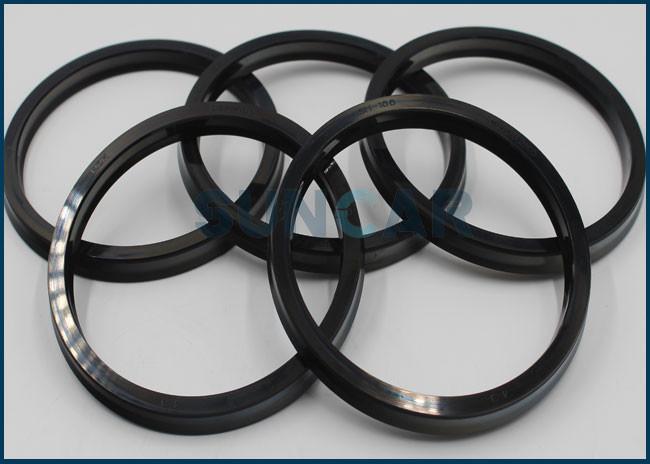

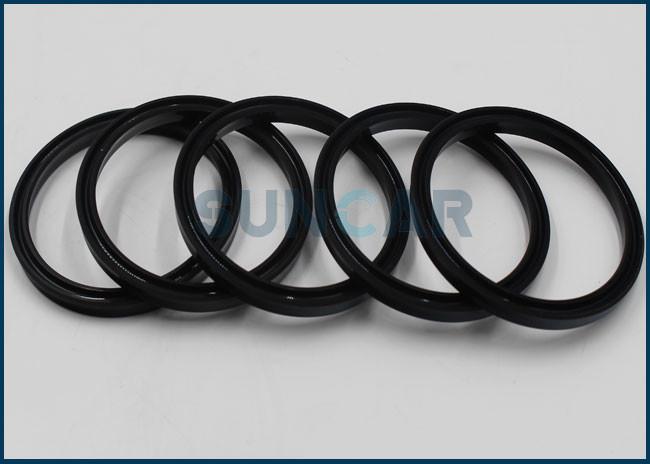

USH Piston And Piston Rod Seal for Hydraulic Cylinder Integrated Groove Mounting

Usable for both piston seal and rod seal.

· Designed with a small cross-section to allow integrated groove mounting.

· This packing is a smaller cross-section version of the UPH type.

Product name	USH Piston And Piston Rod Seal for Hydraulic Cylinder Integrated Groove Mounting
Brand	SUNCAR
Meterial	NBR A505
Material	FKM F357
Feature	Sealing Performance/Wear Resistance/High&Low Temperature Resistance
Function	Isolate high-temperature liquids and improve the durability of the seal.
Payment terms	T/T, Western Union, Paypal
Loading port	Huangpu port,China
Features	Heat resistant (F357)
AppliC-A-Tion	Cylinder, Presses, Machine tools
Packing details	3-7 days after payment received(Public Holiday Excluded)
Shiping mode	By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)
CertifiC-A-Tion	ISO9001
Medium	Hydraulic fluids, water, air
Stock	Have enough stock
Usage	Prevent oil spilling,Protects packing or bearing by preventing intrusion of external dust.

Detail Part Number:

●CU3248K0	CU0679K0	CU1280K0
●CU2692K0	CU0694K0	CU1291K0
●CU2548K0	CU0722K0	CU1306K0
CU0180K0	CU3255K0	CU1323K0
CU0212K0	CU0746K0	CU1343K0
CU3017K0	CU0750K0	CU1359K0
CU0260K0	CU0786K0	CU3261K0
CU0267K0	CU0809K0	CU1406K0
CU2971K0	CU0828K0	CU1429K0
CU0276K0	CU0849K0	CU3038K0
CU3187K0	CU0879K0	CU1483K0
CU0320K0	CU0901K0	CU2516K0
CU2536K0	CU0939K0	CU3263K0
CU0357K0	CU1959K0	CU1543K0
CU0382K0	CU0984K0	CU1563K0
CU2819K0	CU1024K0	CU1609K0
CU0424K0	CU1051K0	CU1637K0
CU0451K0	CU1067K0	CU1657K0
CU3253K0	CU1082K0	CU1678K0
CU3040K1	CU1135K0	CU1702K0
CU0497K0	CU1178K0	CU1962K0
CU0567K0	CU1179K0	CU1756K0
CU0572K0	CU3259K0	CU3267K0
CU0619K0	CU1204K0	CU1793K0
CU2002K0	CU1252K0	CU3270K0

USH Seals Sizes

Seal Nominal Size			Cavity size
d	D	h	φd	φD	φD1	HA	HB	C
12	20	5	12	20	19	5.7	7.7	2
14	22	5	14	22	21	5.7	7.7
16	24	5	16	24	23	5.7	7.7
18	26	5	18	26	25	5.7	7.7
20	28	5	20	28	27	5.7	7.7
22	30	5	22	30	29	5.7	7.7
22.4	30	5	22.4	30	29	5.7	7.7
23.5	31.5	5	23.5	31.5	30.5	5.7	7.7
24	32	5	24	32	31	5.7	7.7
25	33	5	25	33	32	5.7	7.7	2.5
27	35	5	27	35	34	5.7	8.7
28	35.5	5	28	35.5	34.5	5.7	8.7
	36	5	28	36	35	5.7	8.7
30	40	6	30	40	39	7	10
31.5	41.5	6	31.5	41.5	40.5	7	10
32	42	6	32	42	41	7	10
35	45	6	35	45	44	7	10
35.5	45	6	35.5	45	44	7	10
	45.5	6	35.5	45.5	44.5	7	10
36	46	6	36	46	45	7	10
40	50	6	40	50	49	7	10
45	55	6	45	55	54	7	10
	56	7	45	56	55	8	11
50	60	6	50	60	59	7	10
53	63	6	53	63	62	7	10
55	65	6	55	65	64	7	10
56	66	6	56	66	65	7	10
58	68	6	58	68	67	7	10
60	70	6	60	70	69	7	10
	71	7	60	71	70	8	11
63	73	6	63	73	72	7	10
65	75	6	65	75	74	7	10
67	77	6	67	77	76	7	10
70	80	6	70	80	79	7	10
71	80	6	71	80	79	7	10
75	85	6	75	85	84	7	10
80	90	6	80	90	89	7	10
85	95	6	85	95	94	7	10	4
	100	9	85	100	98	10	13
90	105	9	90	105	103	10	13
95	110	9	95	110	108	10	13
98	112	8.5	98	112	110	9.5	12.5
100	115	9	100	115	113	10	13
106	120	8.5	106	120	118	9.5	12.5
112	125	8.5	112	125	123	9.5	12.5
	125	9	112	125	123	10	13
115	130	8.5	115	130	128	9.5	12.5
118	132	8.5	118	132	130	9.5	12.5
125	140	9	125	140	138	10	13
130	145	9	130	145	143	10	13
132	145	8.5	132	145	143	9.5	12.5
136	150	8.5	136	150	148	9.5	12.5
140	155	9	140	155	153	10	13
145	160	9	145	160	158	10	13
150	165	9	150	165	163	10	13
155	170	9	155	170	168	10	14
160	175	9	160	175	173	10	14
165	180	9	165	180	178	10	14
175	190	9	175	190	188	10	14
180	200	12	180	200	198	13	17	5
190	210	12	190	210	208	13	17
195	215	12	195	215	213	13	17
200	220	12	200	220	218	13	17
204	224	12	204	224	222	13	17
224	244	12	224	244	242	13	17
230	250	12	230	250	248	13	17
240	260	12	240	260	258	13	17
250	270	12	250	270	268	13	17
260	280	14	260	280	278	15	19
280	300	14	280	300	298	15	19
295	315	14	295	315	313	15	19
300	320	12	300	320	318	13	17
335	355	14	335	355	353	15	19
355	375	14	355	375	373	15	19
380	400	14	380	400	398	15	19
400	420	14	400	420	418	15	19
450	470	14	450	470	468	15	20
500	525	17	500	525	523	18	23	6.5
