VOE11005106 VOE 11005106 11005106 SUNCARSUNCARVOLVO Rod Seal For L220E L220G L250H
VOE11005106 VOE 11005106 11005106 SUNCARSUNCARSUNCARSUNCARVOLVO Rod Seal for L220E L220G L250H

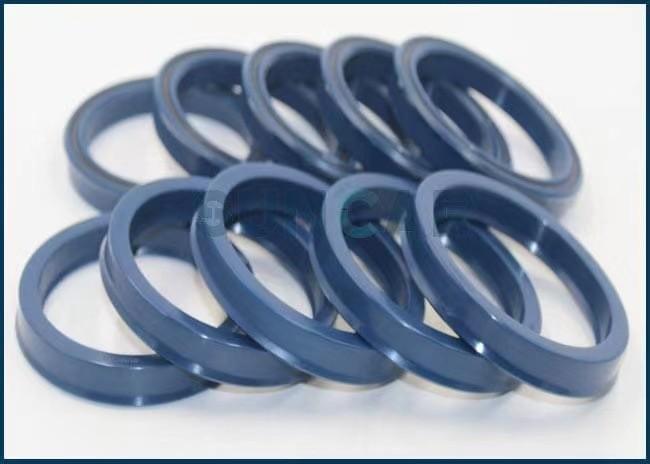

Description: Seal shape: Rod Seal Ring
What is a rod seal?
The rod seal is one of the most critical seals on any type of fluid power equipment. The rod seal prevents the
pressurized hydraulic fluid within the cylinder from leaking. Leakage can lead to reduced equipment performance,
system failure, and environmental/safety issues.
| Product name | VOE11005106 VOE 11005106 11005106 SUNCARSUNCARSUNCARSUNCARVOLVO Rod Seal for L220E L220G L250H |
| Part number | VOE11005106 VOE 11005106 11005106 |
| Brand name | SUNCAR |
| MOQ | Accept trial order |
| Material |
PCDL |
| Features | Wear-resistant and extrusion-resistant, providing excellent resistance to compression deformation of seals |
| Medium | Hydraulic oils, mineral hydraulic oils, water and water / glycol emulsion. |
| Condition | 100 % new,brandnew |
| Feature |
High temperature, low temperature, high pressure, low pressure, |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Working temperature | High temperature resistant |
| Size specifiC-A-Tion | Standard size |
| AppliC-A-Tion |
Rectangular seals and sealing rings are widely used in various sealing appliC-A-Tions in C-A-T machines and engines. |
| Stock | In rich stock |
| Style |
Piston Rod Seal |
Compatible Equipment Models: VOE11005106:
| L220E | L180F | L180G | L250G |
| L180E | L220F | L220G | L180H |
| L250H | L180H | L260H | L150/L150C SUNCARSUNCARSUNCARSUNCARVOLVO BM |
| L180/L180C SUNCARSUNCARSUNCARSUNCARVOLVO BM | L150C | L180C | L220D |
| L150D | L180D | L220E | SUNCARSUNCARSUNCARSUNCARVOLVO.Heavy |

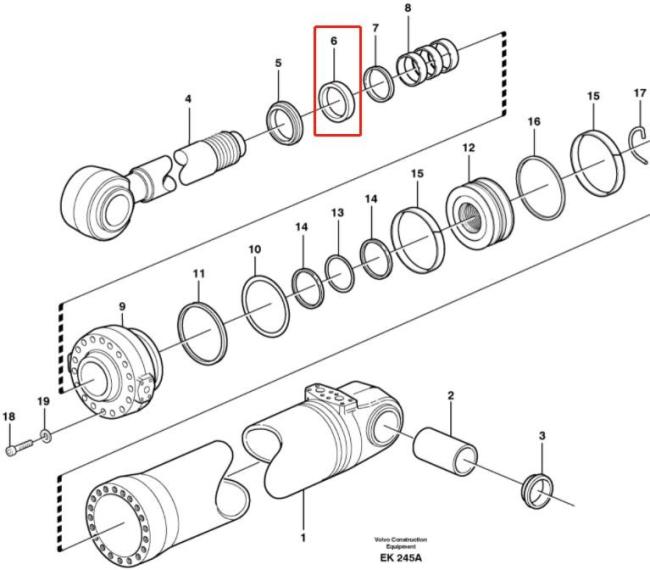

Parts on Group:
| Pos. | Part No | Qty | Parts name |
| VOE11107795 | [1] | Hydraulic cylinder | |
| VOE11107829 | Hydraulic cylinder | ||
| 1 | VOE11107069 | [1] | Cylinder tube |
| 2 | VOE11108567 | [2] | Bushing |
| 3 | VOE11005100 | [4] | Scraper ring |
| 4 | VOE17426714 | [1] | Piston rod |
| VOE11107119 | Piston rod | ||
| 5 | VOE11005067 | [1] | Scraper ring |
| 6 | VOE11005106 | [1] | Piston rod seal |
| 7 | VOE11005104 | [1] | Piston rod seal |
| 8 | VOE11088496 | [3] | Bushing |
| 9 | VOE11107071 | [1] | Piston rod guide |
| 10 | VOE13962512 | [1] | O-ring |
| 11 | VOE11088032 | [1] | Back-up ring |
| 12 | VOE11107329 | [1] | Piston |
| 13 | VOE925263 | [1] | O-ring |
| 14 | VOE11005097 | [2] | Back-up ring |
| 15 | VOE11107332 | [2] | Guide ring |
| 16 | VOE11107821 | [1] | Piston seal |
| 17 | VOE11107062 | [1] | Lock brace |
| 18 | VOE13947695 | [20] | Screw |
| 19 | VOE941914 | [20] | Spring washer |
| VOE11707027 | [1] | Sealing kit |
