3338673 333-8673 CA3338673 U Cup Seal Ring Rod Seal For C-A-T E345 Stick Cylinder
3338673 333-8673 CA3338673 U Cup Seal Ring Rod Seal for C-A-T E345 Stick Cylinder
Description: Seal shape: Rod Seal Ring
What is a rod seal?
The rod seal is one of the most critical seals on any type of fluid power equipment. The rod seal prevents the
pressurized hydraulic fluid within the cylinder from leaking. Leakage can lead to reduced equipment performance,
system failure, and environmental/safety issues.
| Product name | 3338673 333-8673 CA3338673 U Cup Seal Ring Rod Seal for C-A-T E345 Stick Cylinder |
| Part number | 3338673 333-8673 CA3338673 |
| Brand name | SUNCAR |
| MOQ | Accept trial order |
| Material |
PCDL |
| Features | Wear-resistant and extrusion-resistant, providing excellent resistance to compression deformation of seals |
| Medium | Hydraulic oils, mineral hydraulic oils, water and water / glycol emulsion. |
| Condition | 100 % new,brandnew |
| Feature |
High temperature, low temperature, high pressure, low pressure, |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Working temperature | High temperature resistant |
| Size specifiC-A-Tion | Standard size |
| AppliC-A-Tion |
Rectangular seals and sealing rings are widely used in various sealing appliC-A-Tions in C-A-T machines and engines. |
| Stock | In rich stock |
| Style |
Piston Rod Seal |
Compatible Equipment Models: 3338673:
| EXCAVATOR 345B II | 345D | 349D |
| 345C L | 345D LVG | 349DL |
| 345C | 349E | 349EL |
| 349F L | 365B | 365B II |
| 365C | 365C L | 374D L |
| MOBILE HYD POWER UNIT 365C L | SHOVEL LOGGER 345C | C-A-T |

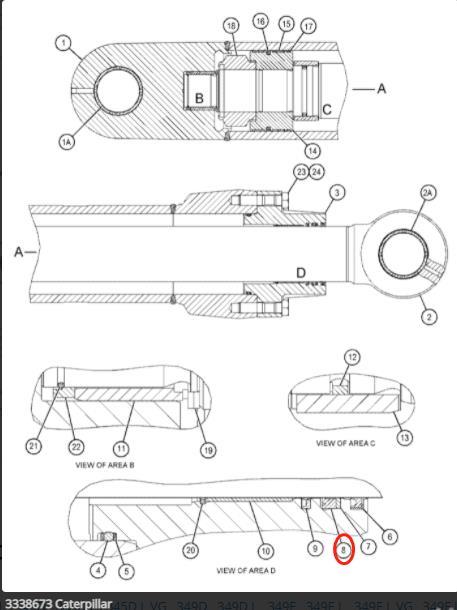

Parts on Group:
| Pos. | Part No | Qty | Parts name |
| 1 | 513-3690 | [1] | CYLINDER AS-STICK |
| 1A. | 462-2010 | [1] | BUSHING |
| 2 | 513-3687 | [1] | ROD AS |
| 2A. | 228-5618 | [1] | BUSHING |
| 3 | 370-6693 | [1] | HEAD |
| 4 | 370-6664 J | [1] | SEAL-O-RING |
| 5 | 370-6665 J | [2] | RING-BACKUP |
| 6 | 165-9293 J | [1] | SEAL-LIP TYPE |
| 7 | 087-5397 J | [1] | RING-BACKUP |
| 8 | 333-8673 J | [1] | SEAL-U-CUP |
| 9 | 333-8672 J | [1] | SEAL-BUFFER |
| 10 | 114-0763 | [1] | BUSHING |
| 11 | 524-7886 | [1] | STOP |
| 12 | 200-3620 J | [1] | RING-SEAL |
| 13 | 359-7190 | [1] | STOP |
| 14 | 358-8478 | [1] | PISTON |
| 15 | 204-2845 J | [2] | RING |
| 16 | 495-8218 J | [1] | SEAL AS |
| 17 | 204-2846 J | [1] | RING |
| 18 | 126-1971 M | [1] | LOCKNUT-SPECIAL |
| 19 | 143-1452 | [2] | RING-RETAINING |
| 20 | 087-5393 | [1] | RING-RETAINING |
| 21 | 147-5764 | [1] | RING-RETAINING |
| 22 | 147-5765 | [1] | RING |
| 23 | 173-9684 M | [10] | BOLT (M24X3X100-MM) |
| 24 | 6V-8237 | [10] | WASHER (26X44X4-MM THK) |
| AVAILABLE REPAIR KIT(S): | |||
| 518-5140 J | KIT-SEAL (STICK CYLINDER) | ||
| J | KIT MARKED J SERVICES PART(S) MARKED J | ||
| M | METRIC PART |
