VOE4784045 VOE 4784045 4784045 Piston Rod Seal For Cylinder SUNCARSUNCARVOLVO L150D L110E
VOE4784045 VOE 4784045 4784045 Piston Rod Seal for Cylinder SUNCARSUNCARSUNCARSUNCARVOLVO L150D L110E
Description: Seal shape: Rod Seal Ring
What is a rod seal?
The rod seal is one of the most critical seals on any type of fluid power equipment. The rod seal prevents the
pressurized hydraulic fluid within the cylinder from leaking. Leakage can lead to reduced equipment performance,
system failure, and environmental/safety issues.
| Product name | VOE4784045 VOE 4784045 4784045 Piston Rod Seal for Cylinder SUNCARSUNCARSUNCARSUNCARVOLVO L150D L110E |
| Part number |
VOE4784045 VOE 4784045 4784045 |
| Brand name | SUNCAR |
| MOQ | Accept trial order |
| Compatible equipment | Wheel loader SUNCARSUNCARSUNCARSUNCARVOLVO |
| Material |
PCDL |
| Features | Wear-resistant and extrusion-resistant, providing excellent resistance to compression deformation of seals |
| Medium | Hydraulic oils, mineral hydraulic oils, water and water / glycol emulsion. |
| Condition | 100 % new,brandnew |
| Feature |
High temperature, low temperature, high pressure, low pressure, |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Working temperature | High temperature resistant |
| Size specifiC-A-Tion | Standard size |
| AppliC-A-Tion |
Rectangular seals and sealing rings are widely used in various sealing appliC-A-Tions in C-A-T machines and engines. |
| Stock | In rich stock |
| Style |
Piston Rod Seal ; SUNCARSUNCARSUNCARSUNCARVOLVO rod seal for Hydraulic cylinder. |
Compatible Models:
| L90E | L110E | L150E |
| L180E | L120E | L110E |
| L90F | L110F | L120F |
| L150F | L180F | L110G |
| L120H | L90H | 4300 |
| 4600 | 6300 | 4600B |
| L120G | L90G | L110H |
| L160 | L70 | L30 |
| EL70C SUNCARSUNCARSUNCARSUNCARVOLVO BM | EL70 SUNCARSUNCARSUNCARSUNCARVOLVO BM | L150C |
| L180D | L220D | L180C |

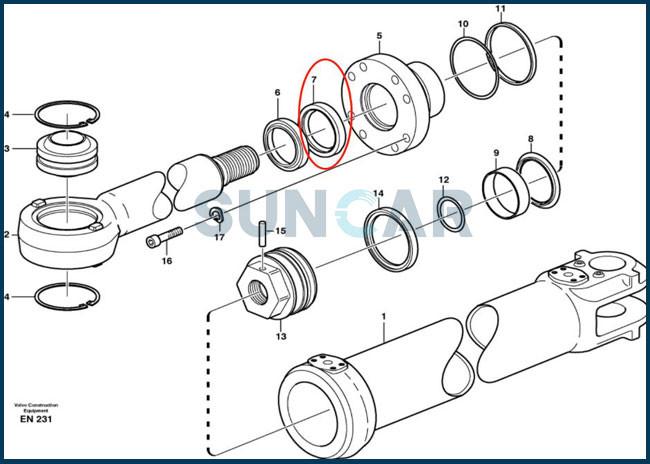

Parts On Group Hydraulic Cylinder Tilting:
| Pos. | Part No | Qty | Parts name |
| VOE11107334 | [1] | Hydraulic cylinder | |
| 1 | VOE11107346 | [1] | Cylinder tube |
| 2 | VOE11107343 | [1] | Piston rod |
| 3 | VOE184062 | [1] | Spherical plain bearing |
| 4 | VOE914538 | [2] | Retaining ring |
| 5 | VOE11107340 | [1] | Piston rod guide |
| 6 | VOE11005053 | [1] | Scraper ring |
| 7 | VOE4784045 | [1] | Piston rod seal |
| 8 | VOE11107348 | [1] | Piston rod seal |
| 9 | VOE11088052 | [2] | Bushing |
| 10 | VOE925079 | [1] | O-ring |
| 11 | VOE4786834 | [1] | Back-up ring |
| 12 | VOE13960175 | [1] | O-ring |
| 13 | VOE4782099 | [1] | Piston |
| 14 | VOE4833025 | [1] | Seal |
| 15 | VOE4782719 | [1] | Spring pin |
| 16 | VOE4782857 | [8] | Screw |
| 17 | VOE941908 | [8] | Spring washer |
| VOE11709028 | [1] | Sealing kit |
