440-00044AKT 44000044AKT Arm Cylinder Seal Kit For SOLAR 255LC-V DH258-5 DH258-7
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

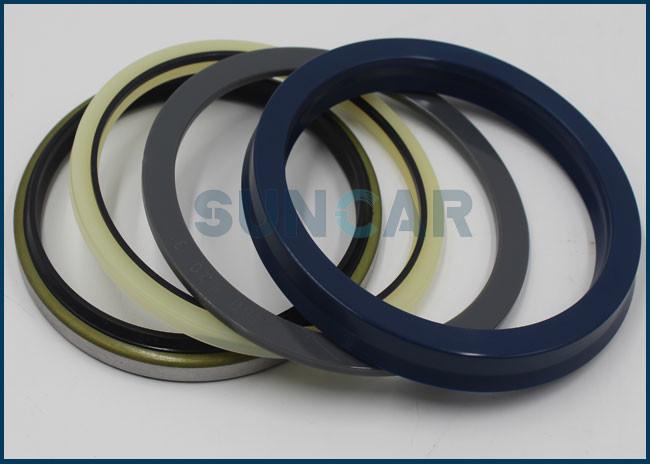

440-00044AKT 44000044AKT Arm Cylinder Seal Kit for SOLAR 255LC-V DH258-5 DH258-7
Description: DOOSAN Arm cylinder seal kit
| Product name | 440-00044AKT 44000044AKT Arm Cylinder Seal Kit for SOLAR 255LC-V DH258-5 DH258-7 |
| Brand name | SUNCAR |
| Part number |
440-00044AKT 44000044AKT |
| MOQ | Accept trial order |
| Material |
Rubber |
| Features | Good heat resistance; Smaller plastic deformation rate;Excellent flexibility Good abrasion resistance;Excellent oil/chemical resistance;Minimize oil leakage |
| Material | Steel |
| Medium | Hydraulic oils, mineral hydraulic oils, water and water / glycol emulsion. |
| Compatible models | DOOSAN SOLAR 250LC-V SOLAR 255LC-V DH258-5 DH258-7 |
| Condition | 100 % new,brandnew |
| Quality | High strength, high temperature resistance, high pressure resistance, good performance |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Working temperature | High temperature resistant |
| Size specifiC-A-Tion | Standard size |
Parts on Group:
| Pos. | Part No | Qty | Parts name |
| *. | 440-00044AKT | [1] | SEAL KIT;ARM CYL. |
| -. | 440-00188 | [1] | CYLINDER;ARM |
| -. | 440-00188A | [1] | CYLINDER;ARM |
| 1 | 53A602-0 | [1] | TUBE ASS'Y |
| 10 | E6020320 | [1] | WIPER;DUST |
| 11 | 00M498-0 | [1] | RING;RETAINING |
| 12 | E6311741 | [1] | O-RING |
| 13 | 53B316-0 | [1] | RING;BACK UP |
| 14 | E6490059 | [1] | O-RING |
| 15 | 00C322-0 | [1] | RING;CUSHION |
| 16 | 53A611-0 | [1] | PISTON |
| 17 | E5130320 | [1] | SEAL;SLIPPER |
| 18 | 00Z109-0 | [2] | RING;WEAR |
| 19 | 00R730-0 | [2] | RING;SLYD |
| 2 | 00T194-0 | [1] | BUSH;STEEL |
| 2 | 00B122-0 | [1] | BUSH;STEEL |
| 20 | E6311441 | [1] | O-RING |
| 21 | 53B441-0 | [2] | RING;BACK UP |
| 22 | 53B432-0 | [1] | NUT;PISTON |
| 23 | E1330544 | [1] | SCREW;SET |
| 24 | 03A713-0 | [1] | PLUNGER;CUSHION |
| 25 | 03A714-0 | [1] | RING;STOP |
| 26 | E0502149 | [14] | BOLT;SOCKET |
| 27 | 62E523-0 | [1] | VALVE;CHECK |
| 28 | 03A729-0 | [1] | SPRING |
| 29 | 03A728-0 | [1] | SUPPORT;SPRING |
| 3 | 53A605-0 | [1] | ROD ASS'Y |
| 30 | E1500030 | [1] | PLUG |
| 31 | 53A612-0 | [1] | PIPE BAND ASS'Y-A |
| 32 | 00P374-1 | [1] | BAND;PIPE |
| 33 | E3110112 | [2] | WASHER;SPRING |
| 34 | E0020963 | [2] | BOLT;HEX. |
| 35 | 53U510-1 | [1] | PIPE BAND ASS'Y-R |
| 36 | 00P374-1 | [1] | BAND;PIPE |
| 37 | E3110112 | [2] | WASHER;SPRING |
| 38 | E0020693 | [2] | BOLT;HEX M10X1.5X40 |
| 39 | 53A647-0 | [1] | PIPE ASS'Y-R |
| 4 | 00T194-0 | [1] | BUSH;STEEL |
| 4 | 00B122-0 | [1] | BUSH;STEEL |
| 40 | 03A534-0 | [1] | U-BOLT |
| 41 | E3110102 | [2] | WASHER;SPRING |
| 42 | E2022033 | [2] | NUT;HEX |
| 43 | 00C270-0 | [1] | CLAMP;PIPE |
| 44 | E3110102 | [2] | WASHER;SPRING |
| 45 | E0020733 | [2] | BOLT;HEX |
| 46 | E8841022 | [1] | NIPPLE;GREASE |
| 5 | 53A608-1 | [1] | COVER;ROD |
| 6 | E8412283 | [1] | DU-BUSH |
| 7 | 00M315-0 | [1] | RING;RETAINING |
| 8 | E5500320 | [1] | SEAL;BUFFER |
| 9 | E5303320 | [1] | U-PACKING |
