Product Description

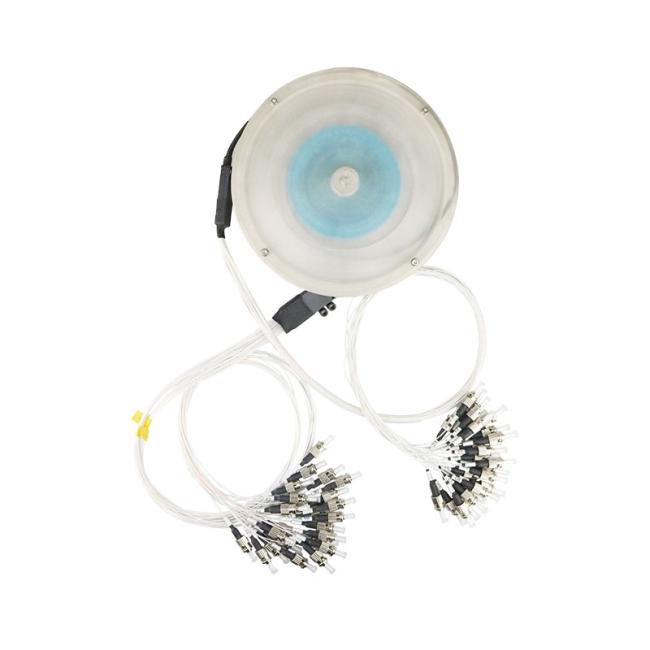

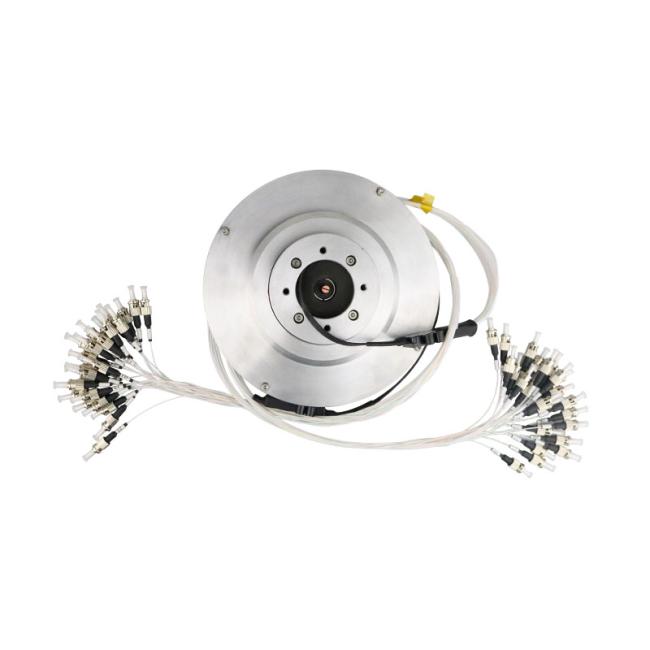

Multi-Channel Fiber Optic Rotary Joint
Product Introduction
The FRM series is a high-density channel product that can be configured with single-mode, multi-mode, or single-multi-mode hybrid fibers.
Products with resistance to environmental factors such as shock, vibration, high and low temperatures are available. The product line includes
two extended models, FRMA and FRMB.
FRMA features a tail fiber outlet and often used for 8 or more channels, with up to 31 channels available.
FRMB features a flange port, without tail fiber FRM Series Multi-Channel Fiber Optic Rotary Joint output, and can be configured with 2 to 4 channels
Main Technical Performance
| Indicator Name | Value |
| Bandwidth | ±50nm |
| Wavelength | 1310/1550(SM);850/1310(MM) |
| Insertion Loss (Room Temperature) | ≤4.0dB |
| Insertion Loss Fluctuation | ≤2.0dB |
| Return Loss | ≥40dB(SM) |
| Power Handling | ≤23dBm |
| Tensile Strength | ≤12N |
| Rotation Speed | 0～ 300 rpm (higher speeds can be customized) |
Estimated Lifetime |
>100 million rotations |
| Operating Temperature | -20～60℃ (-40～ 85℃ optional) |
| Storage Temperature | -50～85℃ |
| Weight (excluding tail cable and connector) | 1.6kg |
| Vibration and Impact Standard | GJB150 Land Mobile |
Protection Class |
IP54(IP65,IP67 optional) |
FRM①-②-③-④-⑤-⑥-⑦/⑧
Example 1:FRMA6-9/125-1310-1.2m-Φ2.0K-FC/PC ； Example 2:FRMB4-9/125-1550-FC/PC
①Model Type |
②Fiber Type
|
③Operating
Wavelength |
Tail Fiber |
| A(Fork Plate Type) B(Fork Pin Type) |
25/400(sparse model) 105/125(dense multi-modal model) 200/220(dense multi-modal model) 800/1000(dense multi-modal model) |
850 1064 1550 |
④Tail Fiber:length 1.2m,S (customer specified)
⑤Package:φ0.6mm,φ2mm,φ3mm,K=armor-clad
⑥Connector Type:FC,ST,SC,LC,N=no connector
⑦End Face Type:PC (flat),APC(angled)
|
