190～1250nm (UV) 300～2400nm (IR) Imaging fibre fiber Multi-core: 3000～100000 Numerical aperture (NA):>0.5
Price:
negotiate
MOQ:
1
Delivery Time:
Negotiable
Brand:
YOGEL
Product Description
190～1250nm (UV) 300～2400nm (IR) Imaging fibre fiber Multi-core: 3000～100000 Numerical aperture (NA):>0.5

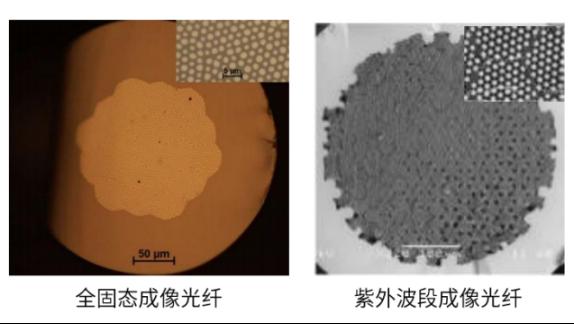

Our company has mastered the key technology of multi-core imaging fiber fabrication. Currently, we have successfully produced multi-core imaging fibers containing tens of thousands of cores, with a single-core numerical aperture (NA) reaching up to 0.59. These fibers are suitable for biomedical or medical endoscopic imaging applications.
Feature:
- High fiber core density and high resolution
- large numerical aperture
- Low transmission loss and low bending loss
- The transmission wavelength covers the ultraviolet to infrared spectrum.
Application:
- clinical medicine
- biological tissue imaging
- brain science research
Specification:
| Project | Metric | ||||||
| Optical fiber type | HPCS225 | HPCS336 | HPCS447 | HPCS6610 | HPCS8810 | HPCS101015 | HPCS151520 |
| core material | pure quartz | ||||||
| cladding material | hard plastic coating | ||||||
| operating wavelength (nm) | 190～1250 (UV), 300～2400 (IR) | ||||||
| number of cladding apertures | 0.37,0.43 | ||||||
| Core diameter (μm) | 200 | 300 | 400 | 600 | 800 | 1000 | 1500 |
| cladding diameter (μm) | 230 | 330 | 430 | 630 | 830 | 1035 | 1535 |
| Buffer layer diameter (μm) | 500 | 650 | 730 | 1040 | 1040 | 1500 | 2000 |
| Filter Tension (kpsi) | ≥100 (four-axis bending) | ||||||
| buffer material | Teflon (UV), nylon (IR) | ||||||
| Buffer temperature (℃) | -40 to +200 (Teflon), -60 to +105 (Teflon) | ||||||
