MU G.657A2 G625D DX 100M Fiber Optic Patch Cables
MU 2.0 3.0mm G. 657A2 SX DX Connector cores do patch cord jumper
Features:
1. High quality zirconium dioxide ceramic ferrule
2. Mature production technology and facility, stable interchangeability and repeatability
3. The length, outer diameter, ferrule end face and adapter customizable
4. Low insertion loss, high return loss
5. High dense connection, easy for operation
6. High credibility and stability
7. Good in repeatability and exchangeability
8. 100% test before shipment
Application:
Specifications:
| Item | Parameter | |||
Single Mode | Multi-Mode | |||
PC | UPC | APC | PC | |
Test wavelength | 1310/1550nm | 850/1300nm | ||
Insertion loss | Typ. ≤0.15 dB, Max. ≤0.30 dB | |||
Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | ≥35dB |
Repeatability | ≤0.10 dB | |||
Changeability | ≤0.20 dB | |||
Durability (1000 Mating) | ≤0.20 dB | |||
Connector end | SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC | |||
Cable jacket | PVC, OFNR, LSZH, OFNP | |||
Cable diameter | 3.0mm, 2.0mm, 1.6mm, 1.2mm, 0.9mm | |||
| Fiber type | Single Mode: G. 652D, G. 655, G. 657A2, etc. | |||
Cable length | 0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc. | |||
Fiber brand | Corning, Sumitomo, Fujikura, YOFC, TFO | |||
Fire resistant | IEC 60794-2-30 | |||

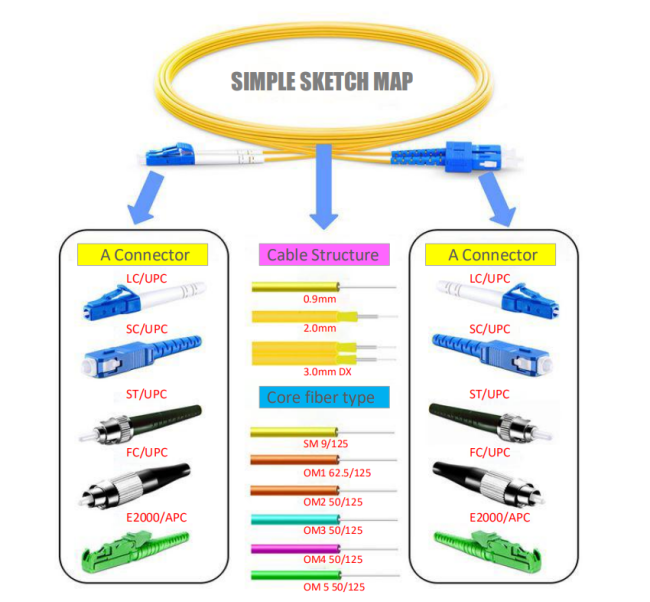

Order information:
Connector End A - Connector End B,
Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length
