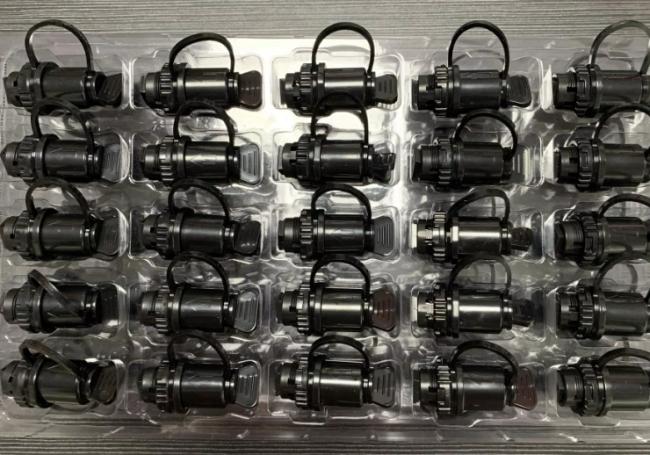

FTTA Corning Mini-SC Ip67 Fiber Optic Cable Connectors
FTTA Outdoor Fiber Optic Waterproof Connectors adapter can be compatible with Corning Mini-SC ip67
Specification
H Connector contains an adaptor and inner connector as the basis for coupling inside the adaptor/connector housing. The product ensures reliability and compatibility with a wide range of SC, LC and MPO connectors currently on the market. Products have been designed and tested to meet the stringent requirements necessary in environmental protection for outdoor application.
Characteristics
1. Connector is free floating inside of the coupling housing.
2. Easy Assembly and Compatible to Other Industrial Adapters.
3. Patent pending in USA but Patented in Taiwan and China.
Specifications
| Design and Test Criteria | Telcordia GR-3120 & GR-326 |
| Connector Type | SC, LC and MPO |
| Operation Temperature | -40°C to 70°C |
| Insertion loss | <0.3 dB |
| Reflection loss | < - 50dB (PC); <-65dB (APC) |
| RoHS | Free of Hazardous Substance |
Cable Specification:
| Item | Data |
| fiber | OS2,OM1,OM2,OM3,OM4 |
| Tension member | Aramid Kevlar,Armoured Tube |
| Max. attenuation |
SM:≤0.34dB/km at 1310nm,≤0.20dB/km at 1550nm MM:≤0.60dB/km at 1300nm,≤2.3dB/km at 850nm |
| Tensile resistance(short term) | 500N(no breakage) |
| Crush resistance(short term/long term) | 1000N/100mm |
| inflaming retarding | IEC 60332-3 |
| Temperature | -40~+70°C |
| Uvioresistant | PASS |
| Authentication | Meet with RoHS &UL |
Application:

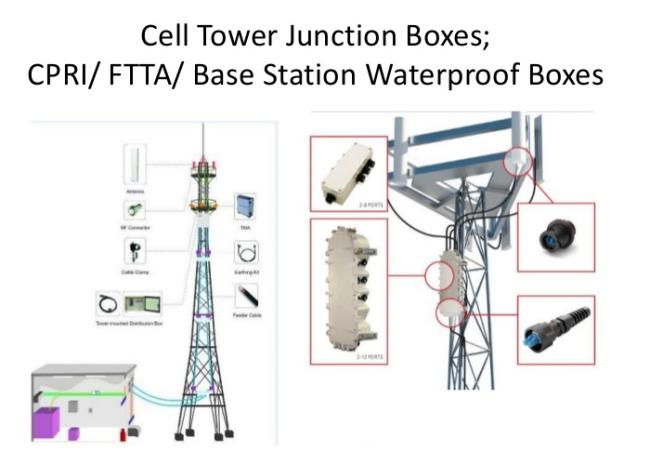

Provides superior weather resistance for FTTA and other outdoor applications.
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
Suitable for FTTA and outdoor temperature extremes
Ensures functionality in harsh weather environments
Can be installs without special tooling
Threaded style coupling
Provides bend protection for installation and long term use.
