SM-G.657A2 1x4 LGX Box PLC Splitter
1x4 SM -G.657A2 High Quality PLC plastic LGX Fiber Optic Splitters fiber optic plc splitter

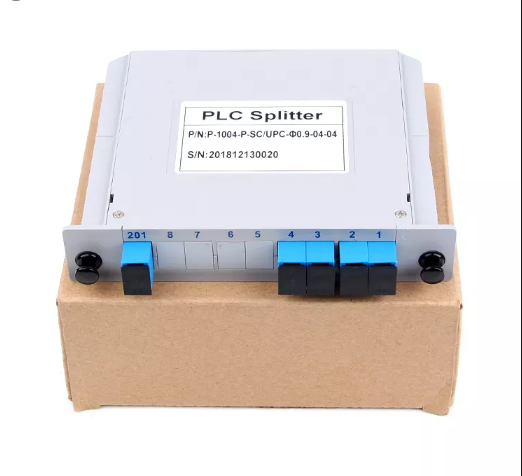

1x4 LGX Box PLC Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
Yogel offers both both tree and star type inline couplers/splitters. They provide a reliable solution to split/combine signals. The splitting ratio ranges from 1x2 to 1x64 ports for tree couplers, and from 2x2 up to 16x16 for star couplers. Single, dual and three wavelengths windows are available.
1x4 LGX Box PLC Splitter feature
1, Low Insertion loss
2, Low PDL
3, Compact Design
4, Good channel-to-channel uniformity
5, Wide Operating Wavelength:From 1260nm to 1650nm
6, Wide Operating Temperature: From -40°C to 85°C
7, High Reliability and Stability
1x4 LGX Box PLC Splitter application
1, FTTX Systems
2, PON Networks
3, CATV Links
4, Optical Signal Distribution
| Product name | 1x4 LGX Box PLC Splitter |
| Item | Parameter |
| Operating Wavelength | 1260~1650nm |
| Typ.Insertion Loss | 16.8 dB |
| Max.Insertion Loss | 17.2 dB |
| Max.Uniformity | 1.7 dB |
| Max.TDL | 0.5 dB |
| Max.PDL | 0.3 dB |
| Min.Return Loss | 50 dB |
| Min.Directivity | 50 dB |
| Operating Temperature | -40~+85°C |
| Storage Temperature | -40~+85°C |
