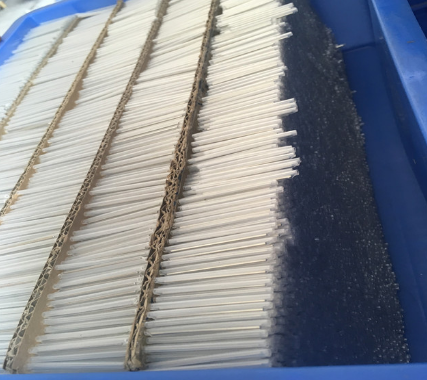

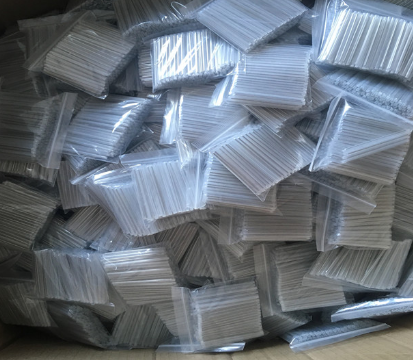

SM 0.9MM FTTB Fiber Optic Heat Shrink Sleeve
Product introduce:
Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.The sleeve can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.Mass means there are several cores for the fiber.
Performance parameters
| Items | Test method | Typical data |
| Operating Temperature range | 1EC216 | -55℃-100℃ |
| Tensile strength | ASTM D 2671 | 18 MPa |
| Fracture tensile Rate | ASTM D 2671 | 700% |
| Density | ISO R1183D | 0.94g/cm³ |
| Withstand pressure strength | IEC243 | 25KV/mm |
| Volumetric resistivity | ICE243 | 1015Ω.com |
| Dielectric constant | ICE243 | 2.5 |
| Longitudinal shrinkage Rate | ASTM D 2671 | ±5% |
| Bias Rate | ASTM D 2671 | 10% |
Big size splicing sleeve
|
Specifications |
Casing length | Hot Melt Pipe | Needle |
Package |
|||
| Outer diameter after contraction (mm) |
Length (mm) |
Inner diameter(mm) |
Height (mm) |
Inner diameter(mm) |
Height (mm) |
||
| YG-61 | 3.0 | 61 | 1.3 | 61 | 1.5 | 55 | 100pcs/bag |
| YG-45 | 3.0 | 45 | 1.3 | 45 | 1.5 | 40 | 100pcs/bag |
| YG-23 | 3.0 | 23 | 1.3 | 23 | 1.5 | 18 | 100pcs/bag |
Standard splicing sleeve
|
Specifications |
Casing length | Hot Melt Pipe | Needle |
Package |
|||
| Outer diameter after contraction (mm) |
Length (mm) |
Inner diameter(mm) |
Height (mm) |
Inner diameter(mm) |
Height (mm) |
||
| YG-61M | 2.5 | 61 | 1.3 | 61 | 1.2 | 55 | 100pcs/bag |
| YG-45M | 2.5 | 45 | 1.3 | 45 | 1.2 | 40 | 100pcs/bag |
| YG-40M | 2.5 | 40 | 1.3 | 40 | 1.2 | 36 | 100pcs/bag |
|
YG-30M
|
2.5 | 30 | 1.3 | 30 | 1.2 | 26 | 100pcs/bag |
| YG-25M | 2.5 | 25 | 1.3 | 25 | 1.2 | 21 | 100pcs/bag |
Small splicing sleeve
|
Specifications |
Casing length | Hot Melt Pipe | Needle |
Package |
|||
| Outer diameter after contraction (mm) |
Length (mm) |
Inner diameter(mm) |
Height (mm) |
Inner diameter(mm) |
Height (mm) |
||
| YG-60A | 2.4 | 60 | 1.3 | 60 | 1.0 | 58 | 100pcs/bag |
| YG-60T | 2.0 | 60 | 0.5 | 60 | 1.0 | 56 | 100pcs/bag |
| YG-40T | 2.0 | 40 | 0.5 | 40 | 1.0 | 36 | 100pcs/bag |
|
YG-40TS
|
1.7 | 40 | 1.0 | 40 | 0.7 | 39 | 100pcs/bag |
| YG-45TS | 1.7 | 45 | 1.0 | 45 | 0.7 | 44 | 100pcs/bag |
| YG-50TS | 1.7 | 50 | 1.0 | 50 | 0.7 | 49 | 100pcs/bag |
Standard splicing sleeve
|
Specifications |
Casing length | Hot Melt Pipe | Needle |
Package |
|||
| Outer diameter after contraction (mm) |
Length (mm) |
Inner diameter(mm) |
Height (mm) |
Inner diameter(mm) |
Height (mm) |
||
| YG-40S | 1.3 | 40 | 0.5 | 40 | 0.5 | 39 | 100pcs/bag |
| YG-25ST | 1.3 | 25 | 0.5 | 25 | 0.5 | 24 | 100pcs/bag |
| YG-18S | 1.3 | 18 | 0.5 | 18 | 0.5 | 17 | 100pcs/bag |
|
YG-15S
|
1.3 | 15 | 0.5 | 15 | 0.5 | 14 | 100pcs/bag |
| JTSP-10S | 1.3 | 10 | 0.5 | 10 | 0.5 | 9 | 100pcs/bag |
Fiber ribbon splicing sleeve
|
Specifications |
Casing length |
Hot Melt Pipe |
Needle |
Package |
|
| Inner diameter(mm) |
Height (mm) |
||||
| YG-6R | 40 | 2.9 | 3.8 | 1.65 | 100pcs/bag |
| YG-25ST | 40 | 4.1 | 5.1 | 2.10 | 100pcs/bag |
