Buildout Attenuators

Male to Female (M2F)

Plug-type LC Single-mode

Description
LC male-to-female attenuators contain doped fiber suitable for both 1310nm and 1550nm operation. Fixed attenuation values are available in 1dB increments from 1 to 30dB. We stock standard 5, 10, 15, 20dB attenuation levels in most styles.

Features

Latched push-pull type, small form factor (1.25 mm ferrule)
Maximum stability and reliability
Fixed Attenuation values from 1 to 30 dB
Optical performance 100% factory tested
Polarization insensitive & Flat spectral response - doped fiber
Compact design fits in existing connections or patch panels
Convenience and ease of handling
LC interface according to IEC 61754-20

Applications

Telecommunication Networks
Passive Optical Networks (B-PON, G-PON, E-PON)
CATV Networks
Data Communications
Local Area Networks
Multi-wavelength Systems Balancing
Optical Power Receivers Protection

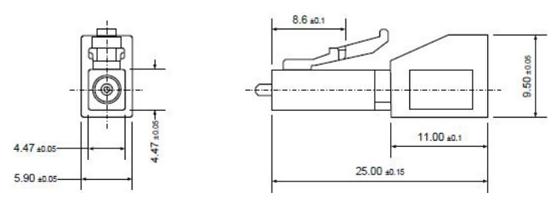

Dimensional Drawing

Specifications

Characteristics	Single-mode UPC	Single-mode APC	Test method / Conditions
Wavelength bandwidth	1260 to 1360 nm and 1460 to 1625 nm
Attenuation	from 1 to 30 dB, in steps of 1 dB		IEC 61300-3-4
Spectral tolerances	±15 % on nominal attenuation value at 1 to 4 dB ±10 % on nominal attenuation value at 5 to 30 dB		IEC 61300-3-7
Repeatability of IL	±0.1 dB		over service life
Return loss	> 50 dB	> 60 dB	IEC 61300-3-6
Durability	Min. 1000 mating cycles
Operating temperature	−25 to +70 °C
Housing material	Plastic (PEI), UL94-V0
Housing colour	Blue (UPC), Green (APC)
Ferrule	full ceramic

Reliability Testing

Item No.	Test Name	Additional Insertion Loss
A	Mechanism Durability	≤0.2dB
B	Repeatability	≤0.1dB
C	Lock Strength	≤0.2dB
D	Low Temperature	≤0.2dB
E	High Temperature	≤0.2dB
F	Steaming	≤0.2dB
G	Temperature Cycle	≤0.2dB
H	Vibration	≤0.2dB
I	Drop	≤0.1dB

Order Information

Model No.	Description
PBA-ALC/M-ALC/F-01-PH	Buildout Attenuator, LC/APC Male to LC/APC Female, 1dB, Plastic Housing
PBA-ALC/M-ULC/F-05-PH	Buildout Attenuator, LC/APC Male to LC/UPC Female, 5dB, Plastic Housing
PBA-ULC/M-ALC/F-10-PH	Buildout Attenuator, LC/UPC Male to LC/APC Female, 10dB, Plastic Housing
PBA-ULC/M-ULC/F-30-PH	Buildout Attenuator, LC/UPC Male to LC/UPC Female, 30dB, Plastic Housing
PBA-ULC/M-ULC/F-30-PH-DC	Buildout Attenuator, LC/UPC Male to LC/UPC Female, 30dB, Plastic Housing, Double Clips
