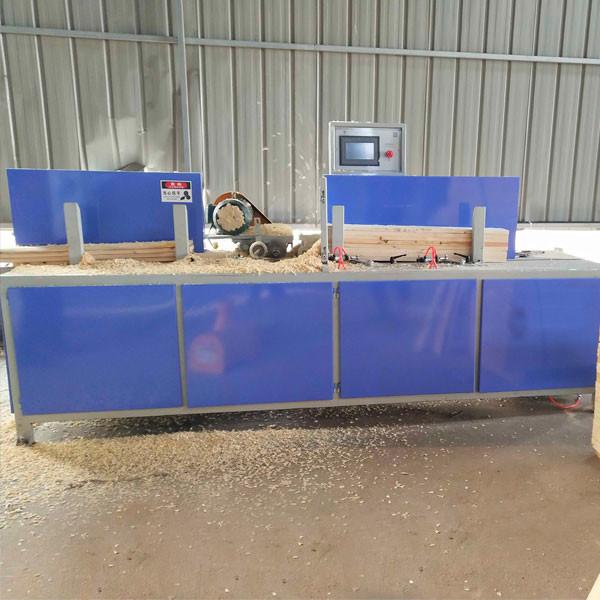

Deck Board Pallet Chamfering Machine
Wood Deck Board Pallet Chamfer Machine
Wood pallet chamfer machine is used to chamfering the bottom stringer with a small edge and make the lift fork that can hold the wood pallet easily.
When the equipment is running, the worker puts the whole piece of wood to be processed on the operation table. When placing the wood, it is necessary to pay attention to placing the wood in the feeding trough of the machine operation table to prevent the wood material from shifting during the movement. The wood is pushed forward at a constant speed to the cutting blade as the chain runs, and the blade rotates the milling edge. The wood from the side of the milling is pushed along with the running chain to the finished product discharge chute, and the milling process is completed.
Pallet chamfer machine parameters
| Power | 4.5 kW |
| Capacity | 500-700 pieces/hour |
| Chamfer length | 1300 mm |
| Chamfer width | 90-130 mm |
| Chamfer thickness | 30-40 mm |
| Blade material | alloy |
| Working mode | continuous automatic feeding and discharging, 2 side at the same time out |
| Weight | 350 kg (using stepper motor control system) |
| Dimensions | 3000*700*1300 mm |
- Pallet chamfer function: the wooden pallet bottom plate automatically pours out the corners, which is convenient to push the cart, the forklift enters and leaves.
- Easy Operation: 1 worker.
- Capacity: 500-700 pieces/hour
- Wood board specification: 80-145 mm
- Working mode: automatic feeding
