Pallet Timber Cutting Machine

Price Negotiable

Price: Negotiation

MOQ: 1 set

Delivery Time: 15-45 work days

Brand: ThoYu

Product Description

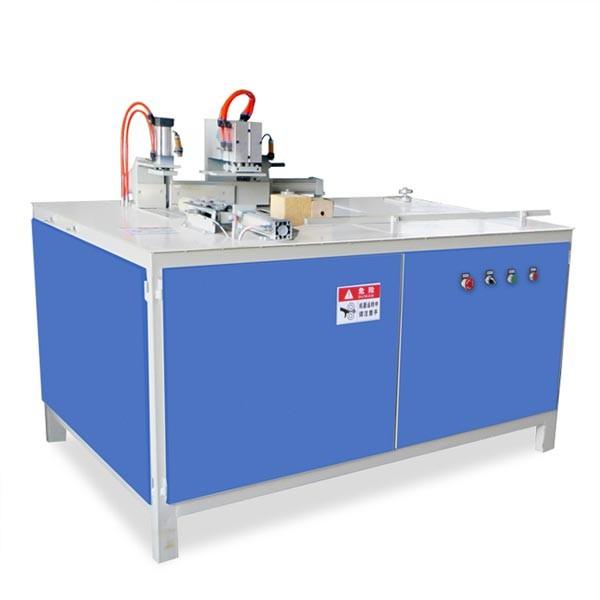

Pallet Block Cutting Saw / Wood Block Cutter

Introduction of Pallet Block Cutting Saw / Wood Block Cutter

Pallet block cutting saw is suitable for processing shavings pallet blocks, solid woods, multi-layer woods. Pallet block cutting saw is stable, efficient, safe, and simple, and so on. And it is also dominant in wood pallet processing equipment.

Technical Parameters of Pallet Block Cutting Saw / Wood Block Cutter

Model	TY-1250DP
Capacity	5 m³/hour
Overall dimension	196015601360 mm
Main motor power	22 kW
Feeding motor power	1.1 kW
Max cut length	1250 mm
Max cut width	200 mm
Max cut thickness	110 mm
Speed of mainshaft	3000 r/min
Processing accuracy	0.5 mm
Net weight	1100 kg

Features of Pallet Block Cutting Saw / Wood Block Cutter

High production efficiency, with cutting 5 m³ in one hour.
The bullet-proof chain is installed at the inlet to prevent the wood chips from rebounding. And the slope is installed at the discharge port, and the discharge is smooth, preventing the wood from flying out.
There is a safety shield on the top of pallet block cutting saw, so it is safer to place the wood.
The whole process is automatic feeding, the upper and lower shaft structure, multi-piece sawing, continuous discharging, so the efficiency is increased by 5-6 times, and the sawing road is thinner than other machines.
Excellent quality motor for long service life.
The multi-blade sawing process is stable, the sawing precision is high, the surface is smooth and flat, no need to re-process, and reducing wood waste.

Characteristics of Pallet Block Cutting Saw / Wood Block Cutter

The power-enhanced feeding conveyor is strong and powerful, reducing the labor intensity of workers and making the sawing logs more stable.

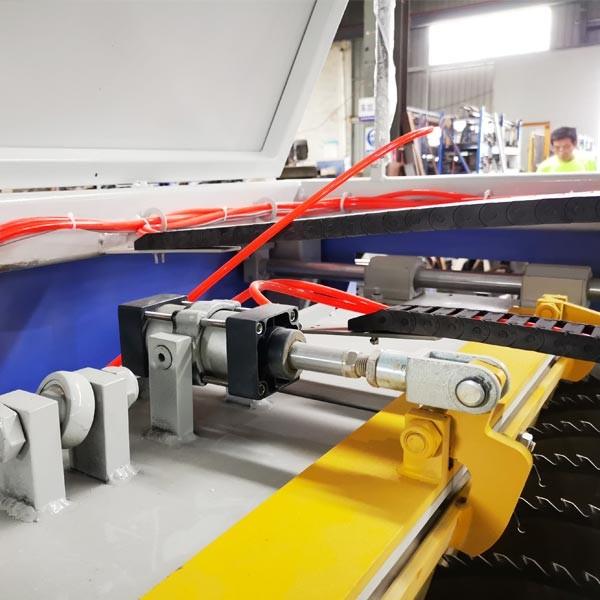

Powerful cylinder drives feeding, and low failure rate. High quality imported transmission chain is with durability.
Chain plate/chain feeding, and navigation sheet discharge, is suitable for processing shorter wood. The feeding chain penetrates the machine frame, and the whole chain feeding can cut the shorter wooden side and the sawing is smoother. Pallet block cutting saw can make it more economical than other types of multi-blade saws.
Pallet block cutting saw is fully automatic feeding and unloading, maximizing efficiency, and one-man operation.
The operation greatly saves labor and improves the utilization rate of the wood. When feeding, the wood is pressed up and down, and the cutting is stable.
