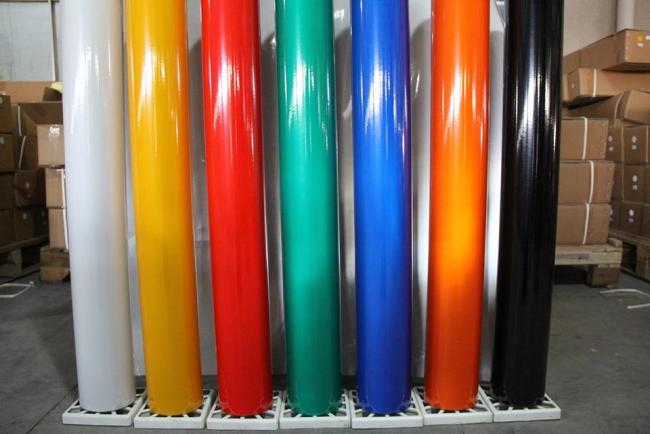

Commercial Grade Glassbead Type Acrylic Material Reflective Sheeting Vinyl 3200 For Traffic Sign
| Surface film | Acrylic |
| Thickness of the film | 0.1 + 0.005mm |
| thickness of glue | 0.020 + 0.005mm |
| Thickness of release paper | 145+-5g/sqm |
| Type of adhesive | Pressure-sensitive Acrylic type |
| Strength of adhesive | at the condition of 0.8kg, 5min, total length: 10cm, the falling length: ≤2cm |
| Operation temperature | 18 to 25°C |
| Working temperature | -20 to 60°C |
| Weight per sqm | 300gSM |
| Carton size | 132*20.5*22(cm) |
| Standard light source | D65 |
Standard light source : D65 Observation condition: 45/0 Observation angle: 2 degree.
color |
Color Chromaticity | Luminance Factor |
|||
| X Y | X Y | X Y | X Y | ||
| White | 0.350 0.360 | 0.300 0.310 | 0.285 0.325 | 0.355 0.375 | ≥0.27 |
| Yellow | 0.545 0.454 | 0.464 0.534 | 0.427 0.483 | 0.487 0.423 | 0.16---0.40 |
| Red | 0.690 0.310 | 0.658 0.342 | 0.569 0.341 | 0.595 0.315 | 0.03---0.10 |
| Green | 0.007 0.703 | 0.026 0.399 | 0.177 0.362 | 0.248 0.409 | 0.03-0.10 |
| Blue | 0.078 0.170 | 0.137 0.038 | 0.210 0.160 | 0.150 0.220 | 0.01---0.10 |
| Observation Angle | Entrance Angle |
White |
Yellow |
Red |
Green |
Blue |
| 0.33° | -4 ° | 30 | 15 | 5 | 4 | 2.5 |
Feature:
Tearable, easy operation, with extensibility;,Screen Printable.3-year service life, can be used in cutter plotter
Application:
Traffic signs, advertisement signs, temporary construction signs,temporary signs, construction signs and body film
Notes:
The reflective sheeting is better to keep and cut between the 18-28ºC; when working, the working area and tools should be clean. The unused after opening, should be rolled back tightly along the primary direction and fixed, the inner tube diameter should be more than 10cm
Packing:
1.Hard tube
2.As per customer requirement
3.Export packing-thick core and cartons, two sides with plug, put on pallets, wrap with shrink film
Within 10-15 days,after receive the deposit
