FRP Panel EURO 5 150hp Thermo King Truck Refrigeration Units

Price Negotiable
Price: USD
MOQ: 2
Delivery Time: 20-35 work day
Brand: THERMO KING
Product Description



Newst Frp Xps Panel Hot Sale In Vietnam , We Also Supply Stainless Steel & Aluminum Plane



product Introductionn:

Horsepower:150 - 250hp
Emission Standard:EURO 5
Fuel Type:Diesel
Dimensions (L x W x H) (mm):8045*2245*3330 mm
Box Dimensions (L x W x H) (mm):5900*2035*1995
Temperature Range:-40° ~ +15°
Gross Vehicle Weight:9980
Volume ::28 CBM
Emission standards::Euro 5
Car body material::inside and outside FRP
Insulation material::8cm high density polyurethane
Base material::non-slip pattern aluminum plate
Rear door lock::stainless steel
Name:meat transport refrigerated truck
Refrigeration unit:0- ~18℃ with Defrost function
Warranty:1year
Year:2020

SPECIFICATIONS T-600M T-700M T-800M T-900M T-1000M T-1100M
REFRIGERATION CAPACITY: SYSTEM NET COOLING CAPACITY AT 30°C AMBIENT TEMPERATURE UNDER A.T.P. CONDITIONS



Engine Power (W)

0℃ 6,000 6,550 7,600 8,050 9,150 10,600
  -20℃ 3,700 4,000 4,300 4,500 5,450 5,700



Electric Stand-by (W)

0℃ 3,700 4,600 5,900 6,200 6,400 6,720
  -20℃ 2,600 3,200 3,300 3,470 4,200 4,410
HEATING CAPACITY: BOX TEMPERATURE 2℃, AMBIENT TEMPERATURE -18℃
Engine power(W) 3,100 3,100 3,100 3,100 4,100 4,100
Engine power and Water-heating(optional)(W) 6,300 6,300 6,300 6,300 7,300 7,300
AIRFLOW: ON HIGH SPEED ENGINE OPERATION
Airflow volume @ 0 Pa static pressure (m3/h) 2,700 2,700 2,700 2,700 3,200 3,200
WEIGHT: NOT INCLUDES BATTERY
Model 30: cooling and heating on engine operation (kg) 443 440 443 440 461 457
Model 50: cooling and heating on engine and stand-by operation (kg) 468 465 468 465 510 505
ENGINE: LOW EMISSIONS, 3 CYLINDER, LIQUID COOLED
Model TK 370 TK 370 TK 370 TK 370 TK 376 TK 376
Rating (kW) 11.2 11.2 11.2 11.2 14.6 14.6
Maintenance interval (hr) 2,000 2,000 2,000 2,000 2,000 2,000
COMPRESSOR: LIGHTWEIGHT ALUMINIUM ALLOY
Model X214 X214 X214 X214 X426 C5 X426 C5
Displacement (CC) 228 228 228 228 426 426
ELECTRIC STAND-BY OPTION
Voltage / Phase / Frequency (V/Ph/Hz) 380V/3Ph/50Hz
Rating (kW) 4.5 4.5 4.5 4.5 7.5 7.5
REFRIGERANT: R-404A ZERO OZONE DEPLETION POTENTIAL (ODP), INTERNATIONALLY APPROVED
Charge (kg) 3.6 3.0 3.9 3.0 4.1 3.0



T-Series:
Thermo King’s new T-Series is the result of years of R&D and exhaustive testing. Built on the proven reliability of the TS and MD product ranges, the T-Series sets new industry standards for reliability, performance and eciency. The range has been specially developed to exceed your and your customers’ expectations when it comes to truck refrigeration. The T-Series delivers greater capacities at lower operating speeds and allows for precise temperature control. Low operation and maintenance costs, as well as fuel saving technologies, make sure you save money throughout your unit’s life cycle. Easy system operation reduces the risk of user errors, while easy service and monitoring allow the unit to run at optimum eciency at all times. The T-Series also sets new standards when it comes to the reduction of emissions, waste and noise pollution, oering unmatched performance with minimal environmental impact. Whatever your application and needs, the T-Series is available in a complete range of capacities, making it the perfect fifit for all your transportation requirements.







T-Series Key Features:

Low fuel consumption Lower life cycle costs



• Through extensive development and field experience, Thermo King have found the right balance between

4 system eficiency, fuel consumption and performance in all ambient conditions for both fresh and frozen

produce

• Advanced fuel-saving control technology with the new TSR controller means greater fuel eficiency



T-Series Dimension(mm):

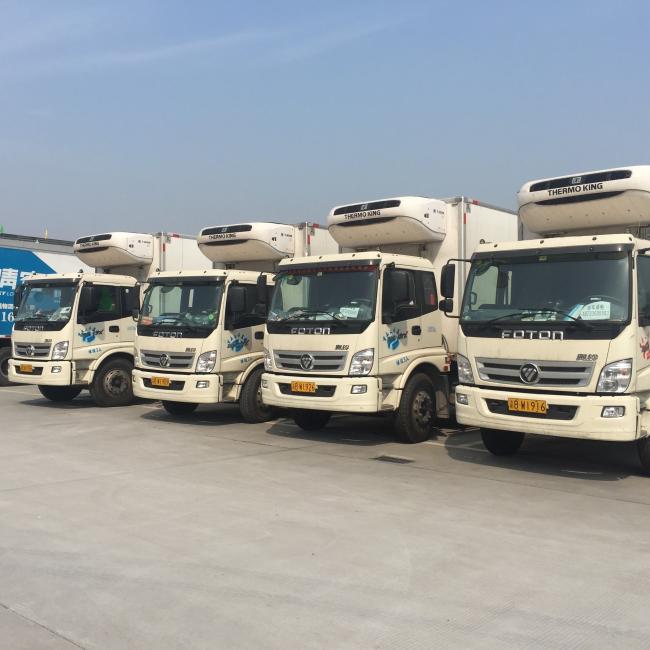

Applied Scene
