JZX 7" 180X3X22.23 Abrasive Depressed Center Metal Grinding Discs
Hebei Double Goats JZX 7" 180X3X22.23 Grinder Abrasive Depressed Center Cutting And Grinding Discs Wheel
Our factory,”Grassland”and "JZX" grinding wheel, established in 1995,located in Hebei Province,near by Tianjin Port and Beijing airport, which mainly focus on producing various sizes(Φ75-Φ400mm) of resin cutting and grinding wheels, with daily production capacity of 400,000 pcs.100% exported to more than 70 countries and regions in Europe, the Middle East, South America, Africa, and Southeast Asia, etc.
JZX grinding and cutting discs last longer and enable fast, energy-saving work. Here, safety plays a very important role. GRASSLAND grinding and cutting discs comply with international standards and safety requirements such as EN 12413, ISO9001. The careful selection and combination of high-quality raw materials pays for itself. Tests show: a small price advantage achieved by using raw materials of lower quality frequently reduces the performance or operational life by half.
Description

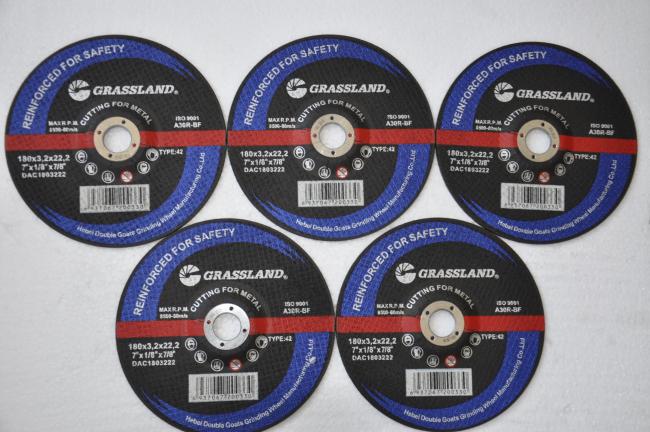

180X3.2X22.23 JZX Metal grinding discs
Premium sharp aluminium oxide grain and superior bond system provide exceptional performance in even the most demanding cutting applications on steel and stainless steel.
Features:
Optimum cutting capacity with long service life
High break resistance
Free of iron, cholrine and sulfur (≤ 0.1%)
Meets the maximum safety requirements in accordance with the EN 12413 European standard
Application area
Used to cut solid materials, pipes, profiles and stainless steel sheels.
| Cutting wheel information: | |||
| Product Name |
180mm Metal Grinding discs |
Abrasive | Premium Brown Aluminum oxide |
| Hardness | R Grade | Net Standard | Reinforced fiberglass Mesh |
| Max working speed |
80 m/s
|
OEM Service | Acceptable |
| R.P.M | 8500 | Package |
Kraft Carton and Pallet
|
| Grit size | 24#,30#, | HS Code | 68042210 |
|
Certificate
|
MPA EN12413,ISO9001
|
Loading Port | Tianjin or else |
1-Depressed center wheel For metal
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Depressed Cutting disc for metal 80m/s | DAC1002516 | T42-100X2.5X16MM | PC | 200 | 8/9 | 22*22*20.2 |
| DAC1152522 | T42-115X2.5X22.2MM | PC | 200 | 12/13 | 24.5*24.5*20.2 | |
| DAC1252522 | T42-125X2.5X22.2MM | PC | 200 | 14/15 | 26.5*26.5*20.2 | |
| DAC1502522 | T42-150X2.5X22.2MM | PC | 150 | 15/16 | 34*26*17 | |
| DAC1802522 | T42-180X2.5X22.2MM | PC | 150 | 19.5/20.5 | 40*20*26 | |
| DAC2302522 | T42-230X2.5X22.2MM | PC | 50 | 11.5/12.5 | 24*24*20.7 | |
| DAC2502522 | T42-250X2.5X22.2MM | PC | 50 | 11.5/12.5 | 25*25*19 | |
| Depressed Cutting disc for metal 80m/s | DAC1003216 | T42-100X3.2X16MM | PC | 400 | 21.5/20.5 | 22X22X19.7 |
| DAC1153222 | T42-115X3.2X22.2MM | PC | 200 | 14/15 | 24.5*24.5*22.2 | |
| DAC1253222 | T42-125X3.2X22.2MM | PC | 200 | 16/17 | 26.5*26.5*22.2 | |
| DAC1503222 | T42-150X3.2X22.2MM | PC | 200 | 25/26 | 32*32*22.2 | |
| DAC1803222 | T42-180X3.2X22.2MM | PC | 100 | 18/19 | 37.5*19*23.7 | |
| DAC2303222 | T42-230X3.2X22.2MM | PC | 50 | 14/15 | 24*24*23.7 | |
| DAC2503222 | T42-250X3.2X22.2MM | PC | 50 | 17.5/16.5 | 25*25*21 |
1-Flat cutting discs wheel For metal
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Flat cutting disc for metal 80m/s | FAC0751095 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
| FAC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
| FAC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
| FAC1002016 | T42-100X2.0X16MM | PC | 400 | 15/16 | 27.7*22*22 | |
| FAC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
| FAC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
| FAC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9.5/10.5 | 24.5*24.5*13.2 | |
| FAC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
| FAC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
| FAC1252022 | T41-125X2.0X22.2MM | PC | 200 | 10.5/11.5 | 26.5*26.5*13.2 | |
| FAC1501622 | T41-150X1.6X22.2MM | PC | 200 | 12/13 | 32*32*11.7 | |
| FAC1502022 | T41-150X2.0X22.2MM | PC | 200 | 16.5/17.5 | 32*32*13.2 | |
| FAC1801622 | T41-180X1.6X22.2MM | PC | 200 | 20/21 | 37.5*19*22.7 | |
| FAC1802022 | T41-180X2.0X22.2MM | PC | 100 | 10.5/11 | 37.5*19*13.2 | |
| FAC2301622 | T41-230X1.6X22.2MM | PC | 50 | 8/9 | 24*24*11.7 | |
| FAC2302022 | T41-230X2.0X22.2MM | PC | 100 | 18.5/19.5 | 24*24*25.7 |
