4-1/2 Inch 115mm En 12413 Metal Cutoff Wheel For Grinder
Price:
US$0.2-0.3
MOQ:
10000 PCS
Delivery Time:
30-60 Days
Brand:
Grassland
Product Description

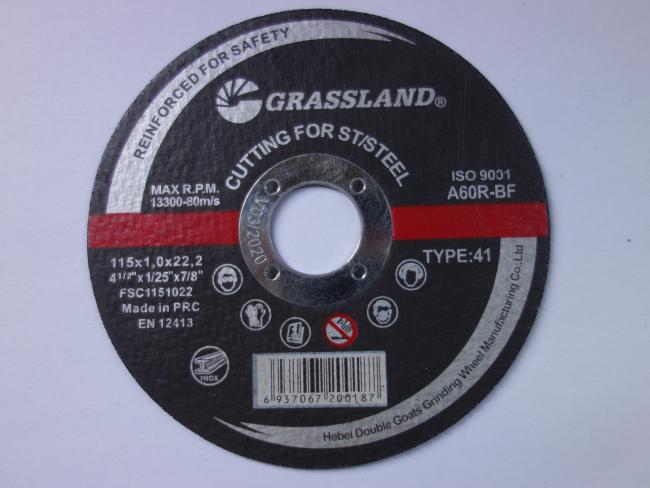

4-1/2 Inch 115mm Metalworking Cut-Off Cutting Wheels for grinder
Products Description--
4.5'' x 1/25'' x 7/8''
• Diameter: 115mm (4.5 inch)
• Thickness: 1.0~1.2 mm
• Hole/Bore: 22.23mm
• Vmax: 80 m/s
• Max RPM: 13300
• Contaminant Free: Iron Sulfur, Chlorine ≤0.1%
-Heat-Treated Aluminum Oxide grain for cutting all metals including stainless steel and non-ferrous metals
-Double external reinforced with high tensile strength fiberglass
-Extra thin design for smooth and fast cutting at less power
-Cuts without vibrations or burrs
GRASSLAND 115×1 mm cutting wheel is a special type of accessories for small angle grinders with help of which different metals and cast iron can be cut. This disc is also used when working with plastic. The peculiar feature of these accessories is that the disc has a double fiberglass net, which increases durability and provides load resistance.and get excellent sharpness and be fast burr free cutting, quickly and effortlessly cutting through All Metal, Steel and Stainless Steel including rebar, steel pipe, structural & galvanized steel, sheet metal, structural tubing, black steel
Applications:
Suitable for steel and tool steel.
Typical applications:
• Foundries;
• Shipyards;
• Steelwork;
• Maintenance;
• General fabrication.
| Cutting wheel information: | |||
| Product Name | Metal cutting wheel | Abrasive | Monocrystalline fused alumina |
| Hardness | R Grade | Net Standard | Reinforced fiberglass |
| Max working speed |
80 m/s |
OEM Service | Acceptable |
| R.P.M | 13300 | Package |
Kraft Carton and Pallet |
| Grit size | 24#,30#,46#, | HS Code | 68042210 |
|
Certificate |
MPA EN12413,ISO9001 |
Loading Port | Tianjin or else |
-Depressed center Inox grinding discs
| Item Code | Dimension | Dimension | Speed | Standard |
| (MM) | (Inch) | (r.p.m) | ||
| DAC1002516 | 100*2.5*16 | 4*3/32*5/8 | 15200 | 80m/s |
| DAC1003016 | 100*3.0*16 | 4*1/8*5/8 | 15200 | 80m/s |
| DAC1152522 | 115*2.5*22.23 | 4-1/2*3/32*7/8 | 13300 | 80m/s |
| DAC1153022 | 115*3.0*22.23 | 5*1/8*7/8 | 13300 | 80m/s |
| DAC1252522 | 125*2.5*22.23 | 6*3/32*7/8 | 12200 | 80m/s |
| DAC1253022 | 125*3.0*22.23 | 7*1/8*7/8 | 12200 | 80m/s |
| DAC1502522 | 150*2.5*22.23 | 4-1/2*3/32*7/8 | 10200 | 80m/s |
| DAC1503022 | 150*3.0*22.23 | 5*1/8*7/8 | 10200 | 80m/s |
| DAC1802522 | 180*2.5*22.23 | 6*3/32*7/8 | 8500 | 80m/s |
| DAC1803022 | 180*3.0*22.23 | 7*1/8*7/8 | 8500 | 80m/s |
| DAC2302522 | 230*2.5*22.23 | 9*3/32*7/8 | 6600 | 80m/s |
--Flat inox cutting discs
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Flat cutting disc for inox/Alu 80m/s | FSC0751009 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
| FSC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
| FSC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
| FSC1002016 | T41-100X2.0X16MM | PC | 400 | 15/16 | 29.7*22*22 | |
| FSC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
| FSC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
| FSC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9.5/10.5 | 24.5*24.5*13.2 | |
| FSC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
| FSC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
| FSC1252022 | TT41-125X2.0X22.2MM | PC | 200 | 10.5/11.5 | 26.5*26.5*13.2 | |
| FSC1501622 | T41-150X1.6X22.2MM | PC | 200 | 12/13 | 32*32*11.7 | |
| FSC1502022 | T41-150X2.0X22.2MM | PC | 200 | 16.5/17.5 | 32*32*13.2 | |
| FSC1801622 | T41-180X1.6X22.2MM | PC | 200 | 20/21 | 37.5*19*22.7 | |
| FSC1802022 | T41-180X2.0X22.2MM | PC | 100 | 10.5/11 | 37.5*19*13.2 | |
| FSC2301622 | T41-230X1.6X22.2MM | PC | 50 | 8/9 | 24*24*11.7 | |
| FSC2302022 | T41-230X2.0X22.2MM | PC | 100 | 18.5/19.5 | 24*24*25.7 |
