China Screwed Height 745mm 200BIL Transformer Porcelain Bushing for sale

Screwed Height 745mm 200BIL Transformer Porcelain Bushing

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: 35DAYS

Brand: CPE

Product Description

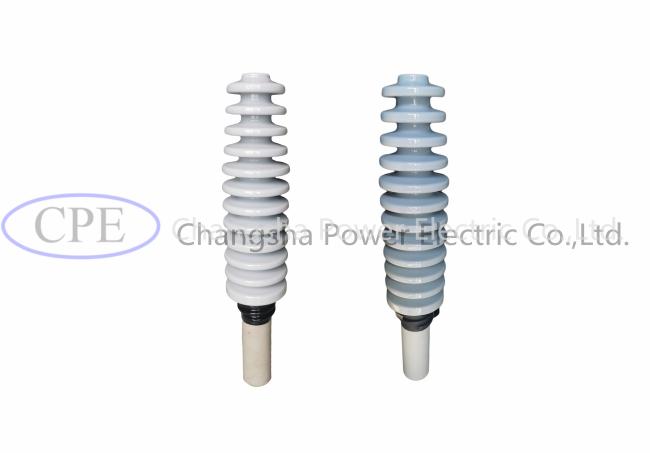

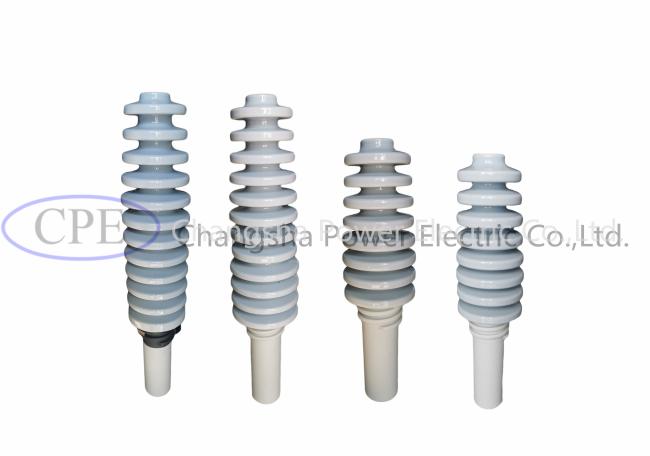

ANSI 36kV screwed transformer porcelain bushing light gray glaze

Description:

ANSI CLASS	Height(mm)	Creepage distance (mm)	Dry arcing distance (mm)	BIL(kV)	Torsion strength (N.m)
36kV	745	1055	467	200	20.3

The ANSI HV transformer bushing is the main insulating device outside the transformer box.

The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.

Applications:

Normally the bushing will be assembled with related hardwares and equiped in power transformer and distribution transformers etc.

Competitive advantages:

The porcelain glaze are smooth and shinning , it is easy for maintenance .

we tested each unit of transformer bushing to be sure all bushings are qualified . the tests including

routine visual inspection and electrical flashover test

sample test , for example dimensional check , porosity test etc.

on every lot of bushings.

in this case the user can use our product safely .

OEM product are available .
