ETL High Frequency 3KW Solar Power Inverter

Price Negotiable

Price: 179＄-187＄

MOQ: 1pcs

Delivery Time: Sample: 1-2days Bulk Order: 10-15days

Brand: SUG

Product Description

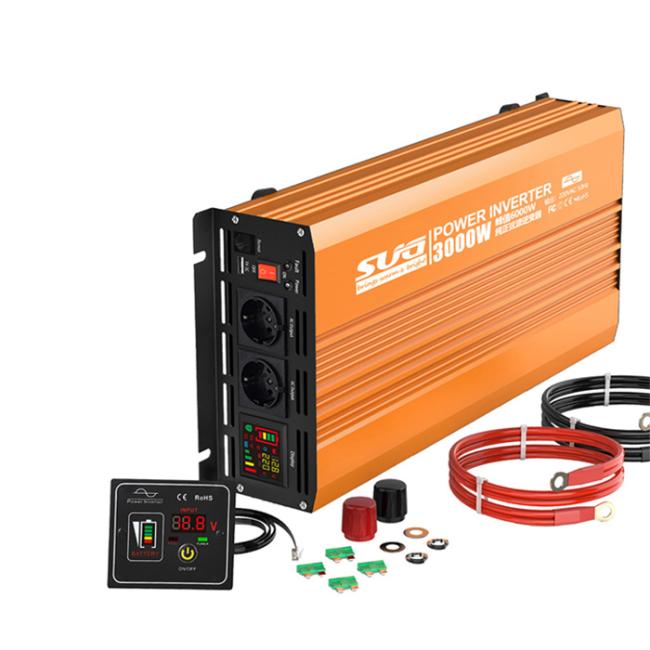

ETL High Frequency 3KW Solar Power Inverter

Description of the Products:

Pure sine wave inverter Smart-3000W offering superior quality true sine wave power, it is designed to operate popular power tools and inductive loads, The AC output waveform is even better than the power supplied by your utility.

We provide 2 years warranty. We will provide the spare parts for free within the warranty year, even though exceeding the warranty year, we will still provide help because we want to have a long cooperation.

Big transformer and designed by ourselves and low consumption

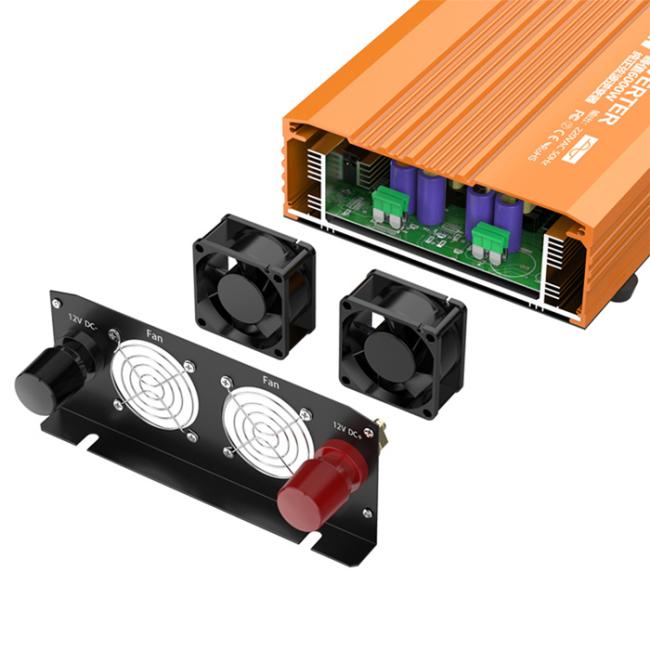

Cooling by aluminum heatsink, reduce temperature efficiency

Application area:

Our inverter are used in a widely area, such as cars, solar system, camping, daily backup and all

kinds of electric appliance.

Products Specification:

Model	SGPR3000A-121	SGPR3000A-122	SGPR3000A-241	SGPR3000A-242	SGPR3000A-481	SGPR3000A-482
Rated Power	3000W
Surge Power	6000W(few seconds)
Input Voltage	12VDC		24VDC		48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5V 1A
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD＜3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	0.6A		0.3A		0.1A
DC Voltage Range	10-15.5V		20-31V		40-61V
Low Voltage Alarm	10.5±0.5V		21±0.5V		42±1V
Low Voltage Shut Down	10±0.5V		20±0.5V		40±1V
Low Voltage Recovery	13±0.5V		24±0.5V		48±1V
Over Voltage Shut Down	15.5±0.5V		31±0.5V		61±1V
Over Voltage Recovery	14.8V±0.5V		29V±0.5V		59V±1V
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit, Reverse Polarity
Working Temperature	-10℃ - +50℃
Net Dimension	4121.615.6cm (L×W×H)
Meas./Ctn	56.530.824cm /1 pcs
N.W./Unit	9kg
G.W./Ctn	11.1KGS
Packing	Carton
Warranty	2 Years
