USA Socket FCC DC AC Solar Inverter For Car
USA Socket FCC DC AC Solar Inverter For Car
Details of the Products:

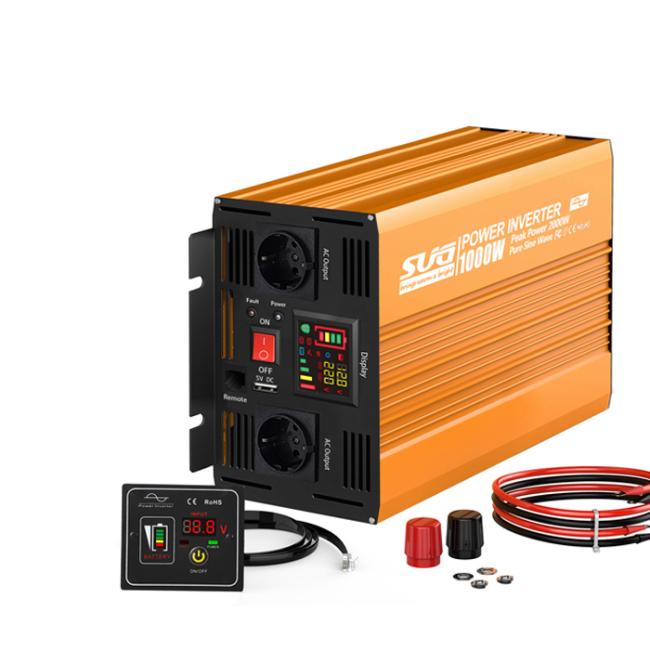

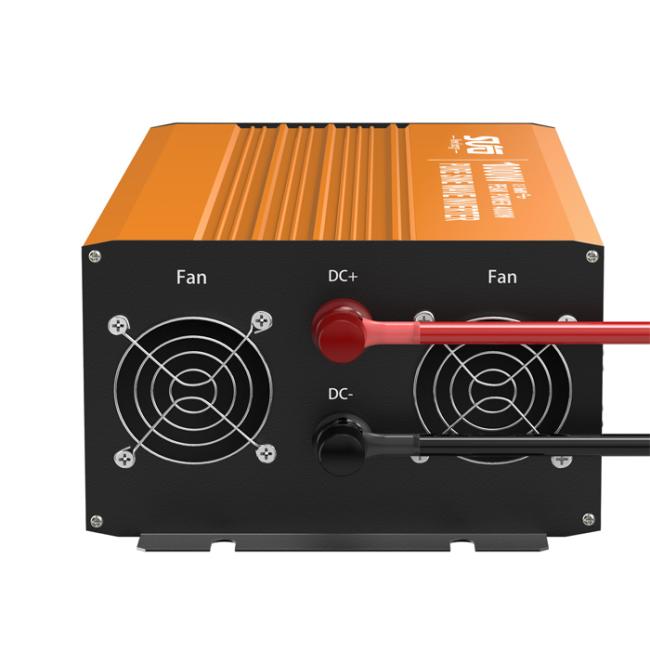

SGPR series is our new designed products.
Its rated power is 1000w and surge power is 2000w.
The advantages of the high frequency pure sine wave inverter is light, easy to carry and low price.
For the 1000w inverter, you can run computer, LED light, TV, fridge and so on.
FAQ:
1.How much power can I get from my cigarette lighter?
DC cigarette lighter adapters commonly used in vehicles average 150 watts to 180 watts, UL recommended rating for a cigarette outlet is 80 watts max; This is because the wiring within the port is small, as well as, fused at 15 amps DC
2.How does a transfer switch work?
Transfer switches are designed to isolate multiple sources of AC power. When one source power is eliminated from the system, the next source of power is automatically applied. Also, the AIMS Power transfer switch unit is easily installed via separate terminals for each power source.
Products Specification:
| Model | SGPER1000-121 | SGPER1000-122 | SGPER1000-241 | SGPER1000-242 | SGPER1000-481 | SGPER1000-482 |
| Rated Power | 1000W | |||||
| Surge Power | 2000W(few seconds) | |||||
| Input Voltage | 12VDC | 24VDC | 48VDC | |||
| Output Voltage | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% |
| USB Port | 5V 0.5A | |||||
| Frequency | 50Hz±3 or 60Hz±3 | |||||
| Output Waveform | Pure Sine Wave | |||||
| Soft Start | YES | |||||
| AC Regulation | THD<3%(Linear Load) | |||||
| Output Efficiency | 94% MAX | |||||
| No Load Current | 0.6A | 0.3A | 0.1A | |||
| DC Voltage Range | 10-15.5V | 20-31V | 40-61V | |||
| Low Voltage Alarm | 10.5±0.5V | 21±0.5V | 42±1V | |||
| Low Voltage Shut Down | 10±0.5V | 20±0.5V | 40±1V | |||
| Low Voltage Recovery | 13±0.5V | 24±0.5V | 48±1V | |||
| Over Voltage Shut Down | 15.5±0.5V | 31±0.5V | 61±1V | |||
| Over Voltage Recovery | 14.8V±0.5V | 29V±0.5V | 59V±1V | |||
| Cooling Way | Intelligent Cooling Fan | |||||
| Protection | Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit | |||||
| Working Temperature | -10ºC - +50ºC | |||||
| Net Dimension | 28.6*16.5*9.2cm (L×W×H) | |||||
| Meas./Ctn | 48*46*40cm / 6pcs | |||||
| N.W./Unit | 3.1KG | |||||
| G.W./Ctn | 22KGS | |||||
| Packing | box | |||||
| Warranty | 2 Years | |||||
Products Display:
New Release: 12V/24VDC Double Input Modified Sine Wave Inverter, Auto Recognize
