Pure Sine Wave 120vac PV Power Inverter 600w Overload Protection

Price Negotiable

Price: usd+58-53+pcs

MOQ: 1pcs

Delivery Time: Sample: 1-2days Bulk Order: 10-15days

Brand: SUG

Product Description

72vdc/120vac High Frequency Inverters Manufacturer 600w

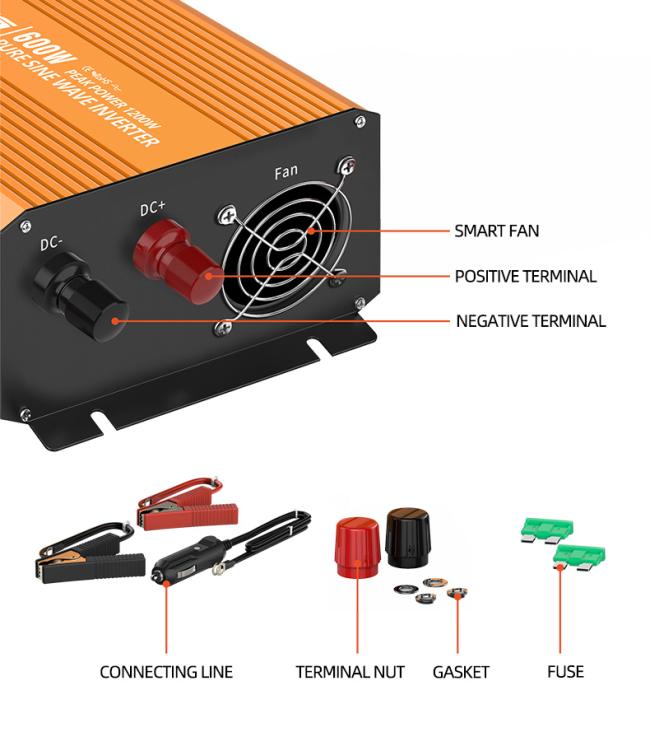

The input side is with intelligent cooling fan, positive terminal, negative terminal.

The fan is intelligent temperature control fan, it works when the temperature is more than 45℃,

it stops when the temperature is less than 45℃.

Products Specification:

Model	SGPE600-121	SGPE600-122	SGPE600-241	SGPE600-242	SGPE600-481	SGPE600-482
Rated Power	600W
Surge Power	1200W(few seconds)
Input Voltage	12VDC		24VDC		48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5V 0.5A
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD<3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	0.6A		0.3A		0.1A
DC Voltage Range	10-15.5V		20-31V		40-61V
Low Voltage Alarm	10.5±0.5V		21±0.5V		42±1V
Low Voltage Shut Down	10±0.5V		20±0.5V		40±1V
Low Voltage Recovery	13±0.5V		24±0.5V		48±1V
Over Voltage Shut Down	15.5±0.5V		31±0.5V		61±1V
Over Voltage Recovery	14.8V±0.5V		29V±0.5V		59V±1V
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature	-10ºC - +50ºC
Net Dimension	20.2158cm (LWH)
Meas./Ctn	633438.5cm / 10pcs
N.W./Unit	2.0KG
G.W./Ctn	24KGS
Packing	box
Warranty	2 Years
