Silent Fan 36VDC Pure Sine Wave Grid Tied Pv Inverter For Car
MOQ:
1pcs
Delivery Time:
Sample: 1-2days Bulk Order: 10-15days
Brand:
SUG
Product Description
36VDC To 220VAC Pure Sine Wave Inverter 600W For Car

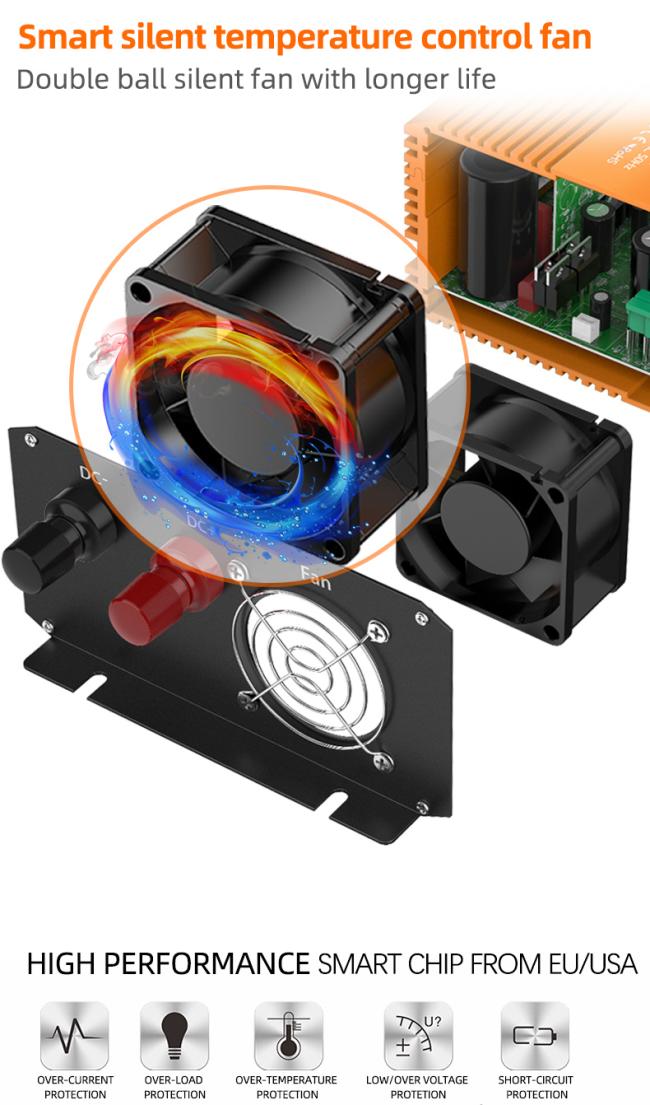

The fan is smart silent temperature control fan.
The double ball silent fan with longer life.
Products Specification:
| Model | SGPE600-121 | SGPE600-122 | SGPE600-241 | SGPE600-242 | SGPE600-481 | SGPE600-482 |
| Rated Power | 600W | |||||
| Surge Power | 1200W(few seconds) | |||||
| Input Voltage | 12VDC | 24VDC | 48VDC | |||
| Output Voltage | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% |
| USB Port | 5V 0.5A | |||||
| Frequency | 50Hz±3 or 60Hz±3 | |||||
| Output Waveform | Pure Sine Wave | |||||
| Soft Start | YES | |||||
| AC Regulation | THD<3%(Linear Load) | |||||
| Output Efficiency | 94% MAX | |||||
| No Load Current | 0.6A | 0.3A | 0.1A | |||
| DC Voltage Range | 10-15.5V | 20-31V | 40-61V | |||
| Low Voltage Alarm | 10.5±0.5V | 21±0.5V | 42±1V | |||
| Low Voltage Shut Down | 10±0.5V | 20±0.5V | 40±1V | |||
| Low Voltage Recovery | 13±0.5V | 24±0.5V | 48±1V | |||
| Over Voltage Shut Down | 15.5±0.5V | 31±0.5V | 61±1V | |||
| Over Voltage Recovery | 14.8V±0.5V | 29V±0.5V | 59V±1V | |||
| Cooling Way | Intelligent Cooling Fan | |||||
| Protection | Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit | |||||
| Working Temperature | -10ºC - +50ºC | |||||
| Net Dimension | 20.2*15*8cm (L*W*H) | |||||
| Meas./Ctn | 63*34*38.5cm / 10pcs | |||||
| N.W./Unit | 2.0KG | |||||
| G.W./Ctn | 24KGS | |||||
| Packing | box | |||||
| Warranty | 2 Years | |||||
