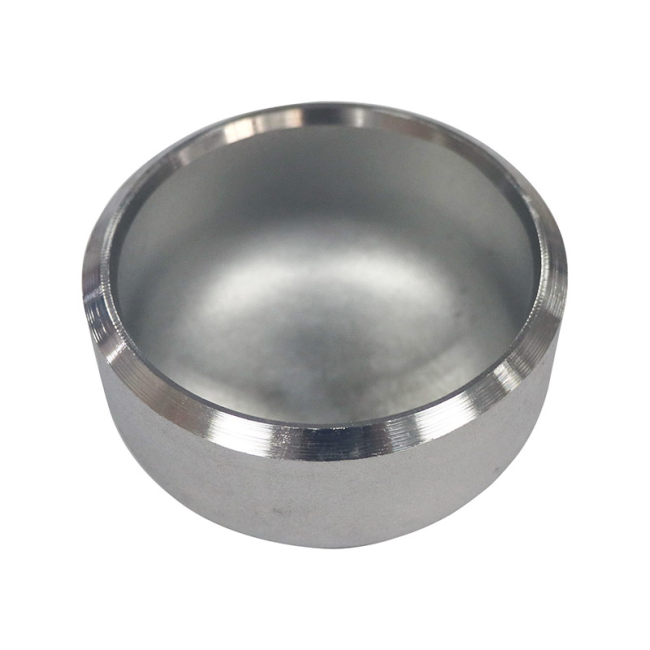

ASME B16.9 SCH 80 Buttweld Stainless Steel Pipe End Cap
ASME B16.9 SCH 80 Buttweld Stainless Steel Pipe End Cap
Product Description
★Standards : ASME / ANSI - B 16.9, ASTM A403 - ASME SA403, ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
★Size : 1/2" (15 NB) to 48" (1200NB)
★Wall Thickness : 2-40 mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
★Type : Seamless / ERW / Welded / Fabricated
★Form : Pipe Caps, End Caps, Pipe End Caps
★ASME / ANSI B16.9 Pipe End Caps Material & Grades :
★Stainless Steel Pipe End Caps :
ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306,DIN 1.4401, DIN 1.4404
Duplex & Super Duplex Steel Pipe End Caps :
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462
Carbon Steel Pipe End Caps :
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Alloy Steel Pipe End Caps :
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Product Parameters
| Nominal Pipe Size | Outside Diameter | Inside Diameter | Wall Thickness | Length | Pipe Schedule | Weight Pounds |
| 1/2 | 0.84 | 0.622 | 0.109 | 1 | 40 | 0.08 |
| 3/4 | 1.05 | 0.824 | 0.113 | 1.25 | 40 | 0.14 |
| 1 | 1.32 | 1.049 | 0.133 | 1.5 | 40 | 0.21 |
| 1 1/4 | 1.66 | 1.38 | 0.14 | 1.5 | 40 | 0.33 |
| 1 1/2 | 1.9 | 1.61 | 0.145 | 1.5 | 40 | 0.54 |
| 2 | 2.38 | 2.067 | 0.154 | 1.5 | 40 | 0.8 |
| 2 1/2 | 2.88 | 2.469 | 0.203 | 1.5 | 40 | 1 |
| 3 | 3.5 | 3.068 | 0.216 | 2 | 40 | 1.7 |
| 3 1/2 | 4 | 3.548 | 0.226 | 2.5 | 40 | 2.3 |
| 4 | 4.5 | 4.026 | 0.237 | 2.5 | 40 | 2.8 |
| 5 | 5.56 | 5.047 | 0.258 | 3 | 40 | 4.6 |
| 6 | 6.62 | 6.065 | 0.28 | 3.5 | 40 | 6.9 |
| 8 | 8.62 | 7.981 | 0.322 | 4 | 40 | 11.8 |
| 10 | 10.75 | 10.02 | 0.365 | 5 | 40 | 20.8 |
| 12 | 12.75 | 12 | 0.375 | 6 | * | 30.3 |
| 14 | 14 | 13.25 | 0.375 | 6.5 | 30 | 36.5 |
| 16 | 16 | 15.25 | 0.375 | 7 | 30 | 43.5 |
| 18 | 18 | 17.25 | 0.375 | 8 | * | 57 |
| 20 | 20 | 19.25 | 0.375 | 9 | 20 | 75.7 |
| 24 | 24 | 23.25 | 0.375 | 10.5 | 20 | 101 |
| 30 | 30 | 29.24 | 0.38 | 10.5 | * | 137 |
| 36 | 36 | 35.24 | 0.38 | 10.5 | * | 175 |
| 42 | 42 | 41.24 | 0.38 | 12 | * | 229 |
| 48 | 48 | 47.24 | 0.38 | 13.5 | * | 350 |
Detailed photos
Certificate
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory. Shentian is a Group Co.,Ltd.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Mengcun County Cangzhou City, China. And 120 kilometer from Tianjin International air port. Warmly welcome you to visit us!
3.Q:Can I get some samples?
A: Yes,we are honored to supply you free samples.
4.Q:How does your factory do regarding quality control?
A: "Quality today, market tomorrow" Inspection and trace back No. We serious control the quality from raw material to finished pipes. So that that we can 100% sure our goods is qualified.
5. Q: Price high ?
A: Our price is workable. We had tried use auto equipment to save Workers cost. and control other costs.
6. Q: After sales service.
A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.
