Petroleum Industry ANSI B16.5 PN16 Slip On Flange
ANSI B16.5 1/2" 304/L Pn16 Carbon Steel Stainless Steel Forged RF Slip On Flange
Slip on flange, also called SO flange. It's a kind of flange slides over the pipe with internal design is slightly larger than the pipe. Since the inner diameter of the flange is slightly larger than the outer diameter of the pipe, the SO flange can be directly connected to equipment or pipe by fillet weld at the top and bottom of the flange. It is used to insert the pipe into the inner hole of the flange.
Specifications Of ANSI B16.5 1/2" 304/L Pn16 Carbon Steel Stainless Steel Forged RF Slip On Flange
|
Slip On Flange Pressure |
Class 150 to Class 2500 |
|
Slip On Flange Coating |
Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
|
Slip On Flange Type |
Forged |
|
Slip On Flange Standards |
ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Inspection |
EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
|
Slip On Flange Face Type |
RF,FF,RTJ |
| Test |
Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |

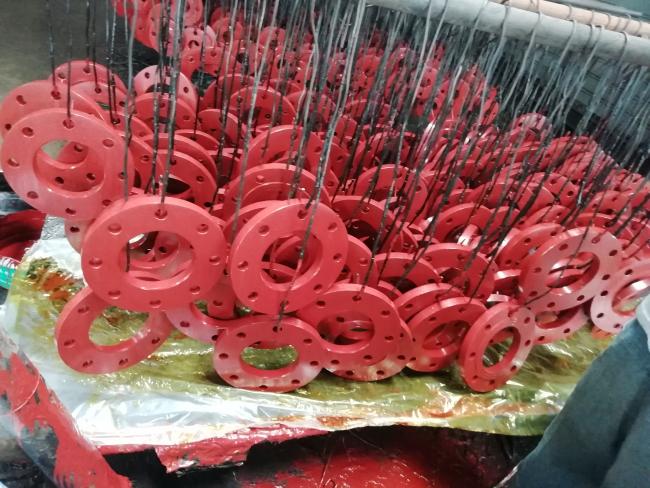

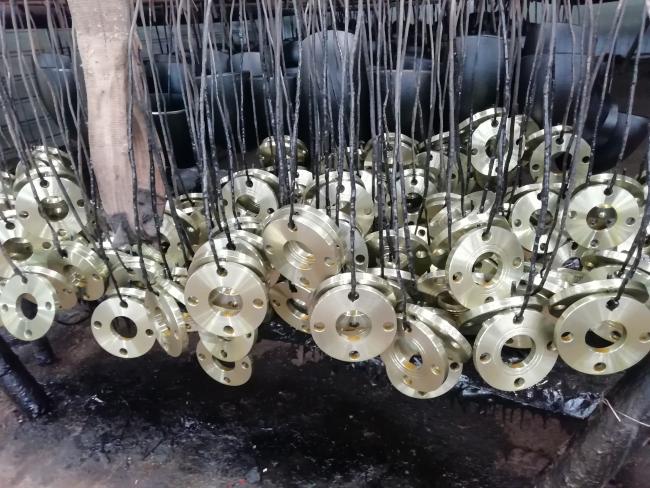

Products Show
